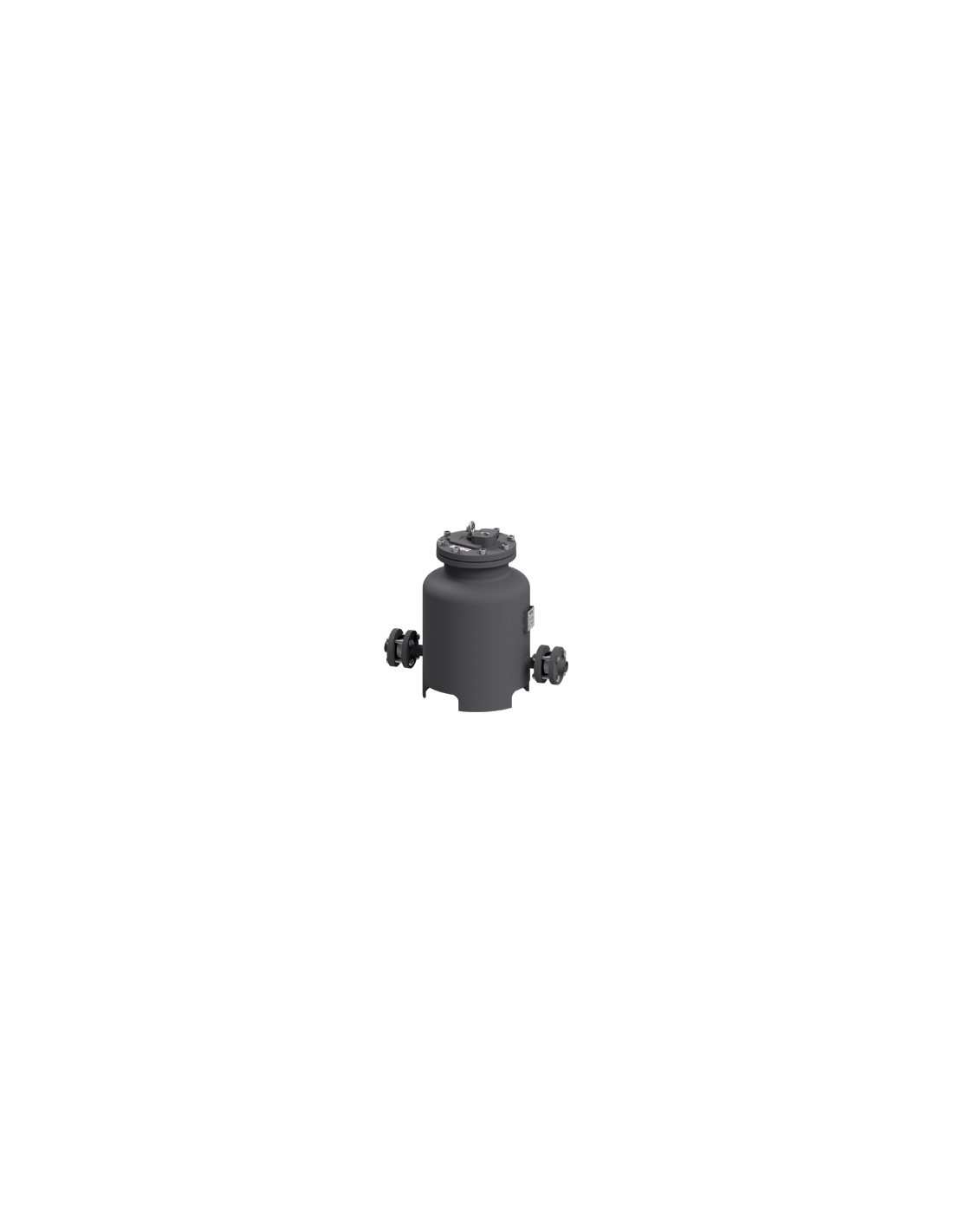

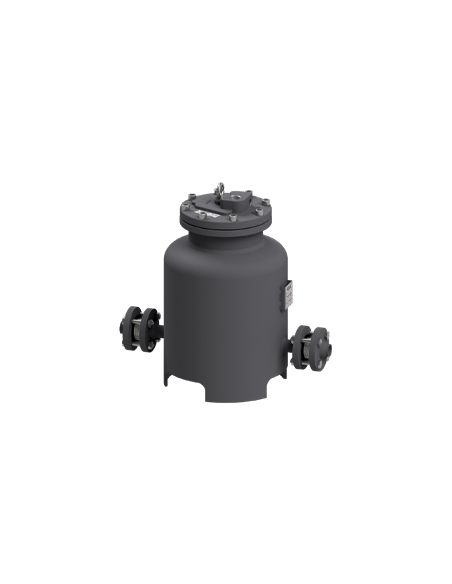

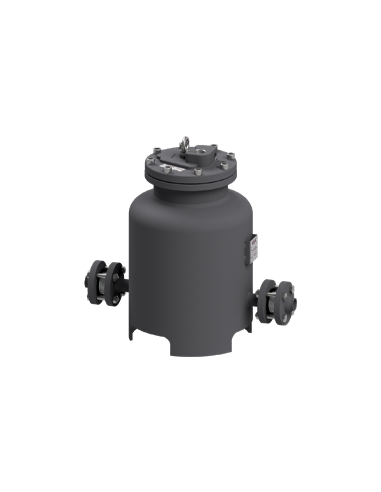

The Pump Trap - POPS-LC by ADCA is a robust and efficient solution designed for steam and condensate systems. Constructed from durable carbon steel and stainless steel, it ensures longevity and reliability. The unit offers versatile connection options, including Flanged EN 1092-1 PN 16, Flanged ASME B16.5 Class 150, and Female threaded ISO 7 Rp, making it adaptable to various system requirements. It operates effectively under a maximum motive pressure of 10 bar and can withstand temperatures up to 185 ºC. With a flow rate capacity of up to 2195 kg/h, the Pump Trap - POPS-LC is capable of handling substantial loads, making it ideal for demanding industrial applications.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Carbon Steel
  • Stainless Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

MATERIAL

Carbon steel and stainless steel

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150
Female threaded ISO 7 Rp

MAX. MOTIVE PRESSURE

10 bar

MAX. OPERATING TEMPERATURE

185 ºC

FLOW RATE CAPACITY

Up to 2195 kg/h
