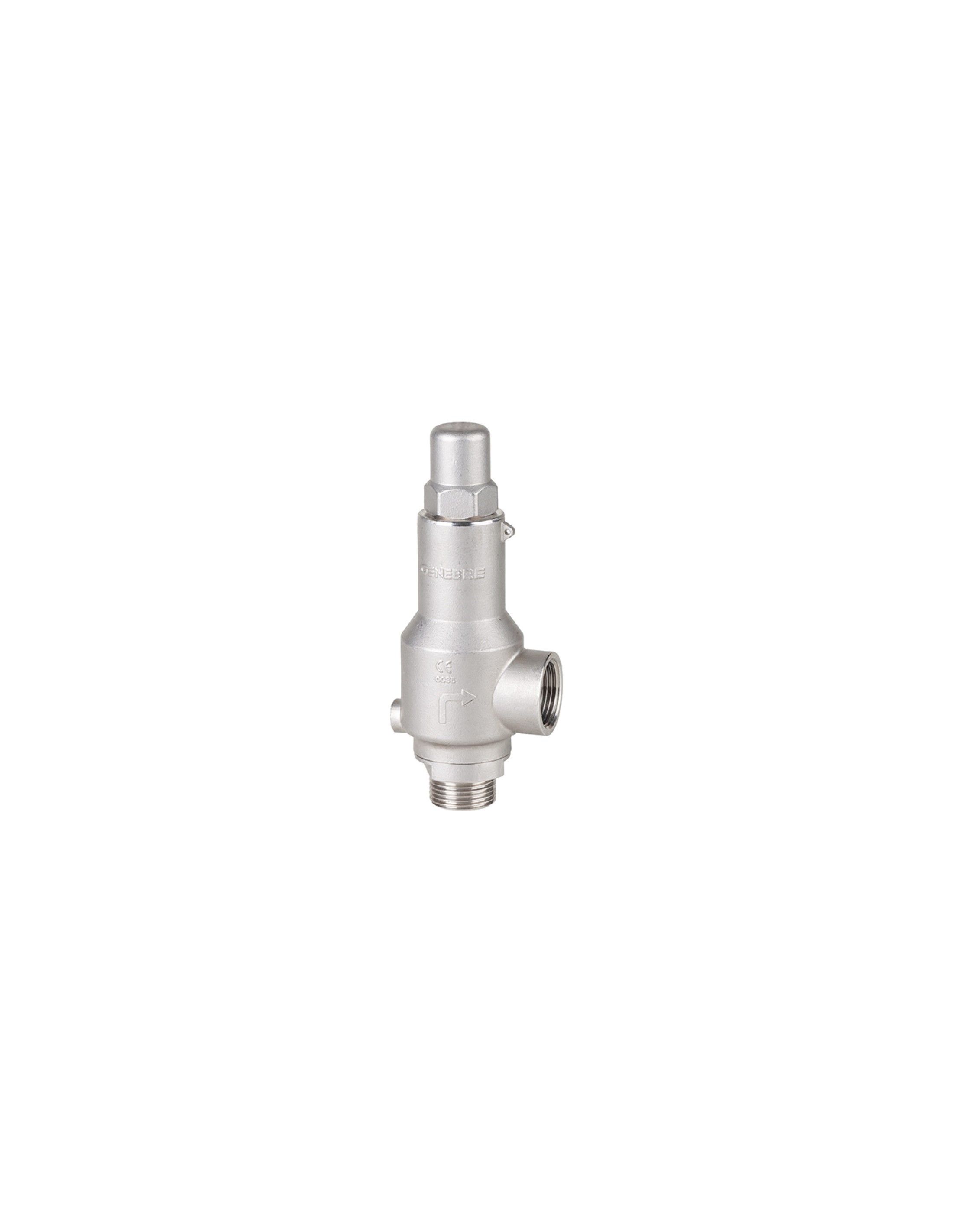

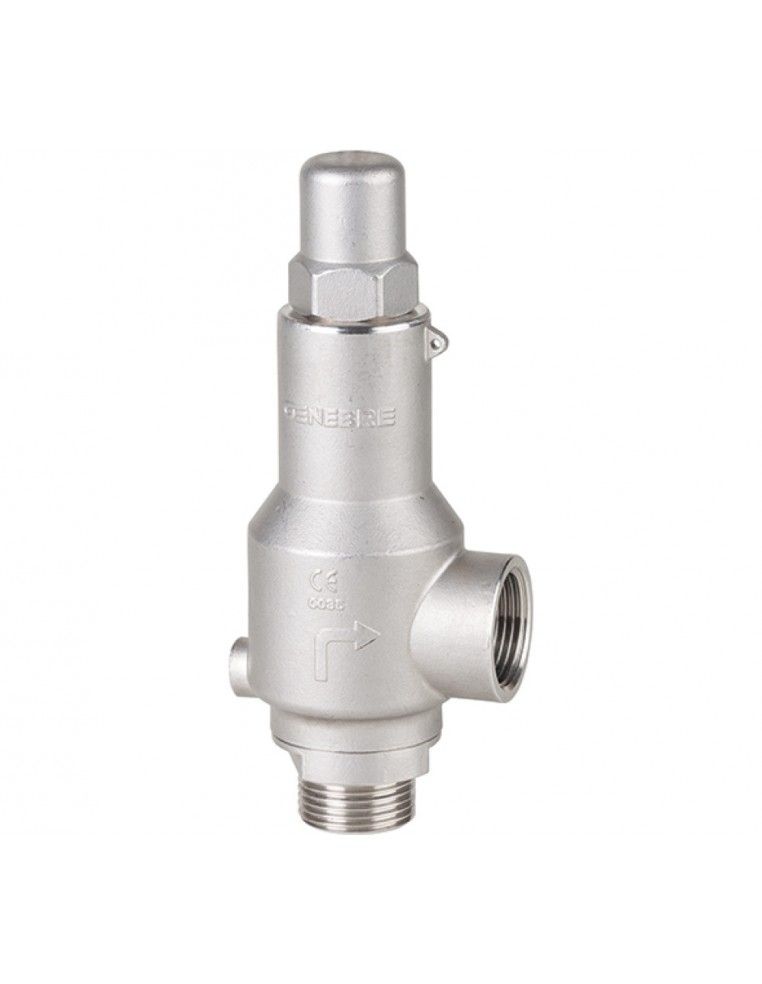

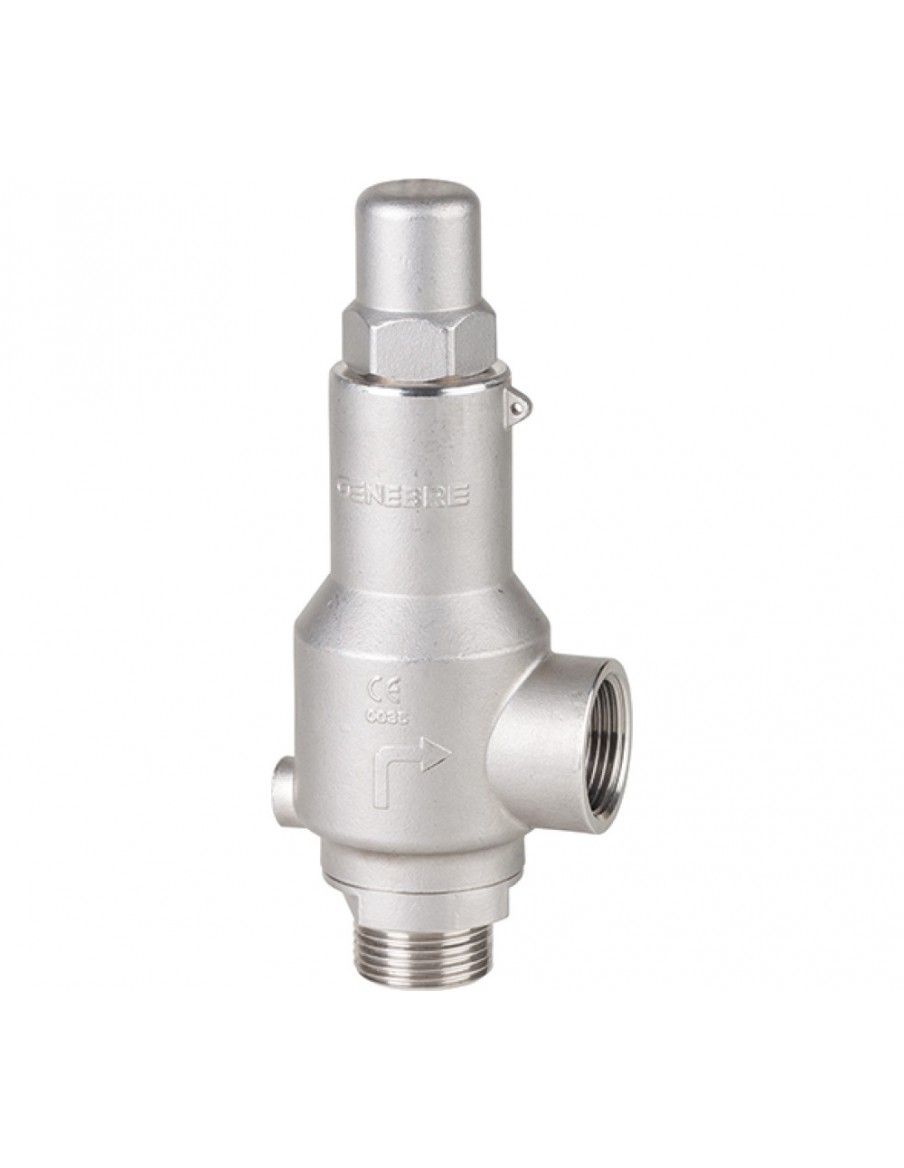

The Safety Valves & Pressure Relief Valves ASME - 2258N by Genebre are designed to provide reliable overpressure protection in various industrial applications. These valves are manufactured in compliance with ASME standards, ensuring high quality and performance. They are engineered to automatically release pressure when it exceeds a predetermined limit, thus safeguarding equipment and systems from potential damage. The 2258N model is known for its durability, precision, and ease of maintenance, making it an ideal choice for ensuring safety and operational efficiency in pressure management systems.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 40

Pattern (Options)

Angle

Datasheet and documents

Description

NPT threaded ends acc./ ISO 228/1 M-F, available with NPT threaded (2258N). Construction: Stainless steel 1.4408 (CF8M). PTFE sealing. Set pressure between 0,5 barg and 25 barg. Max. working pressure 25 bar. Working temperature -20ºC +200ºC.

Reference: 2258N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2258N 04 06 11	PRESSURE RELIEF VALVE 1/2" G x 1" G (0,5-6 BAR) NPT	1	1.7	1/1
2258N 04 06 12	V. DE ALIVIO 1/2" x 1" (6,1-25 BAR) NPT	1	1.7	1/1
2258N 05 06 12	V. DE ALIVIO 3/4" x 1" (6,1-25 BAR) NPT	1	1.86	1/1
2258N 06 06 11	PRESSURE RELIEF VALVE 1" G x 1" G (0,5-6 BAR) NPT	1	1.9	1/1
2258N 06 06 12	V. DE ALIVIO 1" x 1" (6,1-25 BAR) NPT	1	1.35	1/1
