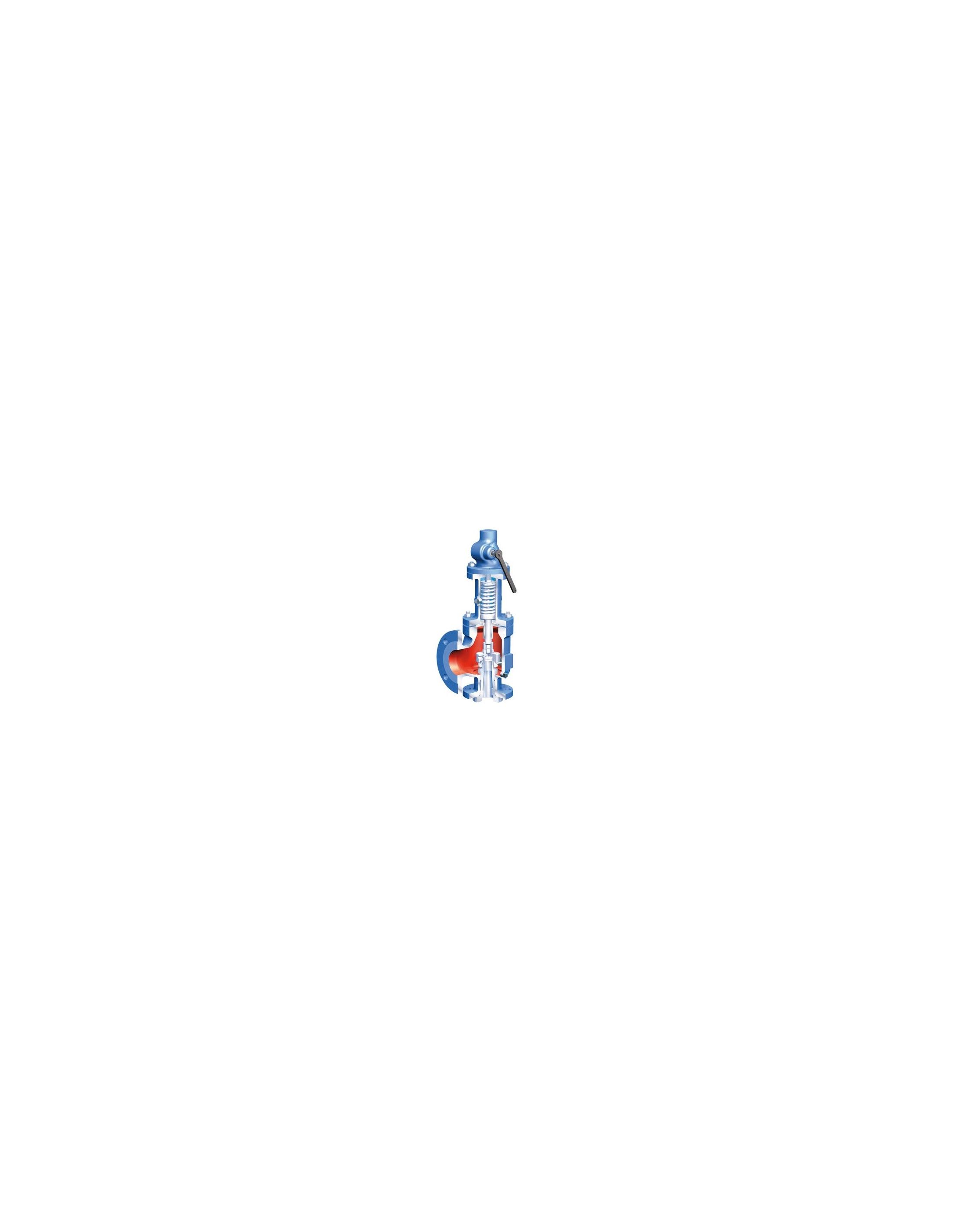

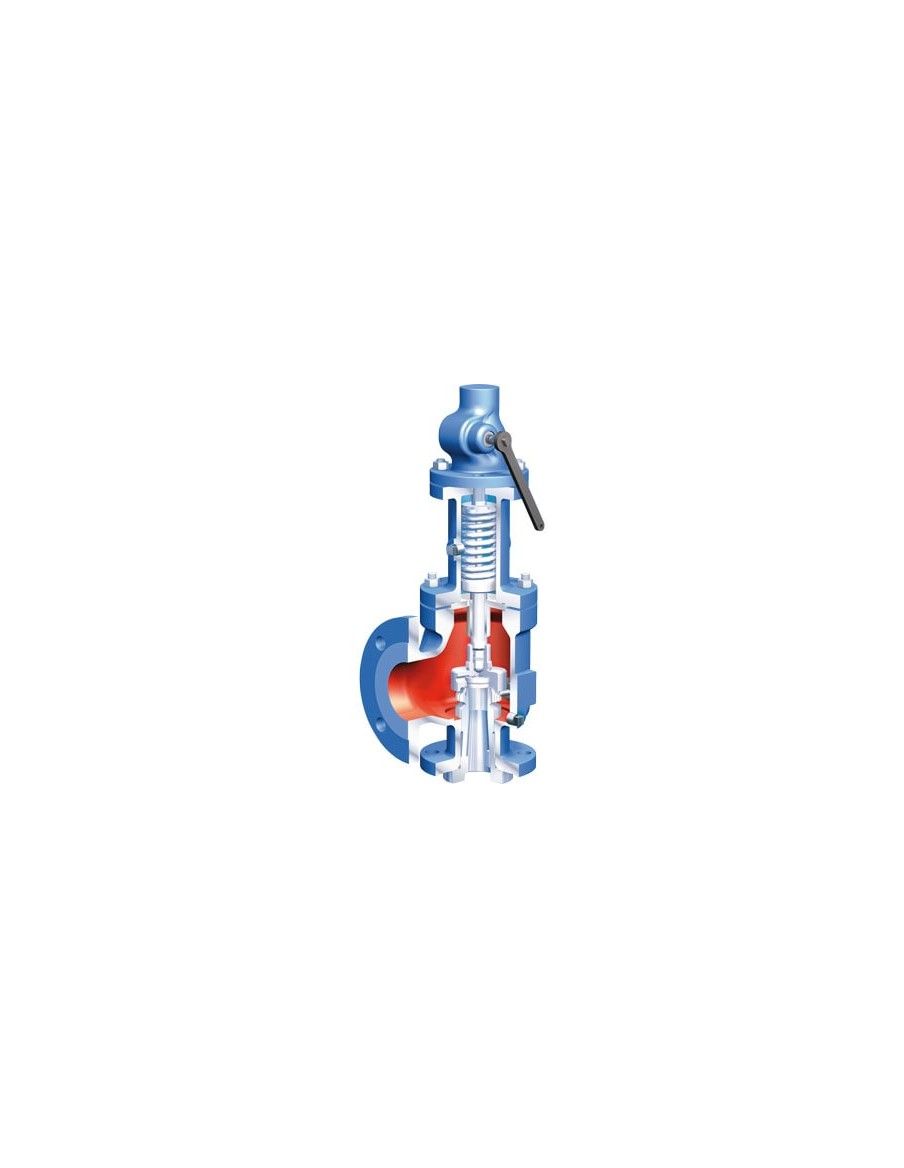

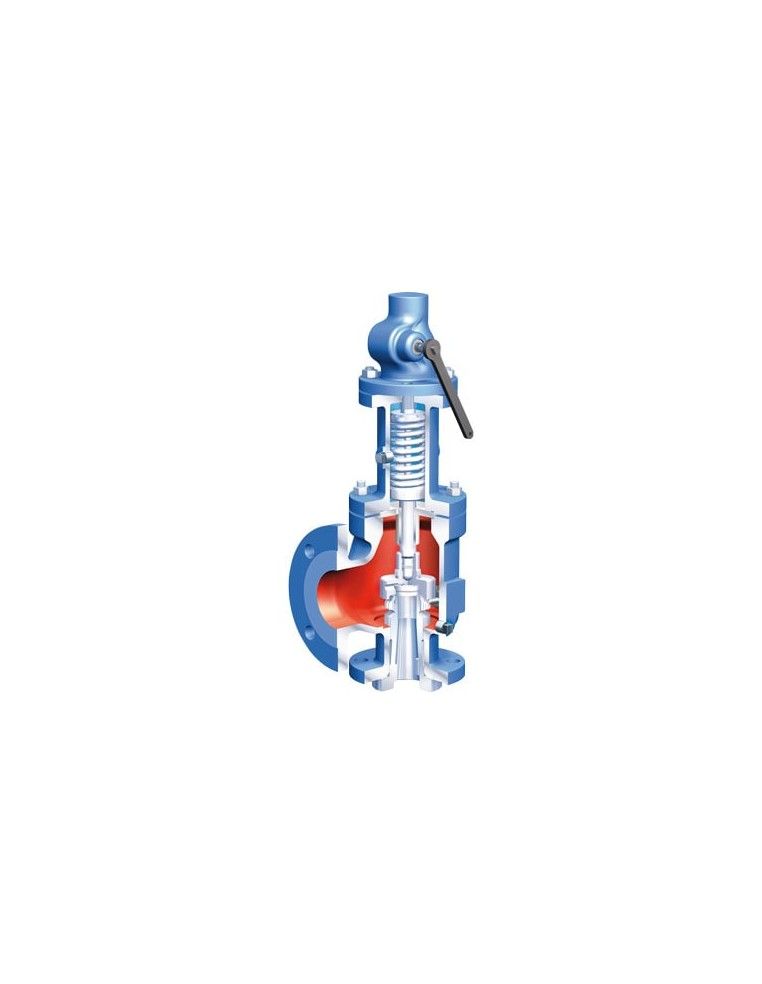

The ARI-REYCO® R Series Safety Relief Valves, compliant with API526 standards, are designed for reliable pressure relief in various systems. Key features include a direct-loaded spring for dependable operation, a wear-resistant seat/disc for enhanced durability, and precision disc alignment for smooth performance. The valves offer soft seal disc and stainless steel bellow options, catering to diverse applications. They are available in multiple nominal pressures and material options, such as SA216WCC, SA217WC6, and SA351CF8M. Technical specifications highlight material options including carbon and stainless steel, with spring materials like chrome vanadium and Inconel. The valves operate within a temperature range of -20°F to 1000°F, depending on the material and application, and are available in sizes from 1" x 2" to 8" x 10". They feature standard ANSI flange connections (ASME B16.5). The series includes models like Fig. 971 (closed lifting device), Fig. 973 (gastight cap), and Fig. 974 (open lifting device). These valves are suitable for pressure relief in systems involving neutral gases, vapors, and liquids, and are designed for applications such as steam, air, and water where overpressure protection is essential. Valve sizing is based on factors like mass or volume flow, temperature, set gauge pressure, and back pressure. The MyValve® Sizing Program is available for precise valve selection tailored to specific applications.
Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • SA216WCC
  • SA217WC6
  • SA351CF8M
Pressure Rating (Options)
  • 150 lbs
  • 300 lbs
  • 600 lbs
  • 900 lbs
  • 1500 lbs
  • 2500 lbs

Datasheet and documents

Description

Key Features of ARI-REYCO® R Series Safety Relief Valves:

  • Direct-loaded spring for reliable operation.
  • Wear-resistant seat/disc for durability.
  • Precision disc alignment and guide ensure smooth performance.
  • Soft seal disc and stainless steel bellow options for various applications.
  • Available in multiple nominal pressure and material options (e.g., SA216WCC, SA217WC6, SA351CF8M).


Technical Specifications:

  • Material Options:
    • SA216WCC, SA217WC6, SA351CF8M (carbon steel, stainless steel).
    • Spring Materials: Chrome vanadium, Inconel, and SA313Gr.316.
  • Temperature Range: From -20°F to 1000°F, depending on material and application.
  • Valve Sizes: Available from 1" x 2" to 8" x 10".
  • Flange Connections: Standard ANSI flanges (ASME B16.5).


Models:

  • Fig. 971 (closed lifting device).
  • Fig. 973 (gastight cap).
  • Fig. 974 (open lifting device).


Applications:

  • Used for pressure relief in systems involving neutral gases, vapors, and liquids.
  • The valves are designed for systems like steam, air, and water where overpressure protection is required.


Sizing:

  • The valve sizing is based on the mass flow or volume flow, temperature, set gauge pressure, and back pressure.
  • The MyValve® Sizing Program is available for accurate valve selection based on your specific application.

Tests and Certification

DGRL 2014/68/EU (PED Pressure Equipment Directive)
ASME Code Section VIII-Division 1 - UV-stamp, NB-stamp (USA)
VdTÜV (Germany)
