DRV 6-series: Pressure reducers with flanges
The large flanged pressure reducing valves of the 600 series offer very high flow rates and are preferably used for pressure reduction of water and other neutral, non-sticky liquids. They can also be used for high flow rates of compressed air, nitrogen and other neutral, non-flammable gases. They have inlet pressure compensation (fluctuating inlet pressures have no influence on the outlet pressure), the overall lengths of the housings comply with DIN EN 558-1, the flange connections with DIN EN 1092-3 PN16 or PN25 (depending on the model). The bodies of these large valves are also made entirely of red-bronze - this makes them so robust, corrosion-free and suitable not only for precious drinking water but for almost all media. There is no need for the elaborate coatings normally found on such pressure regulators made of inferior housing material. And a coating that does not exist cannot be damaged either.

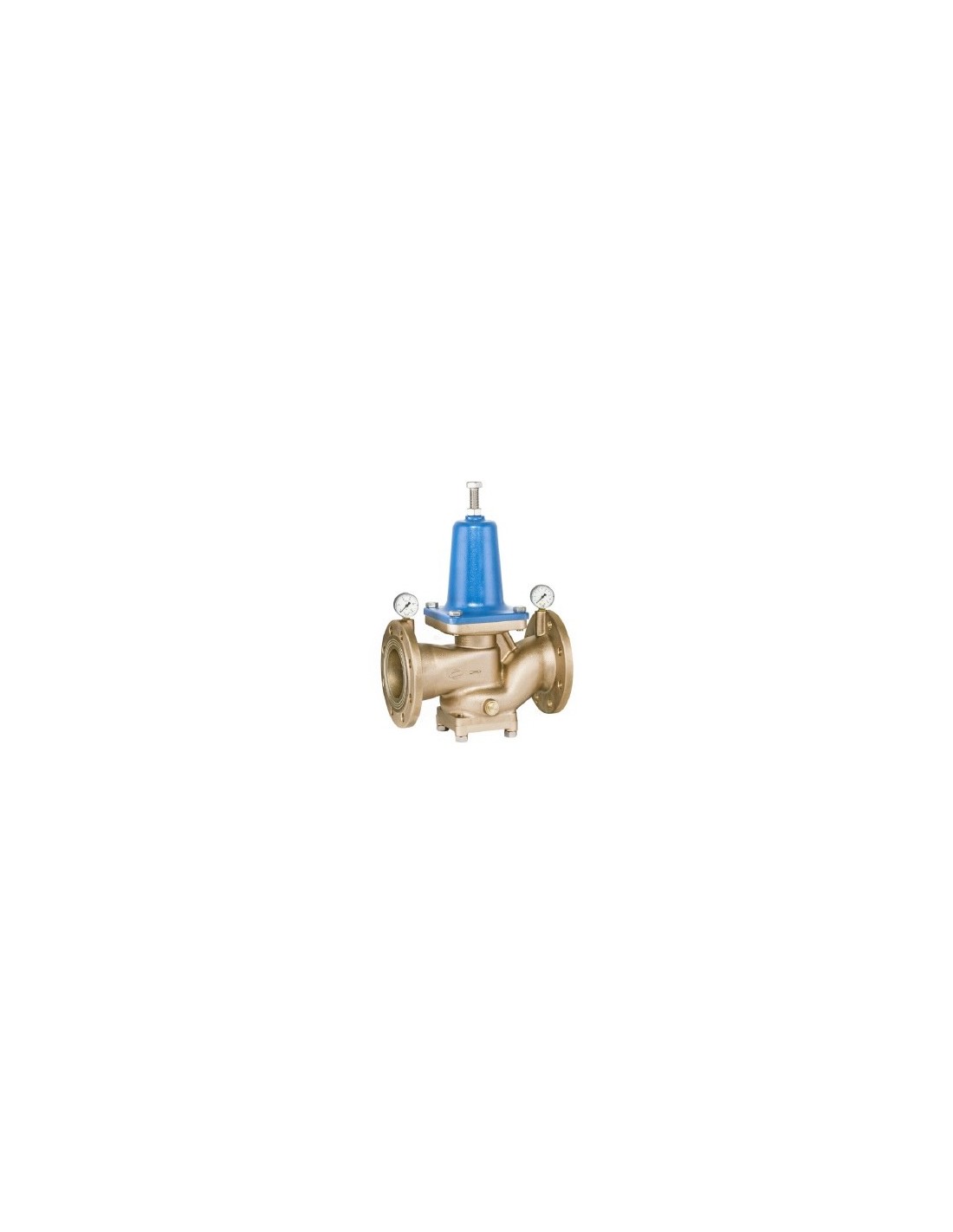

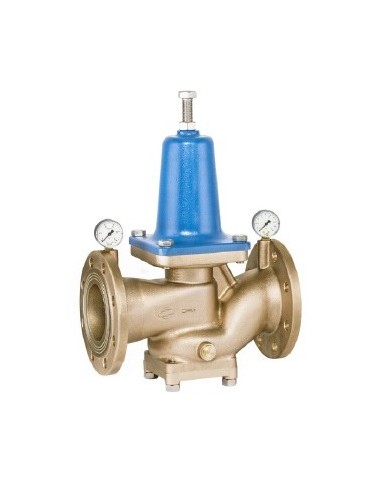

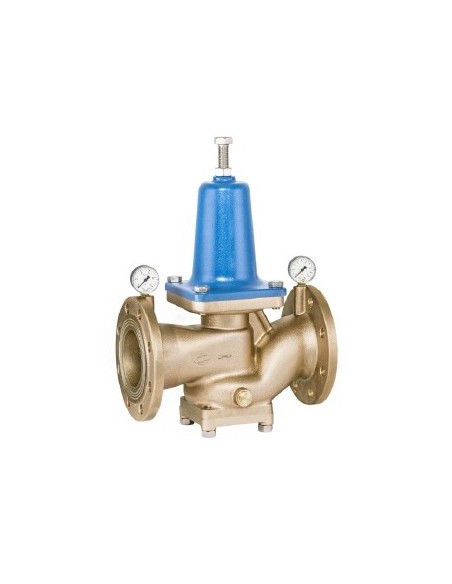

DRV 624
Pressure reducing valves of the series are piston-controlled, spring-loaded pressure reducing valves and have an inlet pressure compensation. All sizes are available with flanges according to DIN, ANSI or JIS.
Nominal size DN 65 up to DN 150
Inlet pressure up to 25 bar
Outlet pressure from 4 up to 12 bar
Temperature range -15°C to 100°C

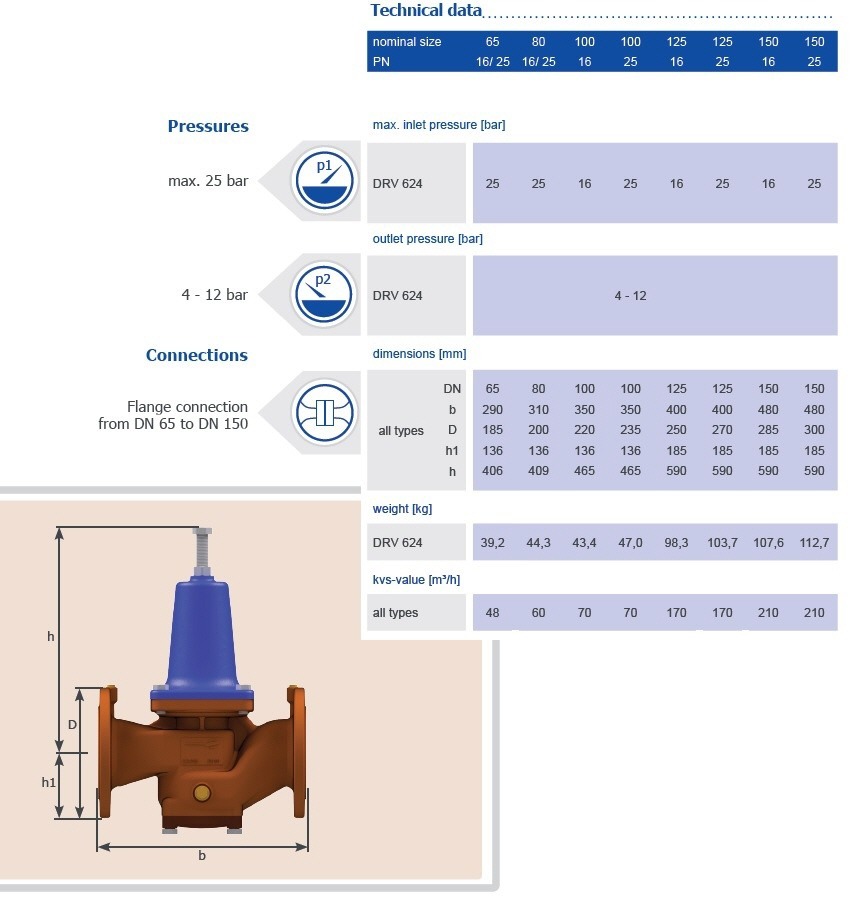

Technical data
CE-certification according to the European Pressure Equipment Directive is mandatory for numerous products and delivery areas. Other certificates, however, are certificates of individual quality, such as DVGW and DIN EN ISO 9001, which stands for the internal quality management system with its extensive functional and performance checks. The particularly strict regulations of the national rules and regulations guarantee the highest possible safety - especially when it comes to the reliability in your plant.
