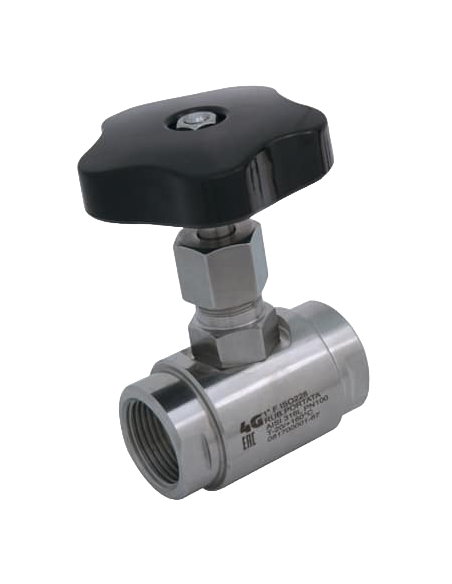

The Needle Valve RATE ISO 228 F - 678001 | 4G Ghidini is a precision control valve designed for regulating flow rates. It features a handwheel drive and ISO 228 female/female thread connections. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it is available in sizes ranging from 1/2” to 1”1/2. The valve operates efficiently within a temperature range of -20°C to +160°C and boasts a polished outer finish for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. certification according to CE 1935/2004.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 100

Datasheet and documents

Description

Rate valve

Drive: Handwheel

Connection: ISO 228 female/female thread

Material: Aisi 316L (1.4404)

Measure: from 1/2” to 1”1/2

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
