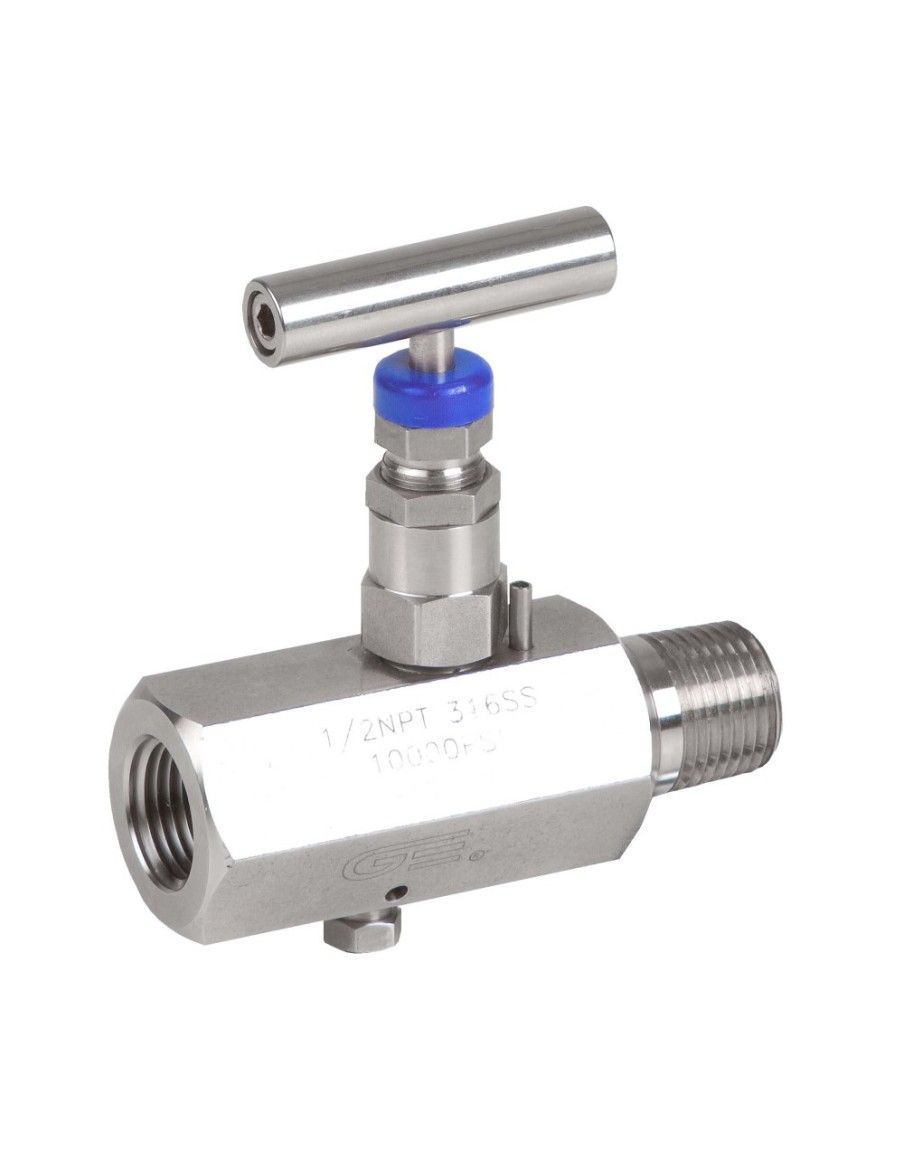

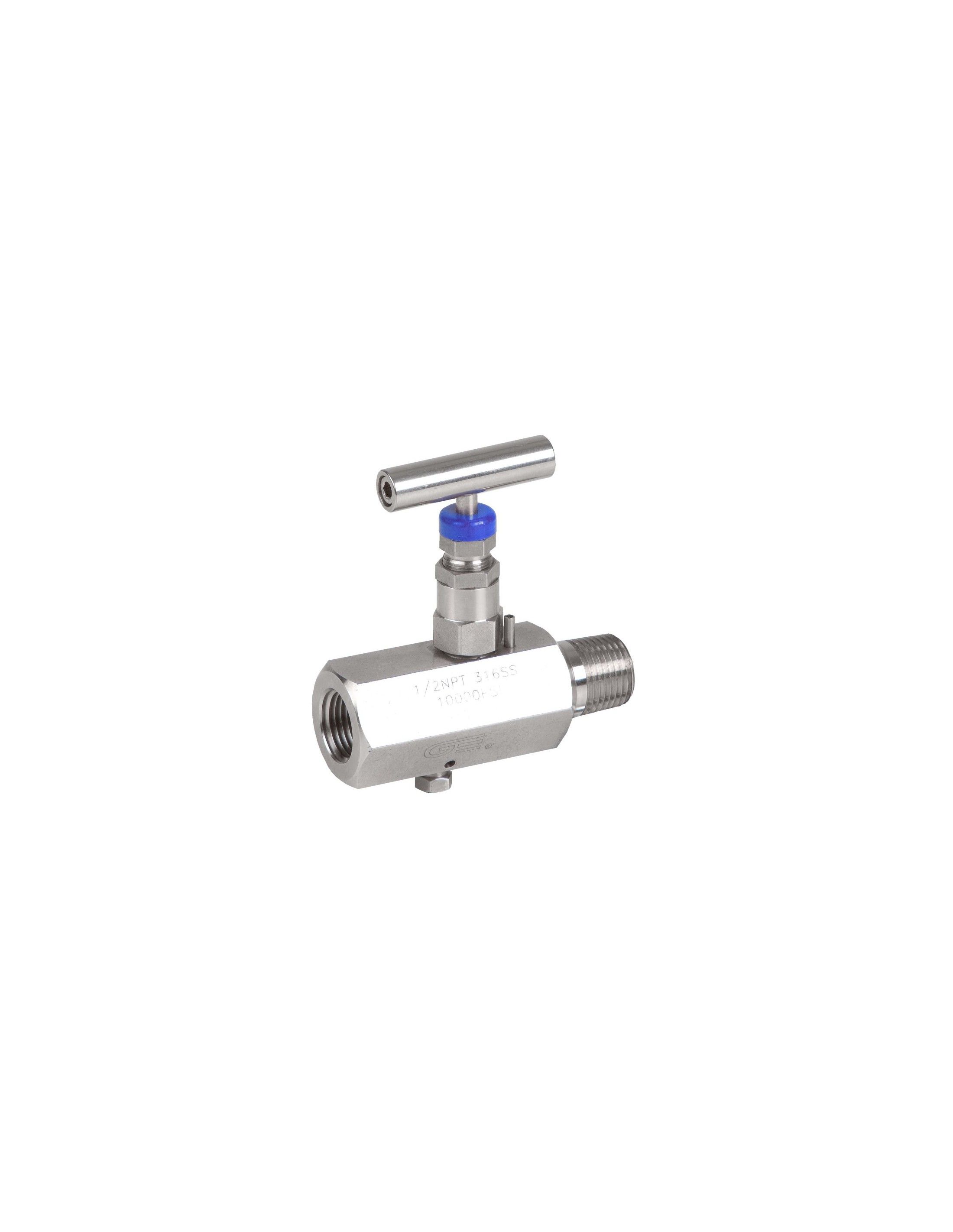

The Needle Valve 6000 lbs with Vent Port NPT Thread - 2226N by Genebre is a high-pressure valve designed for precise flow control in various industrial applications. It features a robust construction capable of handling pressures up to 6000 lbs, ensuring durability and reliability. The valve includes a vent port for safe pressure release and is equipped with NPT threading for secure and easy installation. Ideal for use in systems requiring accurate flow regulation, this needle valve is a versatile component in fluid control systems.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 413

Datasheet and documents

Description

Construction: Stainless steel A182 F316 / Needle stainless steel A182 F316 + Heat treatment. NPT thread. Stem packing ptfe. Max. working pressure 410 bar. Working temperature -54ºC to 250ºC.

-65ºF + 482ºF

Reference: 2226N

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2226N 02NPT NEEDLE V.6000LBS VENT P1/410.53912/36
2226N 04NPT NEEDLE V.6000LBS VENT P1/210.56812/36

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY

calidad1.png AENOR - Homologación y Marcado N de AENOR para la línea de válvulas de gas.
OLIVER RODÉS Water Quality - Certificados de agua potable, confirmando el cumplimiento de los criterios sanitarios de la calidad del agua para el conusmo humano RD 140/2003 de 07 de febrero (legislación española) y Directiva (UE) 2020/2184 del Parlamento Europeo y del Consejo de 16 de diciembre de 2020, relativa a la calidad de las aguas destinadas al consumo humano por el Laboratorio Oliver Rodés.
HOMOLOGACIÓN CE - Homologación CE y otras específicas para mercados como Bielorrusia, Chile, Polonia, Rusia, Ucrania, Singapur y Arabia Saudí.
NORMA UNE-EN-ISO 9001 - Este sistema está certificado de acuerdo a la norma UNE-EN-ISO 9001: 2015, por parte del prestigioso organismo certificador alemán TÜV Rheinland..

CERTIFICADO ISO 9001

CERTIFICADO ISO 14001

CERTIFICADO CE

CERTIFICADO HIGIENICO RUSIA

CERTIFICADO TÉCNICO BIELORRUSIA REF.2830

CERTIFICADO TÉCNICO BIELORRUSIA

CERTIFICADO TÉCNICO UCRANIA

CERTIFICADO POLONIA
