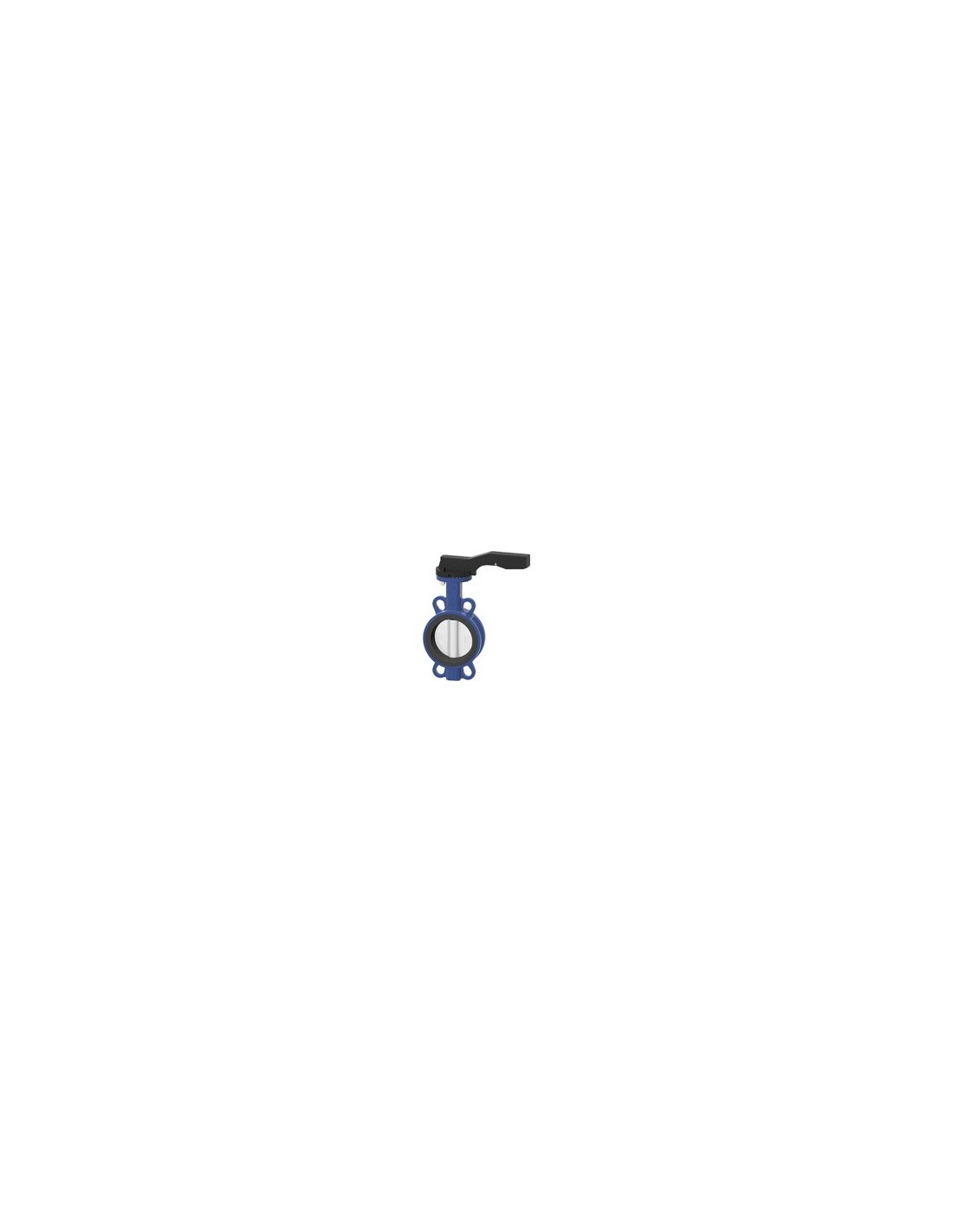

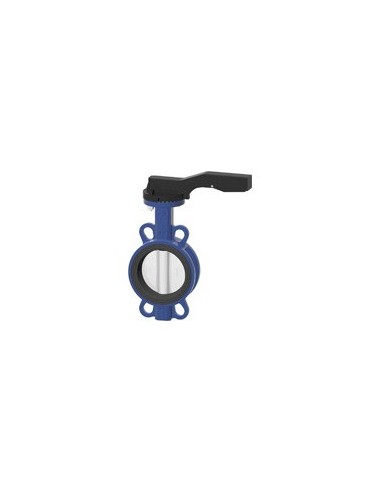

The UNIWAT Fig. VF701 Butterfly Valve by Comeval is a versatile and compact concentric butterfly valve designed for bidirectional isolation with some throttling capabilities. It features a soft seal and is suitable for various applications, including HVAC, water works, gases, lubrication, compressed air, and process industries. The valve is protected with an epoxy coat and can be operated manually via a hand lever, worm gear, or automated with an actuator, thanks to its ISO flange. It offers diverse design combinations with different end connections (wafer type, lug type, or double flanged) and materials, accommodating a nominal size range from DN25 to DN1200 and a design pressure range of PN10-16. The valve is PED 2014/68/EU certified, ensuring compliance with safety standards.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • EN-JS 1030 (GGG40) Ductile Iron
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Concentric butterfly valves, soft seal, bidirectional, for isolation, with certain throttling capability. With ISO flange for easy automation. For use in applications of HVAC, water works, etc. Light and compact. With epoxy coat protection. Operated by hand lever, worm gear or actuator.

Specification of the range:

Diverse design combinations by end connections (wafer type, lug type or double flanged), materials of construction with elastomeric seats, nominal size range (DN25-DN1200), design pressure range (PN10-16), as well as operation style and accessories.

Other typical denominations: Wafer concentric butterfly valves

Applications: Water, HVAC, gases, lubrication, compressed air, process, etc.

Certifications: PED 2014/68/EU

Certificates

Declaration of Conformity

Declaration of Conformity ATEX

WRAS
