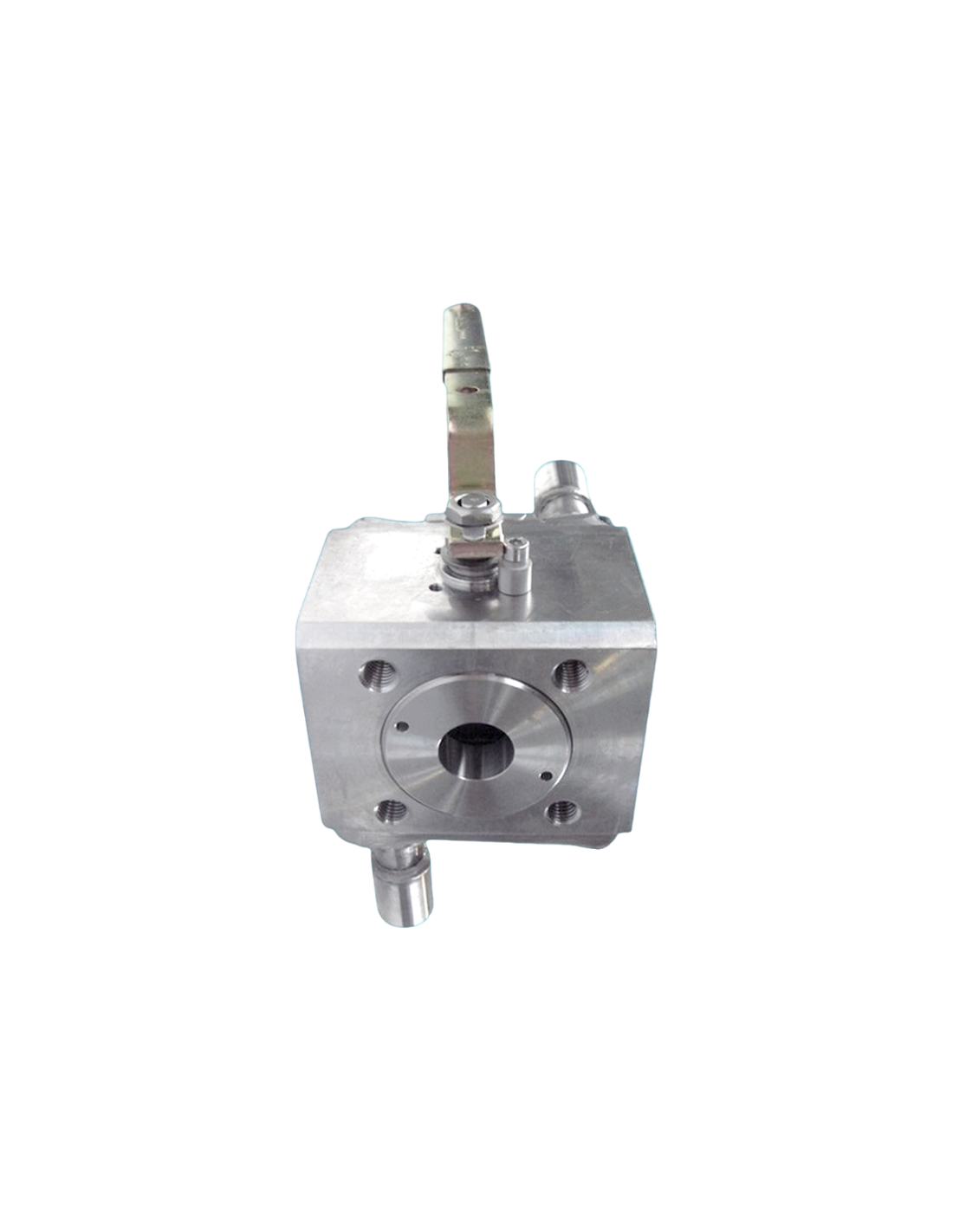

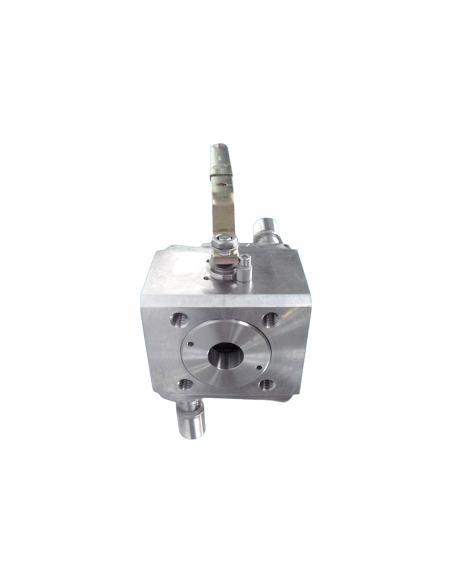

The Ball Valve with Heating Jacket - FZ4 by ADLER is a versatile three-way valve designed for efficient fluid control in various industrial applications. Constructed from durable carbon steel or stainless steel, it features flanged, threaded, or welding ends for easy integration into existing systems. The valve is based on the FZ4 type and adheres to BS 5351 standards, ensuring reliable performance and safety with an anti blow-out proof stem and an antistatic device. It is equipped with a heating jacket capable of withstanding a maximum pressure of 10 bar, making it suitable for temperature-sensitive processes. The carbon steel variants are coated with an epoxy-polyamide layer for enhanced durability. The valve includes a top flange conforming to ISO 5211 standards and undergoes rigorous air testing under water at 100 psi to ensure leak-proof operation. Optional accessories include PTFE or glass-reinforced PTFE half shells, various PTFE seat fillings, stem extensions, and a range of actuators and positioners for enhanced control and automation.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 304L
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve three way with heating jacket made in carbon steel or stainless steel

Flanged, threaded or welding ends

Made from FZ4 ball valve type

Standard productions

maximum pressure of heating jacket 10 bar

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner
