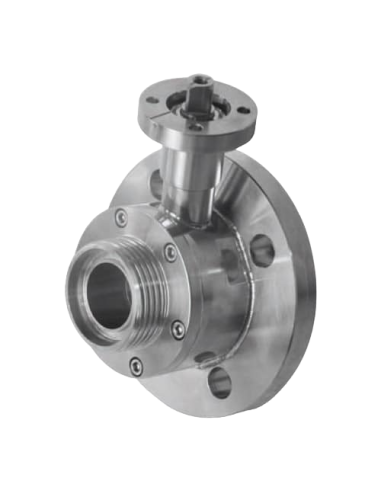

The Ball Valve STD SEALS TANK SIDE FLANGE UNI EN1092 & DIN11851 FEMALE ON OUTPUT SIDE - 153025 by 4G Ghidini is a two-way ball valve designed for tank bottom applications. It features a bent stem bottom with a standard seal and is available with an optional heating jacket. The valve is equipped with an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and is driven by an ISO 5211 – DIN 3337 flange for actuator compatibility. It has a full flow design and is constructed from AISI 316L (1.4404) stainless steel, with sizes ranging from DN40 to DN125. The valve includes modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. It features a polished outer finish and comes with screws for mounting an actuator. Optional features include M.O.C.A. CE 1935/2004 compliance, PTFE with inox seals for higher temperature resistance (-20°C to +200°C), a manual lever kit, and counterflanges for the tank.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
  • DIN 11851
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

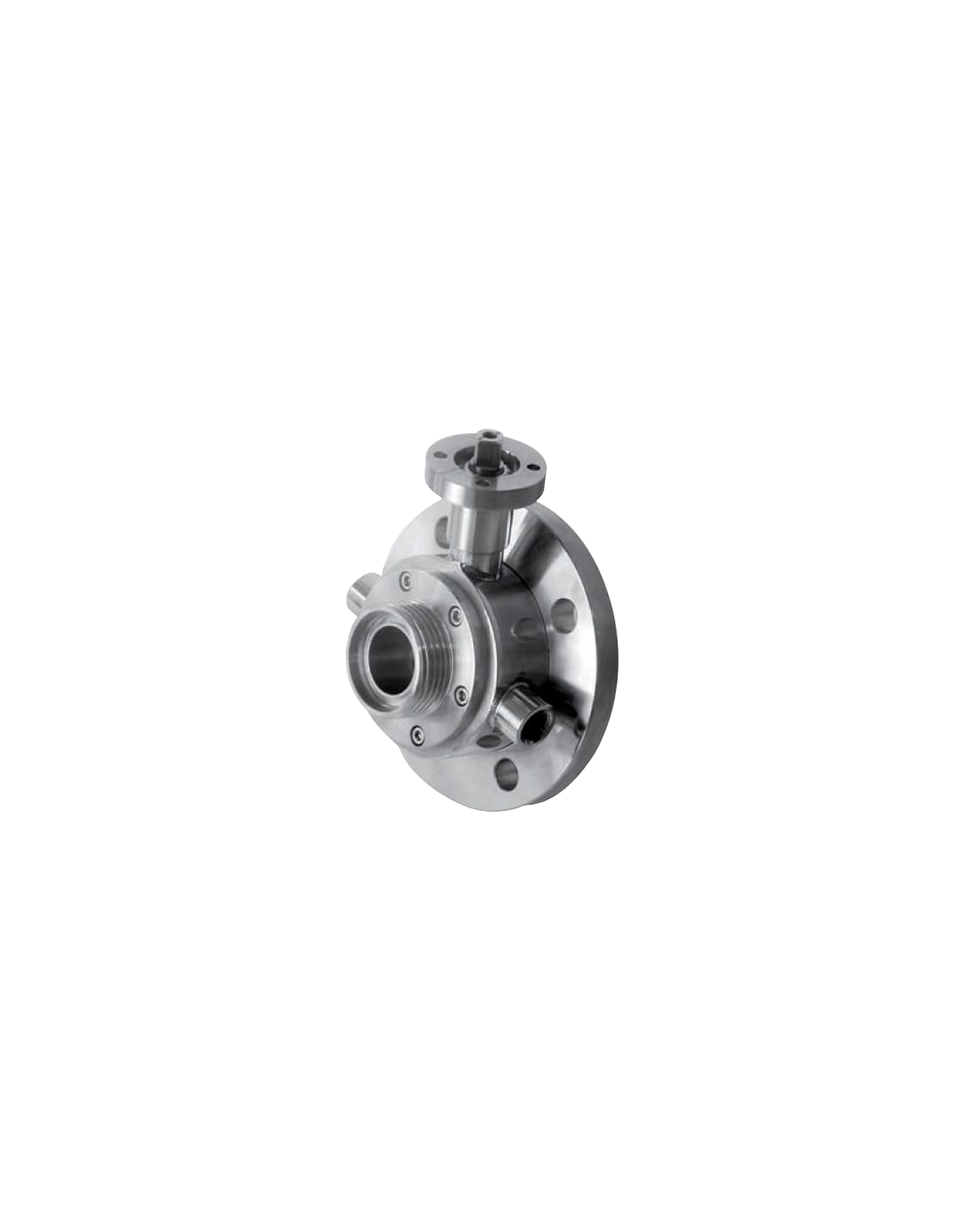

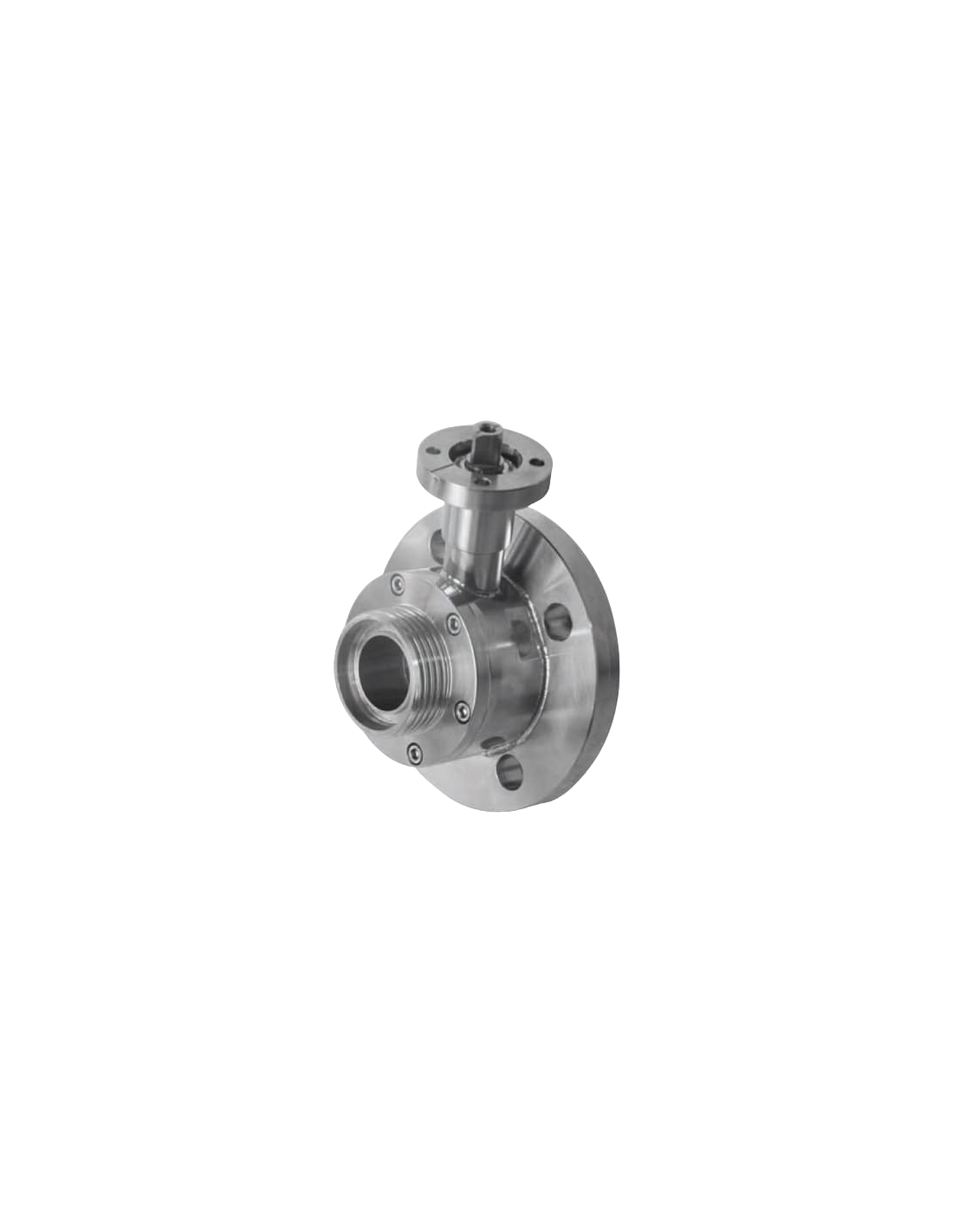

TWO-way ball valve STEM BENT BOTTOM with “STANDARD SEAL” / TWO-way ball valve STEM BENT BOTTOM with “STANDARD SEAL” with HEATING JACKET

Use: Valve for tank bottom

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

Drive: ISO 5211 – DIN 3337 flange for actuator

Connections: Tank side flange fixed UNI EN 1092 and DIN 11851 Female on output side

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN40 to DN125

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with inox -20°C+200°C

• MANUAL with LEVER Kit

• Counterflanges for Tank
