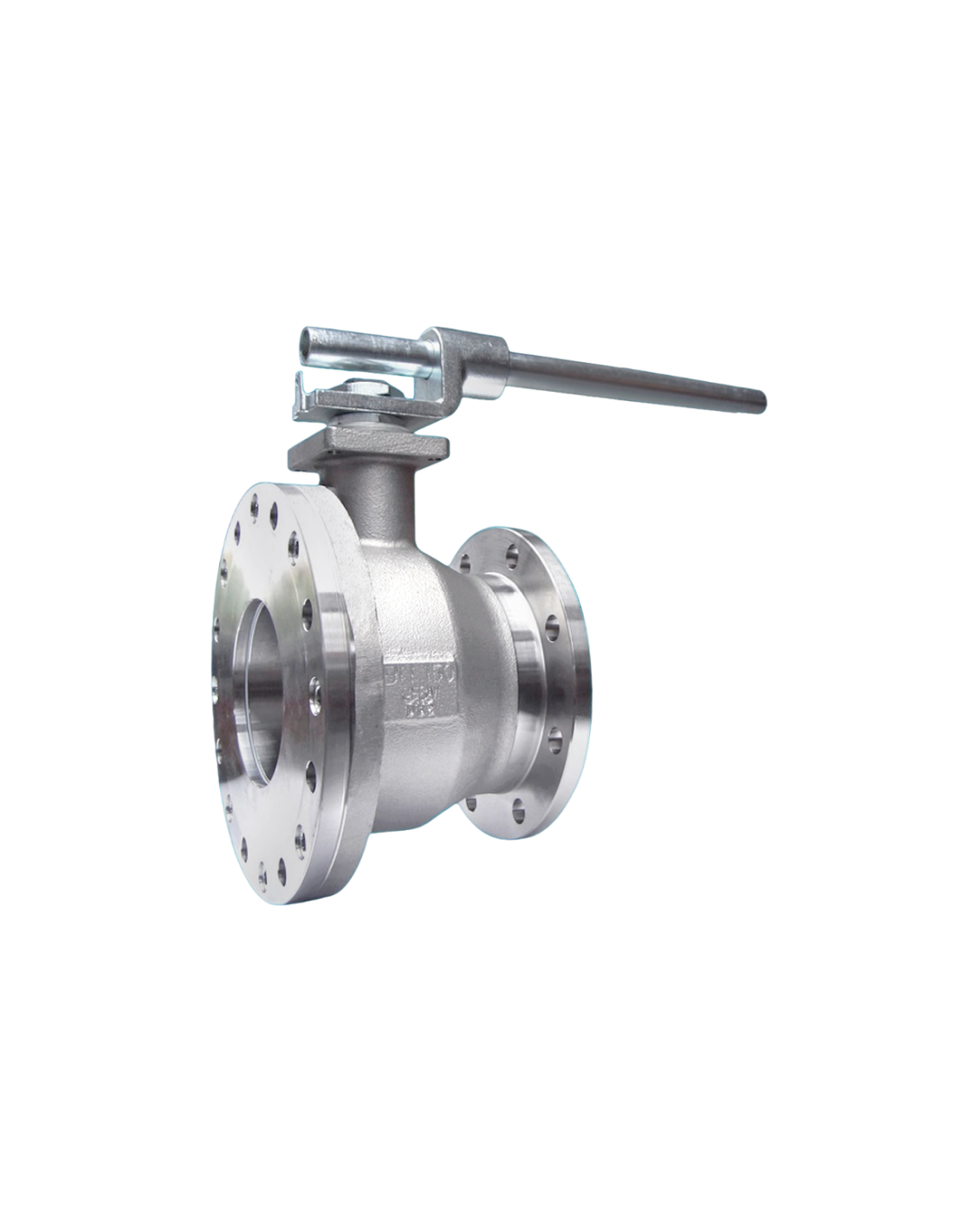

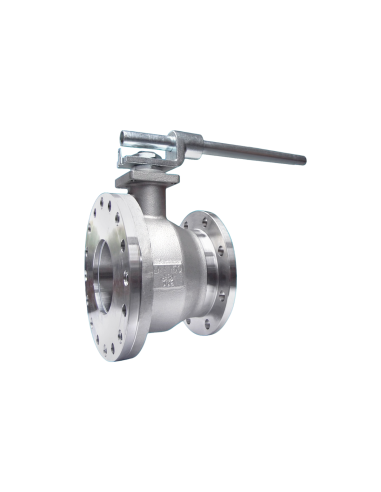

The Ball Valve - End Tank Execution - FB8 by ADLER is a high-performance "WAFER TYPE" valve designed for end tank applications. It features a full bore design with an oversize flange for secure tank connections, crafted from either round bar or casted materials in compliance with EN 12516.2, ASME B16.34, and ISO 14313 standards. Available in sizes ranging from DN 40 to DN 200, it is constructed from stainless steel or special steel, with a pressure rating of PN 10 to 16, and ANSI 150 available upon request. The valve includes a Chevron ring on the stem and offers optional features such as an O-ring on the stem, fire-safe execution, cryogenic execution, and compliance with various directives and certifications, including PED 14/68/UE, ATEX14/34/UE, and S.I.L. 3 safety system certification. Standard features include an anti blow-out proof stem, BS 5351 construction and marking, and an antistatic device. The valve is 100% air tested under water at 100 psi. Optional accessories include PTFE components, stem extensions, and various actuators and positioners.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16

Datasheet and documents

Description

Ball valve “WAFER TYPE” end tank execution, full bore, oversize flange for connections tank, manufactured from round bar or casted, according to EN 12516.2; ASME B16.34; ISO 14313.

Available size from DN 40 to DN 200 in stainless steel and special steel

Rating PN 10 ÷ 16 – ANSI 150 on request.

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution BS6755 API 607/6FA (patent n° 00219617)

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to ATEX14/34/UE directive

– degrease according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extensions

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certifications

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
