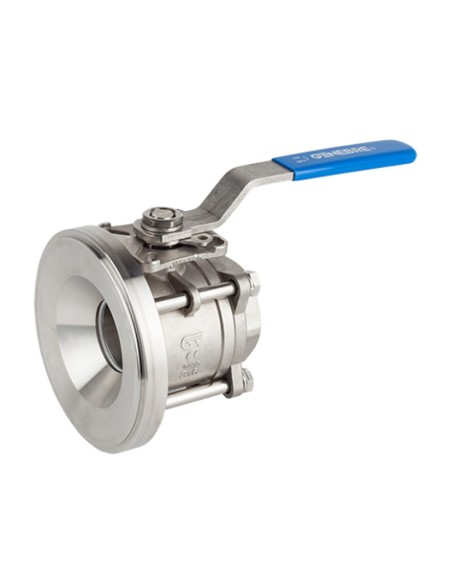

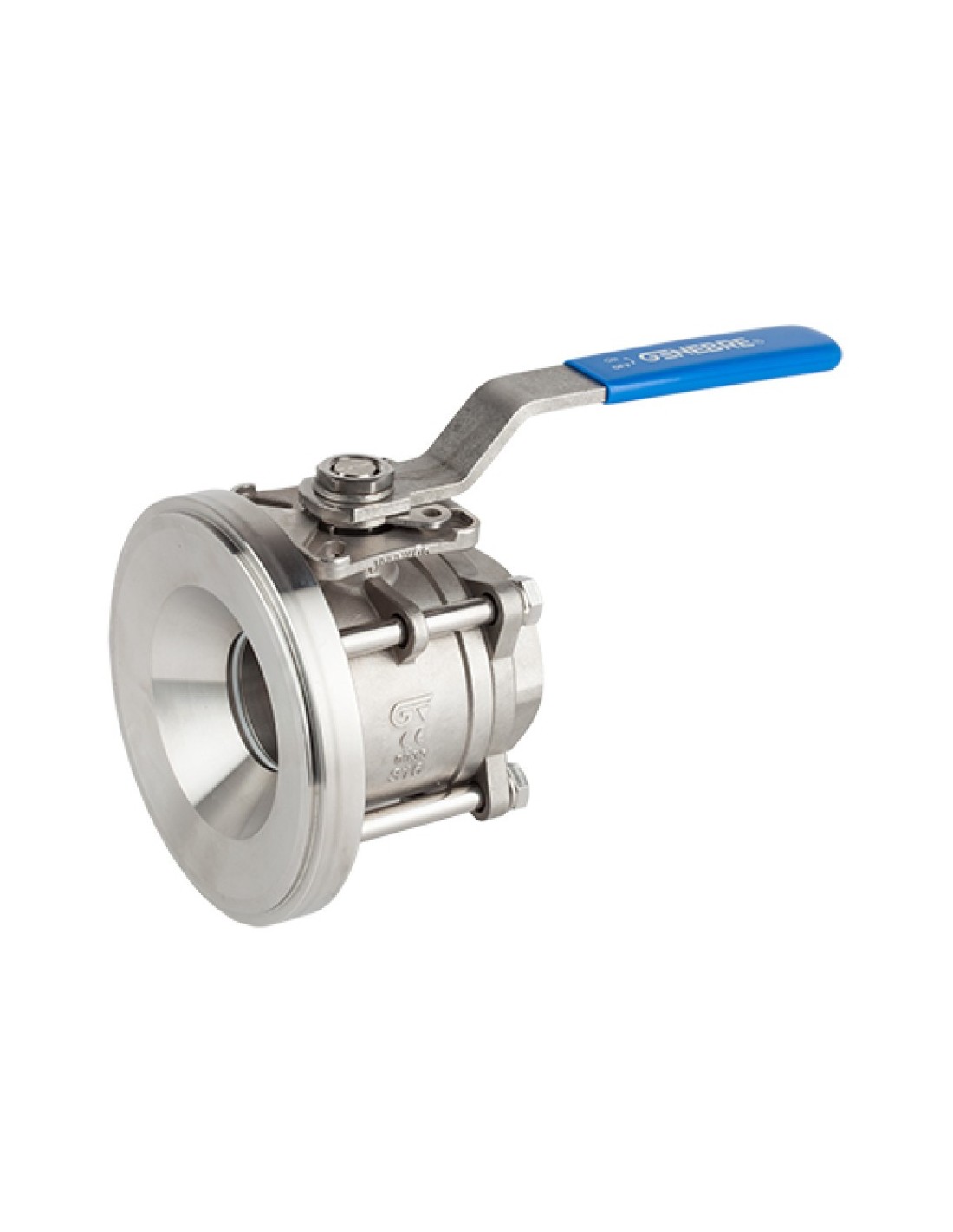

The Ball Valve - End Tank Execution - 2053 by Genebre is a high-quality valve designed for efficient fluid control in various industrial applications. It features a robust construction with a full bore design, ensuring minimal pressure drop and optimal flow. The valve is equipped with a reliable sealing mechanism, providing excellent leak prevention and durability. Its end tank execution allows for easy installation and maintenance, making it a practical choice for systems requiring frequent access or inspection. Ideal for use in water, gas, and other compatible fluid systems, this ball valve combines performance with reliability.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 63
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Const. stainless steel CF8M (316) and 316l (tank bottom).

Ends: butt weld ANSI B 16.25 and tank bottom.

Seats: PTFE + 15% FV. O’ring stem: viton.

PN 63. Temp. -25ºC +180ºC. Direct assembling ISO 5211.

Manually operated by handle with locking system.

Reference: 2053

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2053 04TANK BOTTOM BALL VALVE BW 1/2"10.441/1
2053 05TANK BOTTOM BALL VALVE BW 3/4"10.821/1
2053 06TANK BOTTOM BALL VALVE BW 1"11.021/1
2053 07TANK BOTTOM BALL VALVE 1 1/4"11.791/1
2053 08TANK BOTTOM BALL VALVE 1 1/2"13.661/1
2053 09TANK BOTTOM BALL VALVE BW 2"13.471/1
2053 10TANK BOTTOM BALL VALVE 2 1/2"18.51/1
2053 11TANK BOTTOM BALL VALVE BW 3"115.641/1
2053 12TANK BOTTOM BALL VALVE BW 4"116.651/1
