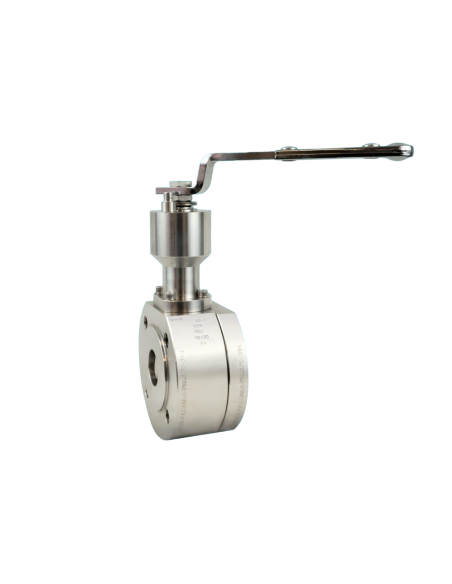

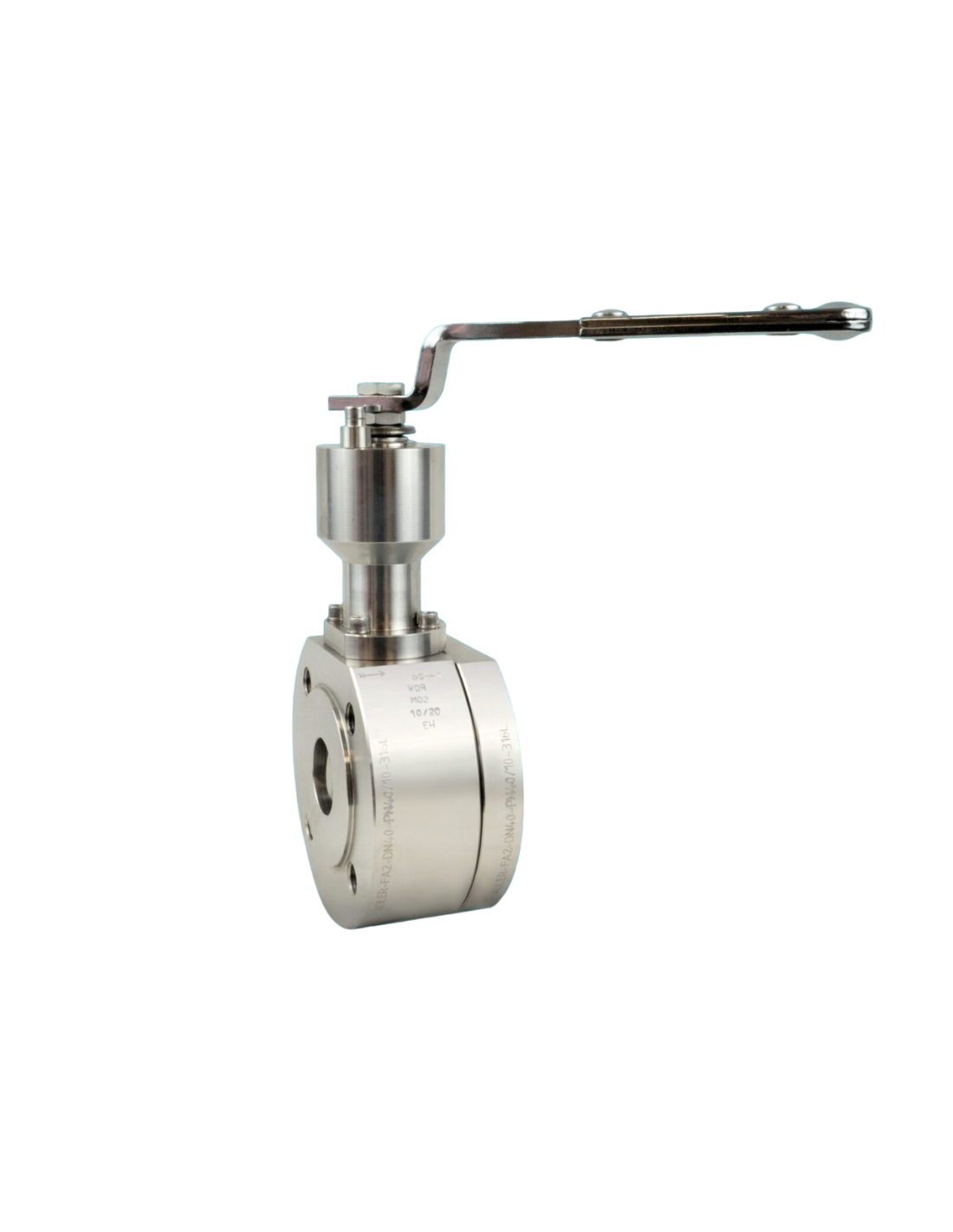

The Ball Valve for Cryogenic Service with a 100mm Extension by ADLER is designed for use in extremely low temperatures, down to -80°C. These valves feature a 100mm stem extension and are certified according to ISO 28921-1 and ISO 28921-2 standards. They are available in various certified types, including FA2, FE2, FM2, and FN2, with sizes ranging from DN 15 to DN 100 and a maximum rating of PN 40 or ANSI 150. Standard features include an anti blow-out proof stem, construction and marking compliant with BS 5351, an antistatic device, and a top flange according to ISO 5211. Each valve undergoes rigorous testing, being 100% air tested under water at 100 psi. Optional accessories include PTFE or glass-reinforced PTFE half shells, PTFE seats with various fillings, pneumatic or electric actuators, manual gearboxes, and positioners.

Description

Ball valves with stem extension of 100 mm suitable for service in cryogenic temperature up to -80°C.

Ball valves with cryogenic stem extension certified in according to ISO 28921-1 and ISO 28921-2.

Certified type:

FA2 da DN 15 a DN 100 max. rating PN 40

FE2 da DN 15 a DN 100 max. rating ANSI 150

FM2 da DN 15 a DN 100 max. rating PN 40

FN2 da DN 15 a DN 100 max. rating PN 40

Standard productions

anti blow out proof stem

construction and marking BS 5351

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass reenforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

Ball valves with cryogenic stem extension certified in according to ISO 28921-1 and ISO 28921-2.

Certified type:

FA2 da DN 15 a DN 100 max. rating PN 40

FE2 da DN 15 a DN 100 max. rating ANSI 150

FM2 da DN 15 a DN 100 max. rating PN 40

FN2 da DN 15 a DN 100 max. rating PN 40
