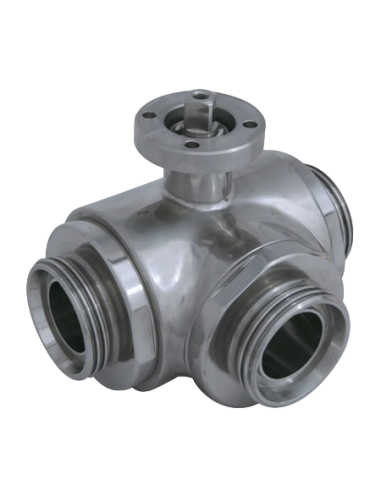

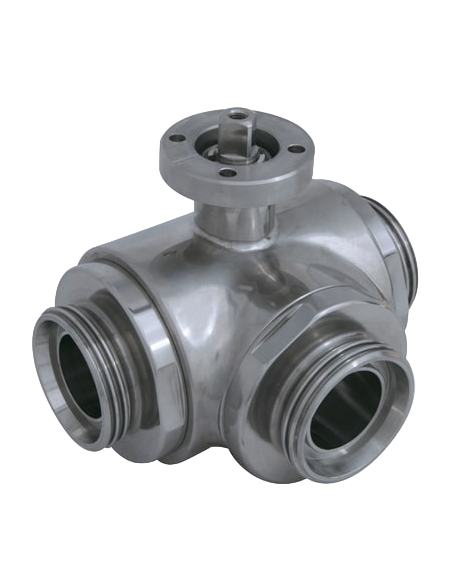

The 3 Way (T) Ball Valve by 4G Ghidini, model 303025, is a versatile valve designed for efficient fluid control. It features a "T" port configuration and is equipped with four standard seals made from Modified Virgin P.T.F.E., ensuring reliable performance across a wide temperature range of -20°C to +170°C. The valve is constructed from durable Aisi 316L (1.4404) stainless steel and offers full flow capabilities. It is compatible with ISO 5211 and DIN 3337 actuator flanges and has NPT female threads for easy connection. Available in sizes from 1/4” to 4”, the valve boasts a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific applications, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: NPT female/female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
