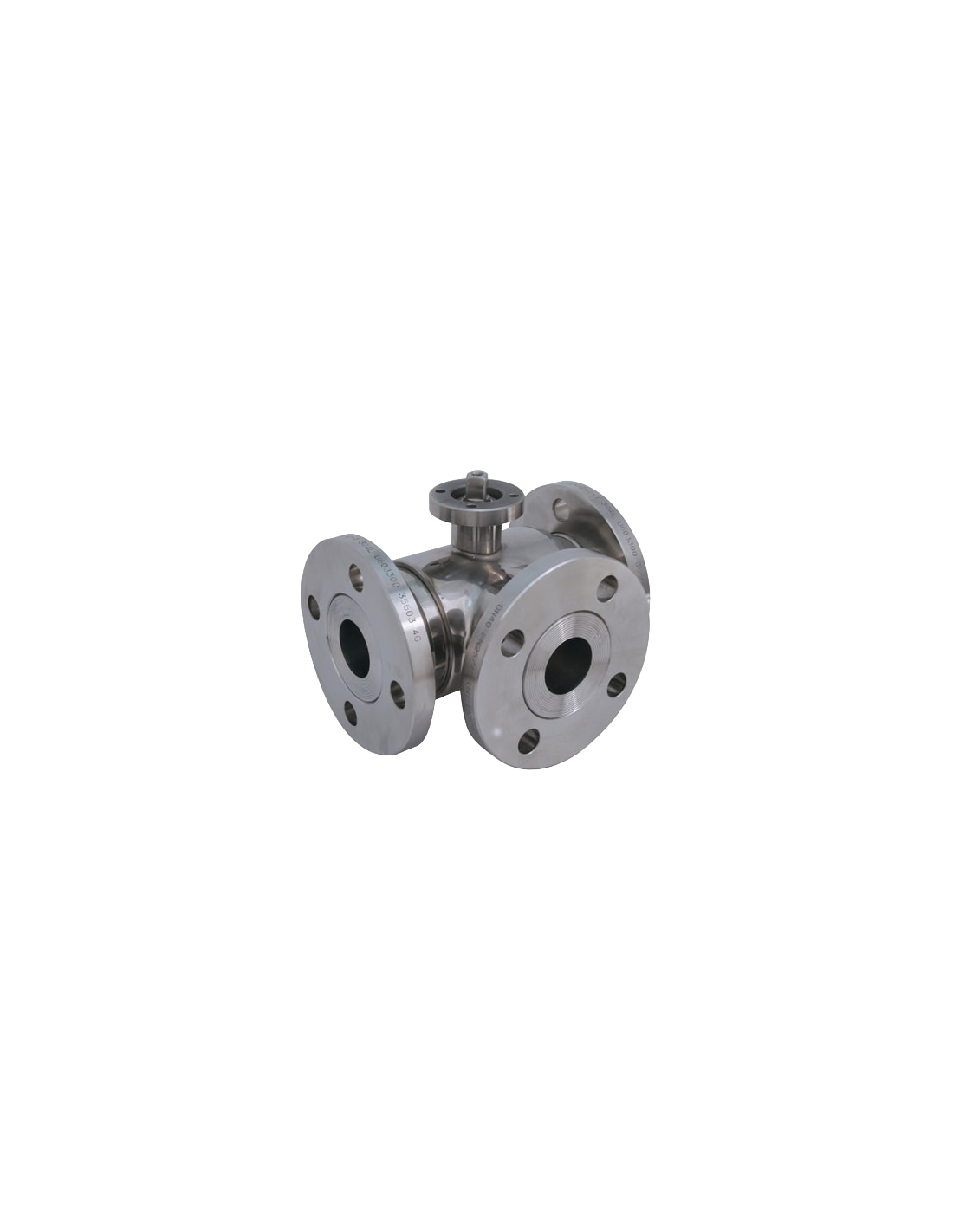

The 3 Way (T) Ball Valve by 4G Ghidini is a versatile valve designed for efficient flow control with a "T" port configuration. It features three seals and is compatible with actuators via an ISO 5211 – DIN 3337 flange. The valve connects using revolving threaded flanges compliant with UNI EN 1092-1 standards. It supports both full and reduced flow and is constructed from durable Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel. Available in sizes ranging from DN65 to DN100, the valve operates within a temperature range of -20°C to +170°C and has a polished outer finish. The standard seals are made from Modified Virgin P.T.F.E., with optional seals available in various materials for different temperature ranges. Additional features include an optional antistatic device compliant with ATEX standards and M.O.C.A. CE 1935/2004 certification.
Standard (Options)
  • DIN
Connection (Options)
  • Revolving Threaded Flanges
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “T” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: Revolving threaded flanges UNI EN 1092-1

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
