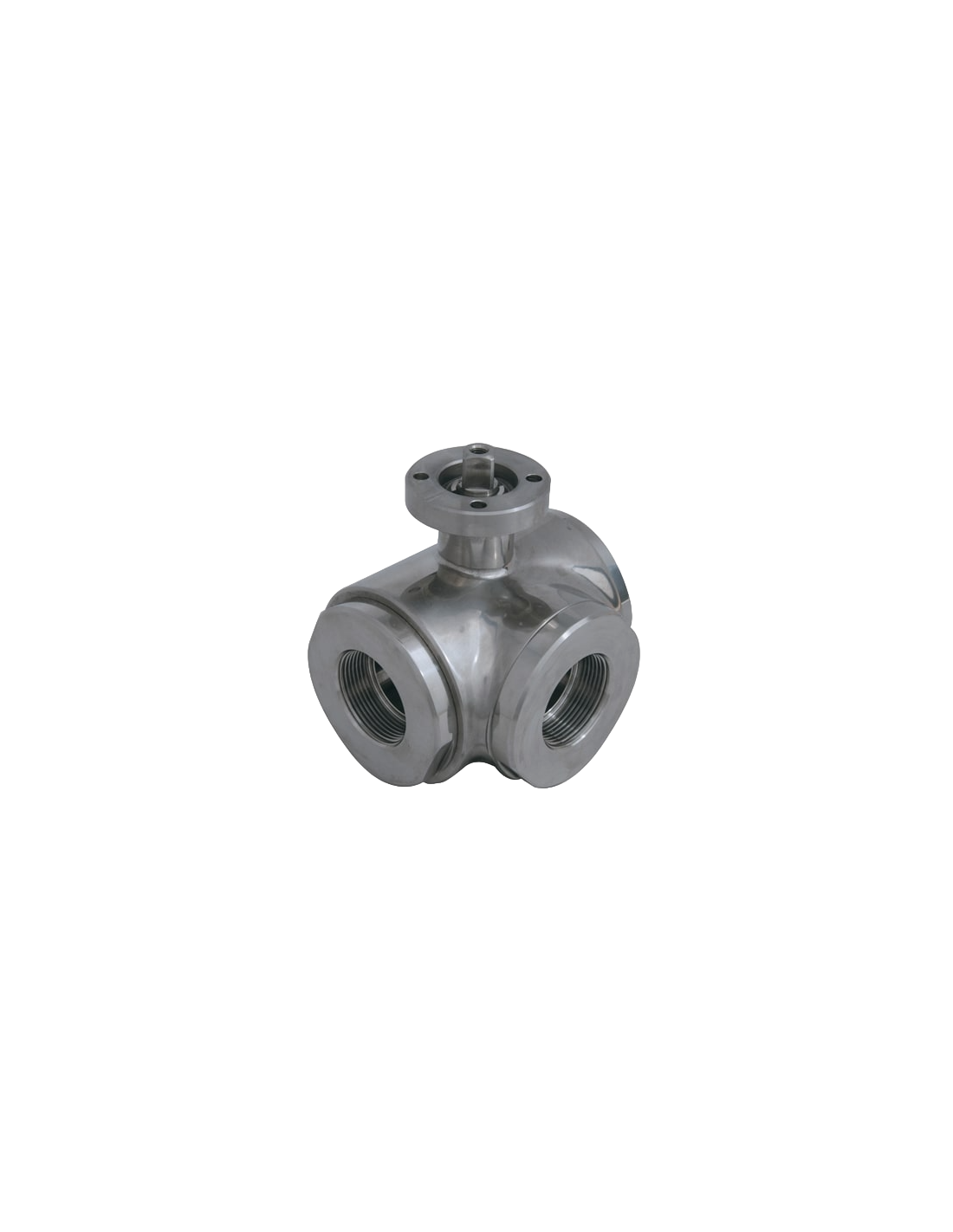

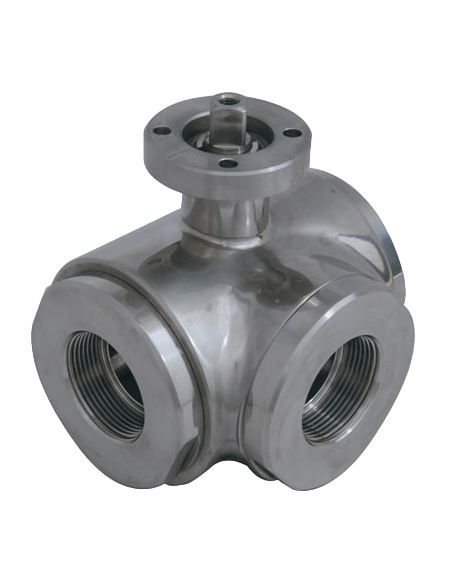

The 3 Way (T) Ball Valve by 4G Ghidini, model 363001, is a versatile valve designed for efficient fluid control. It features a three-seal system with a "T" port configuration, allowing for flexible flow management. The valve is equipped with an ISO 5211 – DIN 3337 flange for actuator compatibility and has ISO 228 female threads for easy connection. Constructed from durable Aisi 304L and Aisi 316L stainless steel, it offers full flow capacity and is available in sizes ranging from 2”1/2 to 4”. The seals are made from Modified Virgin P.T.F.E., ensuring reliable performance within an operating temperature range of -20°C to +170°C. The valve boasts a polished outer finish and can be customized with an antistatic device for ATEX compliance, as well as various seal materials for specific applications.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “T” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 2”1/2 to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
