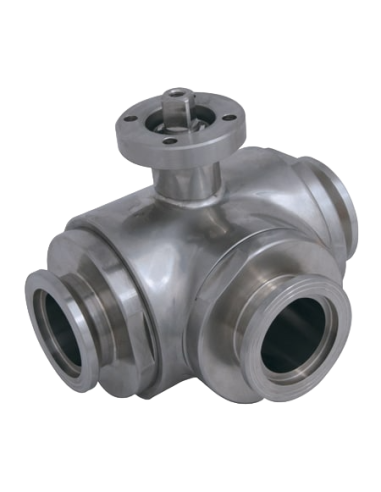

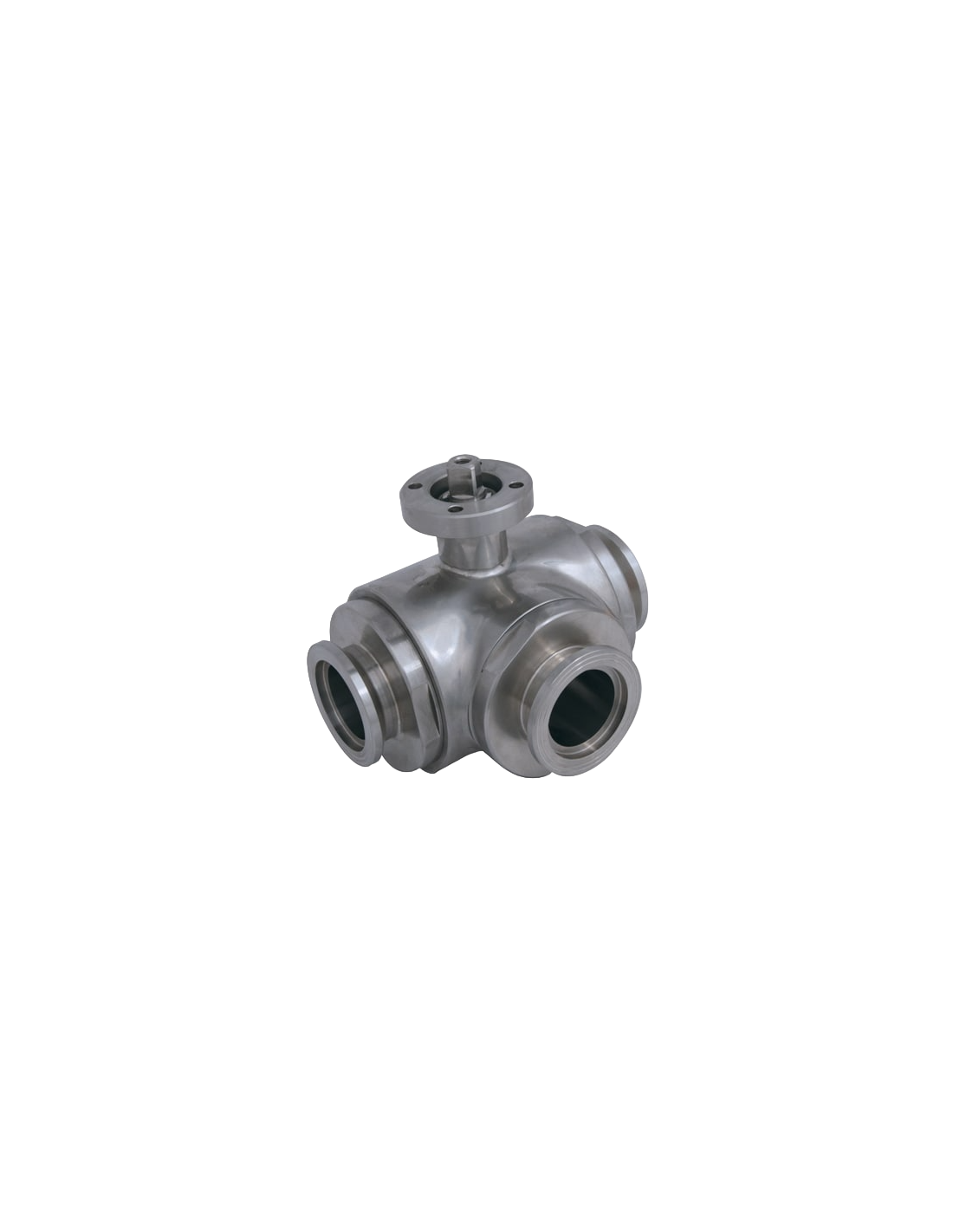

The 3 Way (T) Ball Valve by 4G Ghidini, model 363031, is a versatile valve designed for efficient flow control. It features a "T" port configuration and is equipped with three standard seals made from modified virgin P.T.F.E., ensuring reliable performance across a wide temperature range of -20°C to +170°C. The valve is constructed from durable Aisi 316L (1.4404) stainless steel and is available in sizes from DN65 to DN100. It offers both full and reduced flow options and is compatible with ISO 5211 and DIN 3337 actuator flanges. The polished outer finish enhances its durability and appearance. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Garolla
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “T” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: GAROLLA

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -200°C+80°C
