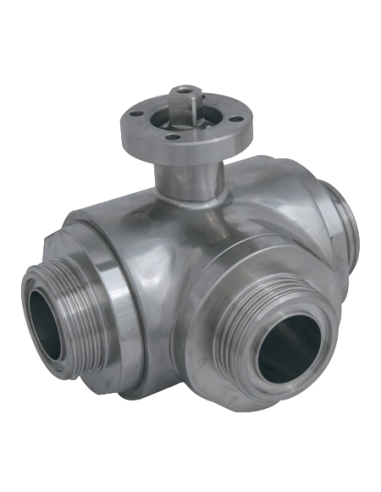

The 3 Way (T) Ball Valve - 3 SEALS STANDARD SEALS - F SMS - 363044 by 4G Ghidini is a versatile valve designed for efficient flow control. It features a three-way ball valve with a "T" port configuration and is equipped with three standard seals. The valve is compatible with ISO 5211 and DIN 3337 flanges for actuator mounting, and it connects via SMS female/female/female fittings. Constructed from durable Aisi 316L (1.4404) stainless steel, it supports full flow and is available in sizes ranging from DN65 to DN100. The seals are made from Modified Virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “T” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: SMS female/female/female

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
