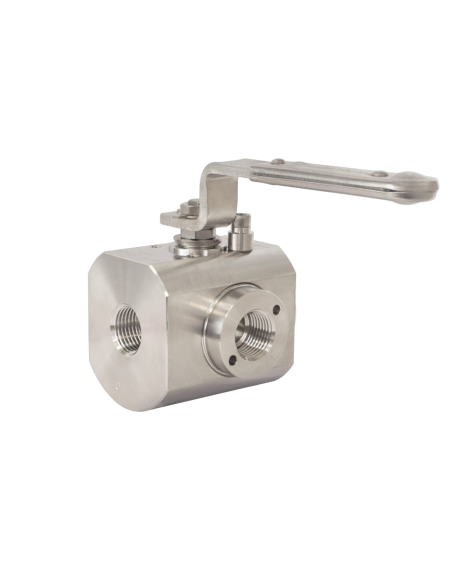

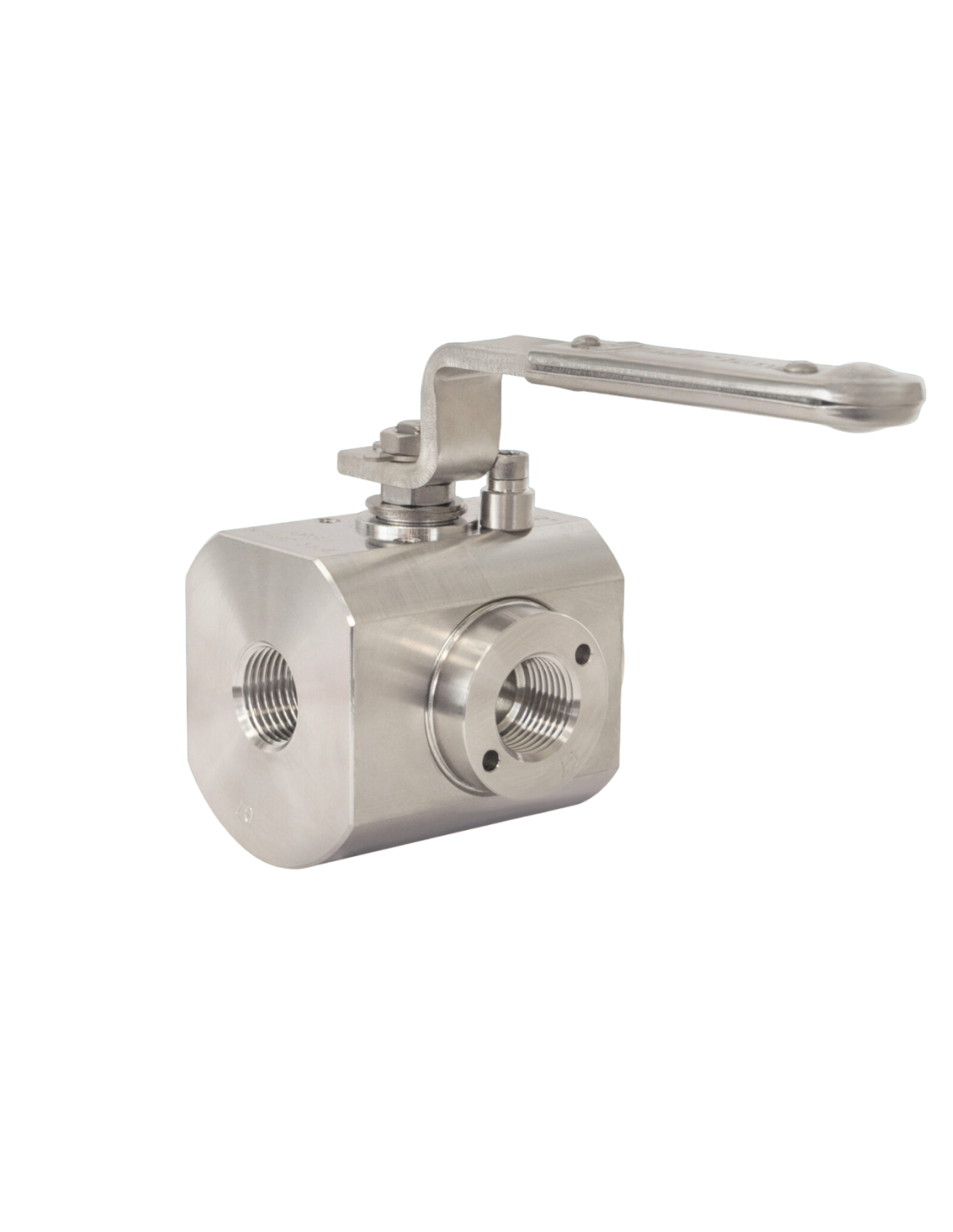

The 3 Way Ball Valve - FT6 by ADLER is a versatile, full bore, 90° wafer type valve designed for efficient fluid control. Manufactured from round bar, it complies with ASME B16.34, ISO 14313, and DIN 3230 M3 standards. Available in sizes ranging from DN ¼” to 2”, it is offered in carbon steel, stainless steel, and special steel, with a pressure rating of PN 25 to 63. The valve features a "T" or "L" bore type ball and a chevron ring on the stem, with optional o-ring on the stem for enhanced sealing. It is fire-safe according to ISO 10497 API 607 and BS6755 API 607/6FA standards, and meets various directives including PED, TPED, and ATEX. The valve is degreased for oxygen service and certified for safety system S.I.L. 3 and fugitive emission class “A” ISO 15848. Standard features include an anti blow-out proof stem, antistatic device, and top flange ISO 5211. It is 100% air tested under water at 100 psi. Optional accessories include PTFE seats, cryogenic valves, stem extension, various actuators, and limit switches.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105N
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 63
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Three way 90° ball valve “wafer type”, full bore, manufactured from round bar, according to ASME B16.34; ISO 14313; DIN 3230 M3, ISO 14313.

Available size from DN ¼” to 2” in carbon steel, in stainless steel and special steel

Rating PN 25÷63.

Thread available ISO 7RP (GAS); ASME B1.20.1 (NPT)

With  “T” bore o “L” bore type ball

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– according to  PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen serivce

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.Available with o’ring on stem (patent n°00219688).

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

cryogenic valves

stem extention

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

electric-pneumatic limit switches/solenoid valves

Cerftifications

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.Available with o’ring on stem (patent n°00219688).

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
