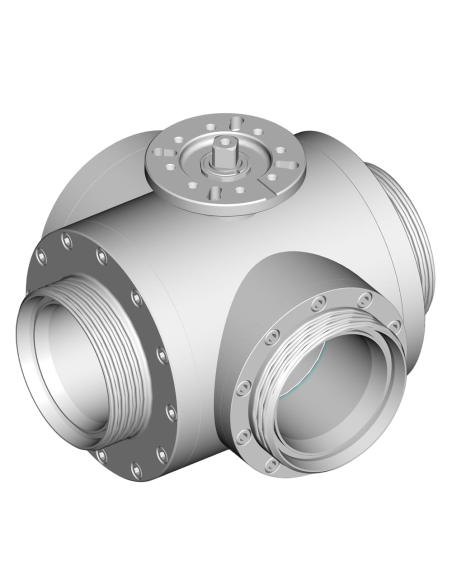

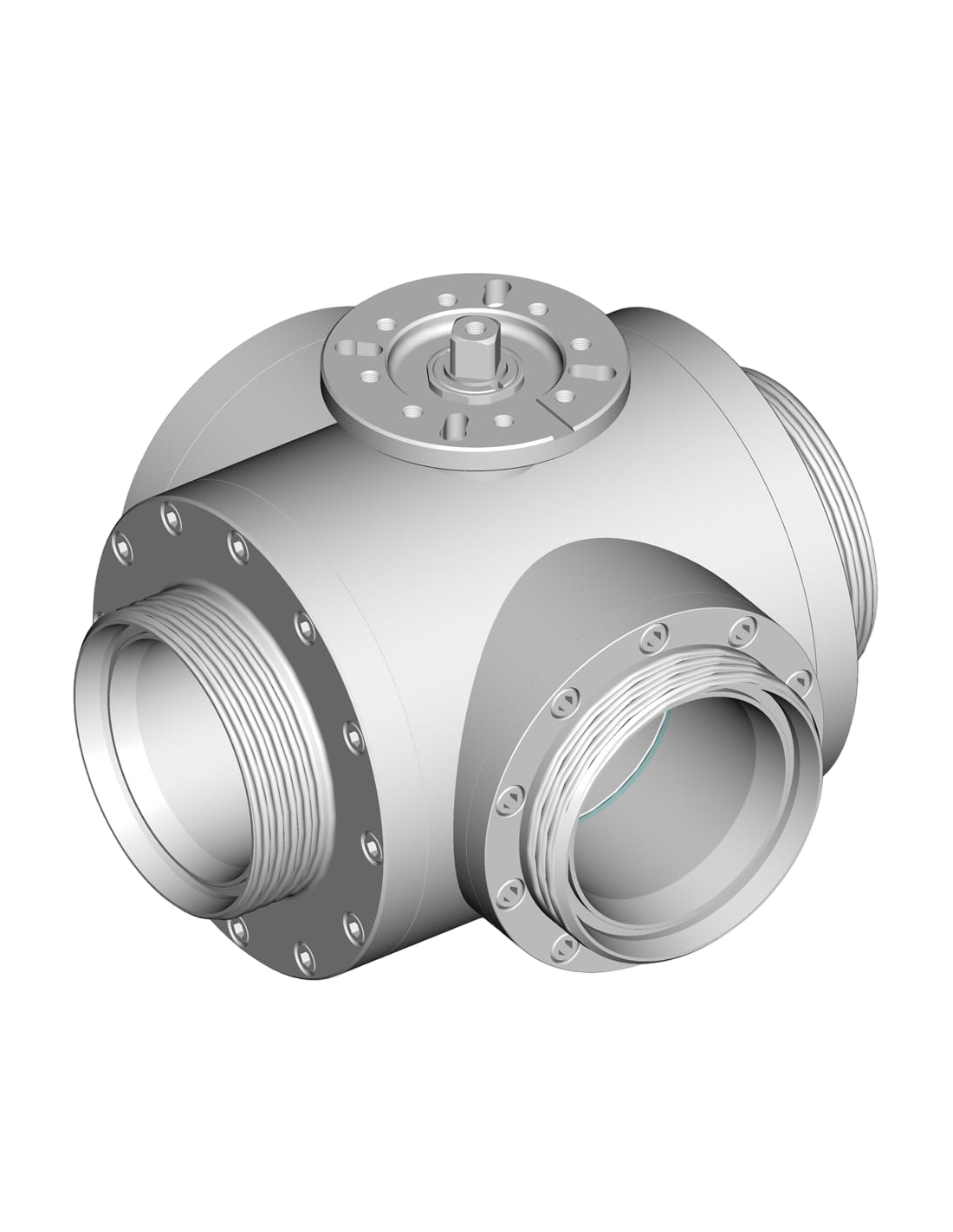

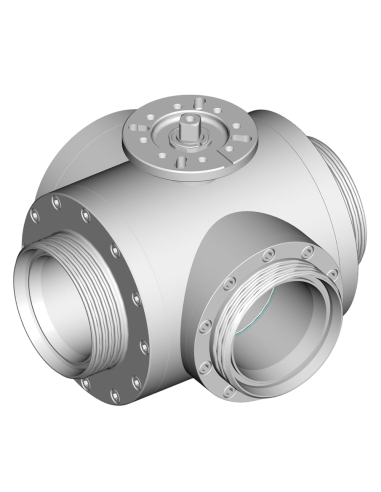

The 3 Way (L) Ball Valve DN125 by 4G Ghidini is a versatile valve designed for efficient fluid control. It features a three-way configuration with an "L" port and is equipped with four standard seals. The valve is compatible with ISO 5211 and DIN 3337 flanges for actuator or manual operation via a sliding lever or lever. It has a full flow design and connects using DIN 11851 female threads. Constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, the valve measures 5 inches and is fitted with virgin P.T.F.E. seals. It operates within a temperature range of -20°C to +160°C and has a polished outer finish. The valve includes an antistatic device compliant with ATEX standards, suitable for use in potentially explosive atmospheres (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db). Additionally, it can be customized to meet M.O.C.A. CE 1935/2004 requirements upon request.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

THREE-way ball valve 4 seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator / Sliding lever / Lever

Connection: DIN 11851 female/female/female

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: 5”

Seals:Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

On request:

M.O.C.A. CE 1935/2004
