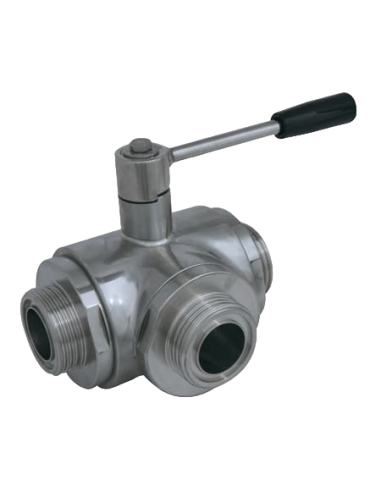

The 3 Way (L) Ball Valve by 4G Ghidini is a versatile valve designed for efficient fluid control. It features an "L" port configuration and is equipped with four standard seals made from Modified Virgin P.T.F.E., ensuring reliable performance. The valve is operated using an inox lever and connects via SMS female/female/female fittings, supporting full flow. Constructed from high-quality Aisi 304L and Aisi 316L stainless steel, it is available in sizes ranging from DN20 to DN100. The valve can operate within a temperature range of -20°C to +170°C and boasts a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “L” port

Drive: Inox lever

Connection: SMS female/female/female

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
