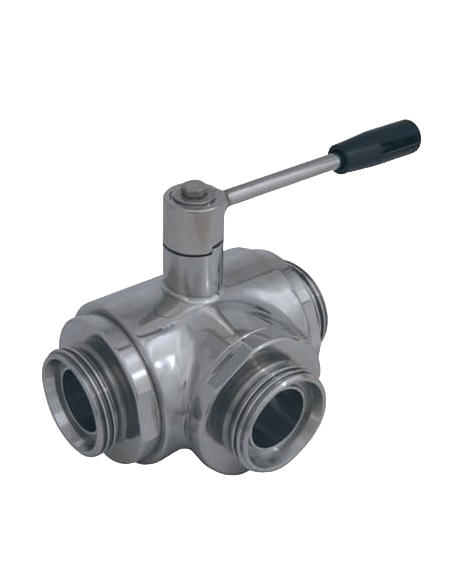

The 3 Way (L) Ball Valve by 4G Ghidini is a versatile valve designed for efficient flow control, featuring a three-way configuration with an "L" port. It is equipped with four standard seals and is available with an optional heating jacket. The valve is operated using an inox lever and connects via DIN 11851 female threads. It supports full flow and is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, with sizes ranging from DN10 to DN100. The seals are made from modified virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and seals made from various materials like PTFE with glass, carbographite, inox, or UHMW polyethylene, catering to different temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

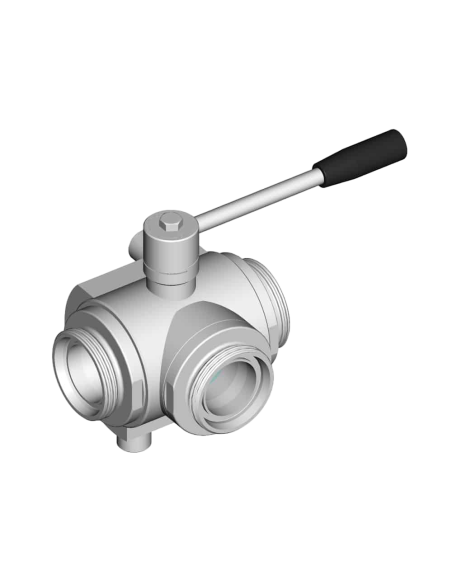

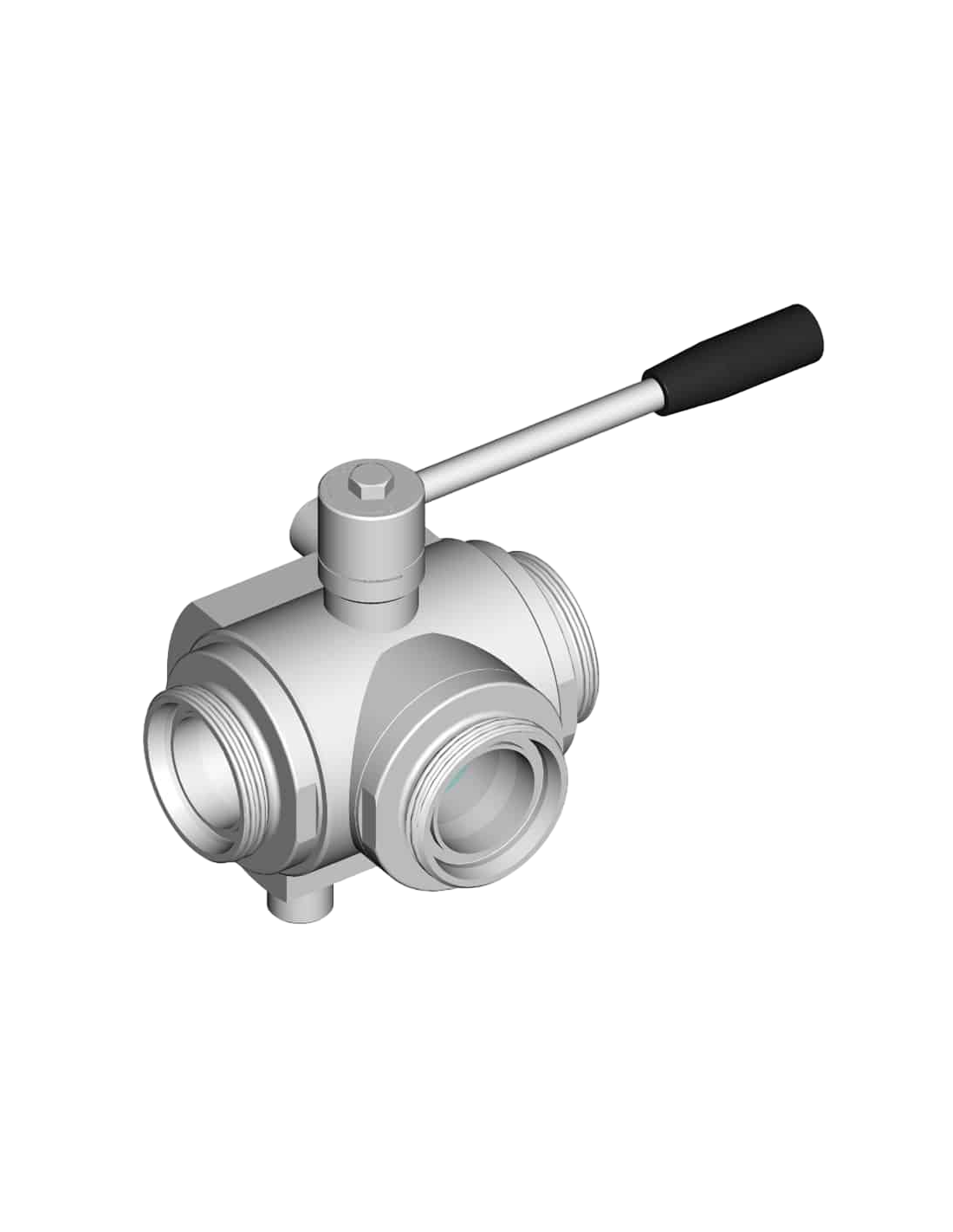

THREE-way ball valve 4 seals with “L” port / THREE-way ball valve 4 seals with “L” port with HEATING JACKET

Drive: Inox lever

Connection: DIN 11851 female/female/female

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
