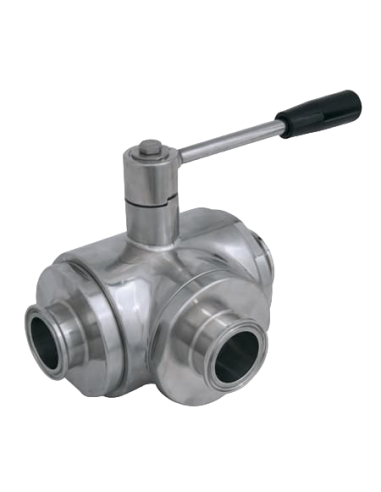

The 3 Way (L) Ball Valve - 310130 by 4G Ghidini is a versatile valve designed for efficient fluid control. It features a three-way configuration with an "L" port and is equipped with four seals for enhanced reliability. The valve is operated using an inox lever and offers various connection options compliant with DIN 32676 standards for different tube norms (BS/OD, DIN 11850, ISO 1127). It supports both full and reduced flow and is constructed from high-quality Aisi 304L and Aisi 316L stainless steel. Available in sizes ranging from 1/2” to 4” (DN10 to DN100), it is suitable for a wide range of applications. The valve's seals are made from modified virgin P.T.F.E., and it operates within a temperature range of -20°C to +170°C. The outer finish is polished for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and seals made from PTFE with inox or UHMW polyethylene for specific temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “L” port

Drive: Inox lever

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
