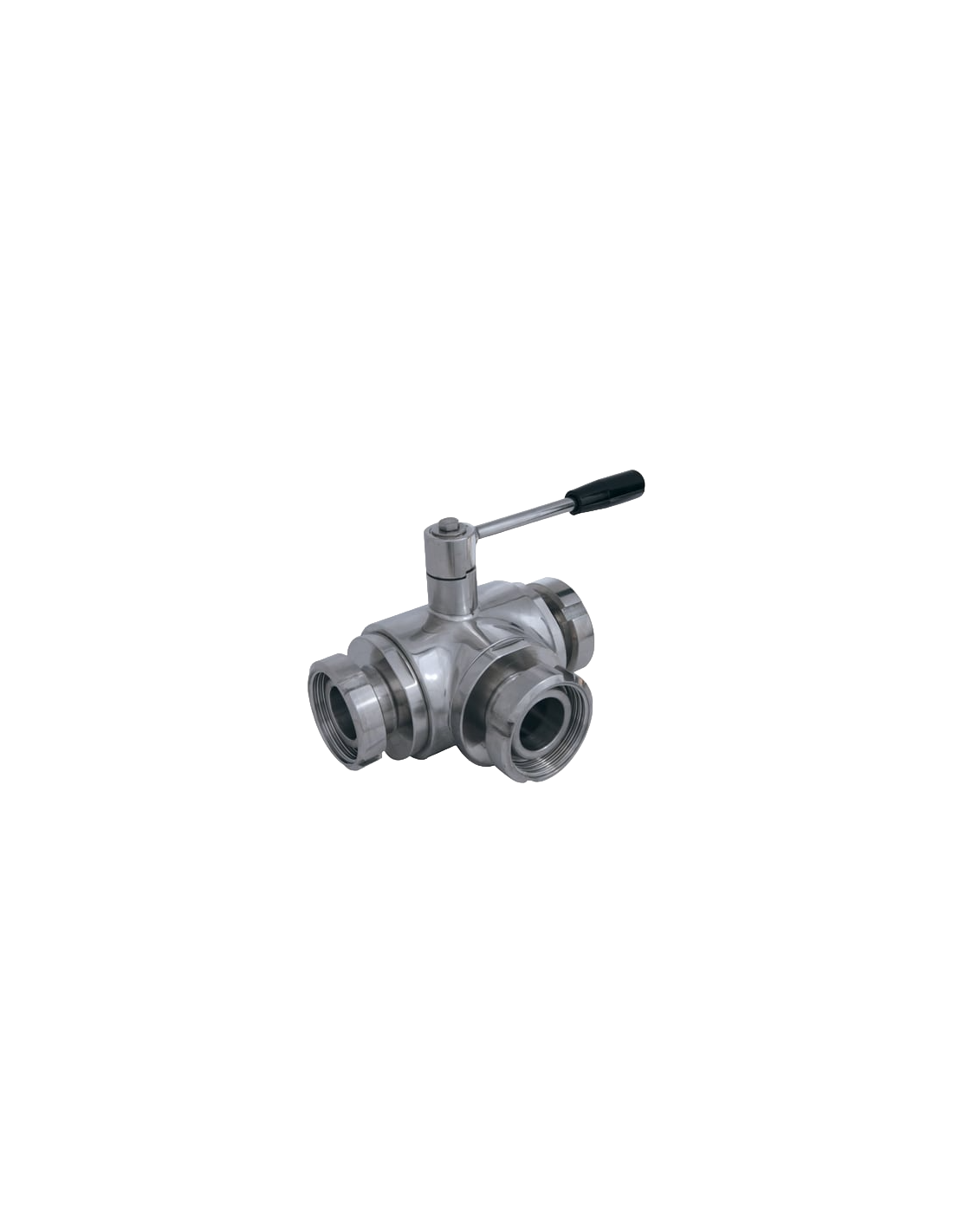

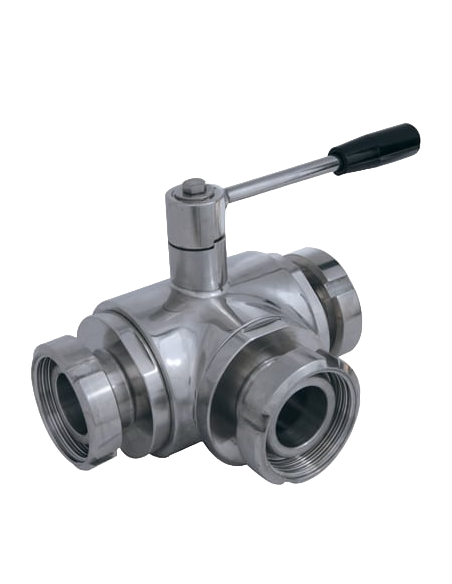

The 3 Way (L) Ball Valve by 4G Ghidini, model 370146, is a versatile valve designed for efficient fluid control. It features a three-way configuration with an "L" port and is equipped with three standard seals. The valve is operated using a durable stainless steel (Inox) lever and connects via SMS male/male/male fittings. It offers full flow capacity and is constructed from high-quality AISI 316L (1.4404) stainless steel, ensuring excellent corrosion resistance. The valve is available in sizes ranging from DN65 to DN100 and uses modified virgin P.T.F.E. seals for reliable performance across a wide operating temperature range of -20°C to +170°C. The outer finish is polished for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. CE 1935/2004 certification. Alternative seal materials are available upon request, including PTFE with glass, carbographite, or inox, and UHMW polyethylene, each offering different temperature tolerances and properties to suit specific applications.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve THREE seals with “L” port

Drive: Inox lever

Connection: SMS male/male/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
