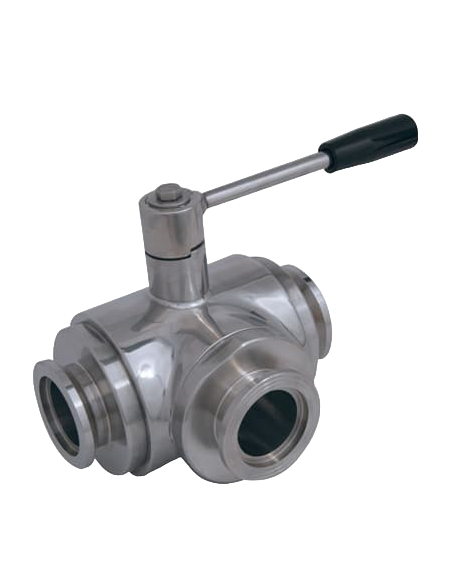

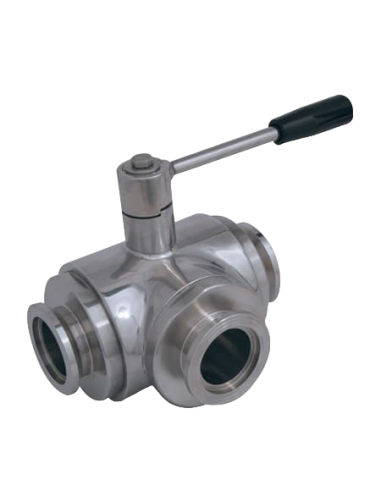

The 3 Way (L) Ball Valve by 4G Ghidini, model 370131, is a versatile valve featuring a three-seal design with an "L" port configuration. It is operated using an inox lever and connects via a GAROLLA connection. The valve supports both full and reduced flow and is constructed from durable Aisi 316L (1.4404) stainless steel. Available in sizes ranging from DN65 to DN100, it is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. The valve boasts a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and seals made from various materials such as PTFE with glass, carbographite, inox, or UHMW polyethylene, catering to different temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Garolla
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: Inox lever

Connection: GAROLLA

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -200°C+80°C
