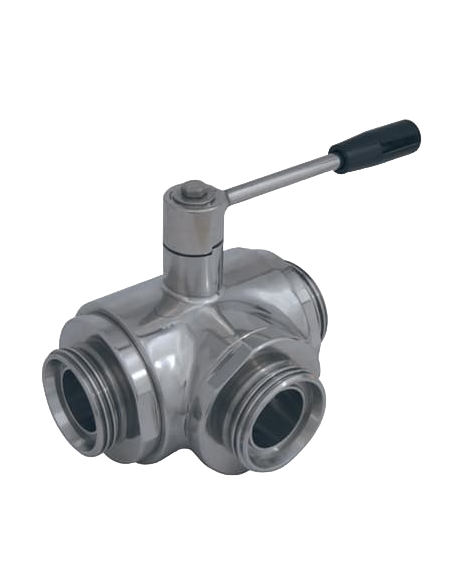

The 3 Way (L) Ball Valve by 4G Ghidini is a versatile valve featuring three seals and an "L" port configuration, designed for efficient flow control. It is operated with a stainless steel lever and connects via DIN 11851 female threads. Constructed from high-quality AISI 304L and AISI 316L stainless steel, the valve supports full flow and is available in sizes ranging from DN65 to DN100. The standard seals are made from modified virgin PTFE, suitable for operating temperatures between -20°C and +170°C. The valve boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: Inox lever

Connection: DIN 11851 female/female/female

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
