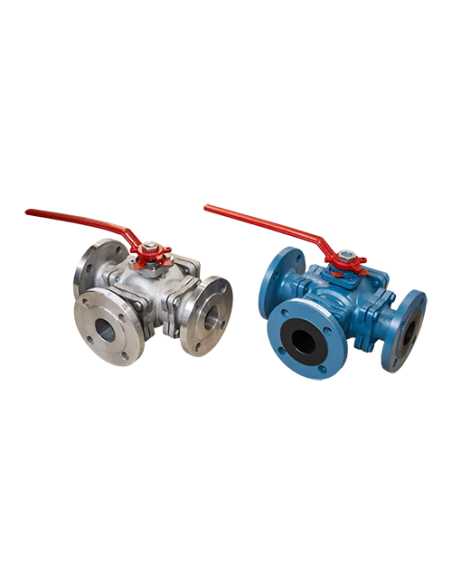

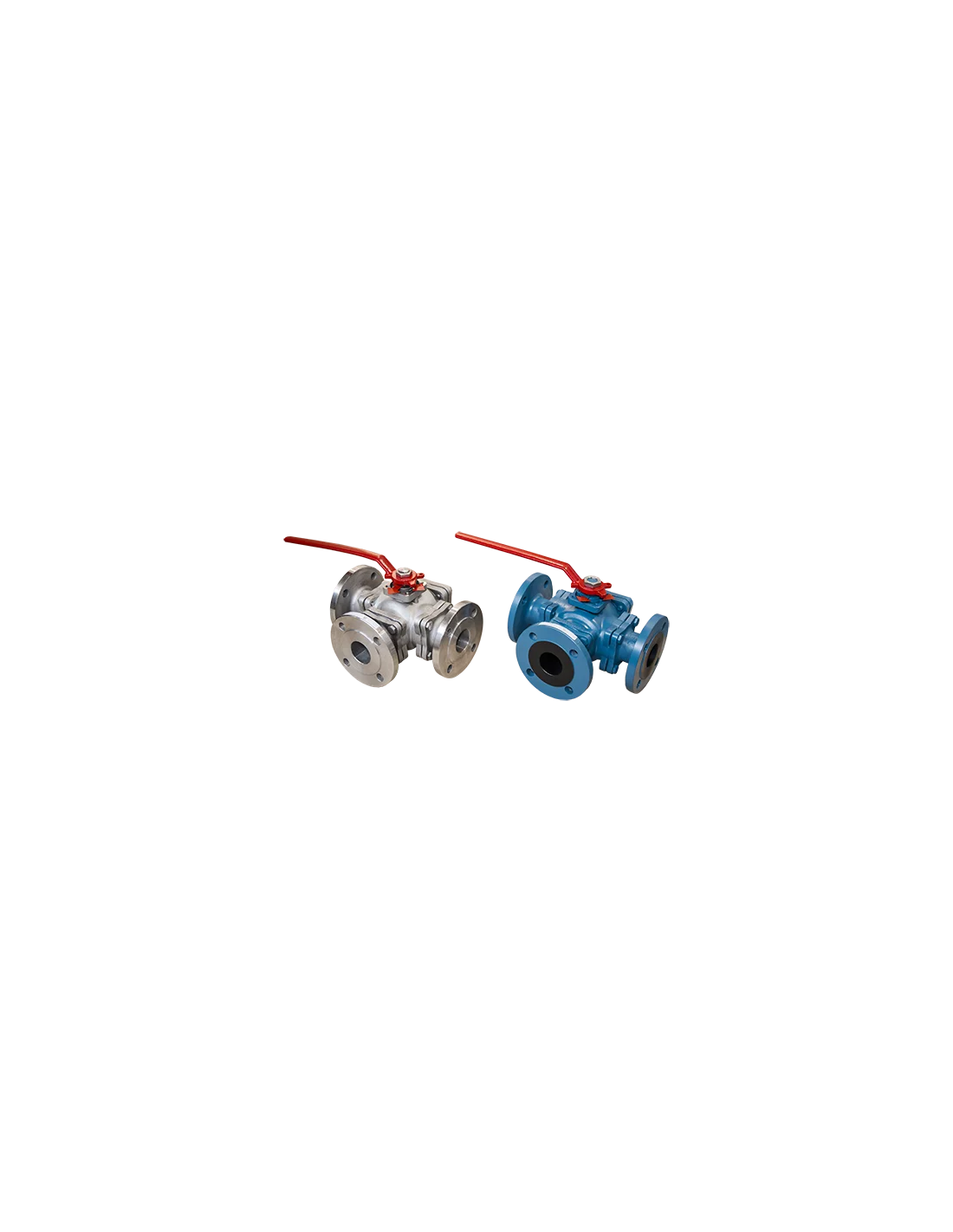

The 3 Way Ball Valve - PN16 - 916 by JC Valves is a versatile and robust solution designed for various industrial applications. This multiport valve features a split body and full bore design, ensuring efficient flow and reliable performance. It comes with flanged connections and incorporates a blowout-proof stem and non-removable antistatic devices for enhanced safety. The valve also includes a cavity pressure balancing hole and live loaded packing for optimal functionality. It adheres to high standards, including PED, MSS SP 55, and ATEX, and meets NACE MR0175 / ISO15156 & NACE MR0103 / ISO17945 for all wetted components. Suitable for industries such as Oil & Gas, Chemical & Petrochemical, Pulp & Paper, Energy & Renewable, Food & Pharma, Marine, Tank Terminals, Mining, Waste Treatment, and Special Fluids Transport, this valve is engineered to meet the demanding needs of diverse sectors.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE

Datasheet and documents

Description

PRODUCT FEATURES

Multiport, Split body, Full bore
Flanged connections
Blowout-proof stem
Non-removable antistatic devices
Cavity pressure balancing hole
Live Loaded Packing

STANDARDS

PED
Quality Standard MSS SP 55
All wetted component materials meet NACE MR0175 / ISO15156 & NACE MR0103 / ISO17945
ATEX

INDUSTRIES

Oil & Gas
Chemical & Petrochemical
Pulp & Paper
Energy & Renewable
Food & Pharma
Marine
Tank terminals
Mining
Waste treatment
Special fluids transport

Certificates

PED 2014/68/EU - CE marking

ATEX 2014/34/EU– (II2GD)

Russian Federation Certificate TRCU 10, TRCU 12, TRCU 32

Food processing and pharmaceutical industry FDA, USP CLASS VI COMPLIANCE (CE 1935/2004)

German type test certificate A216-16

Safety Integrity Level (SIL) LEVEL 3 IEC 61508
