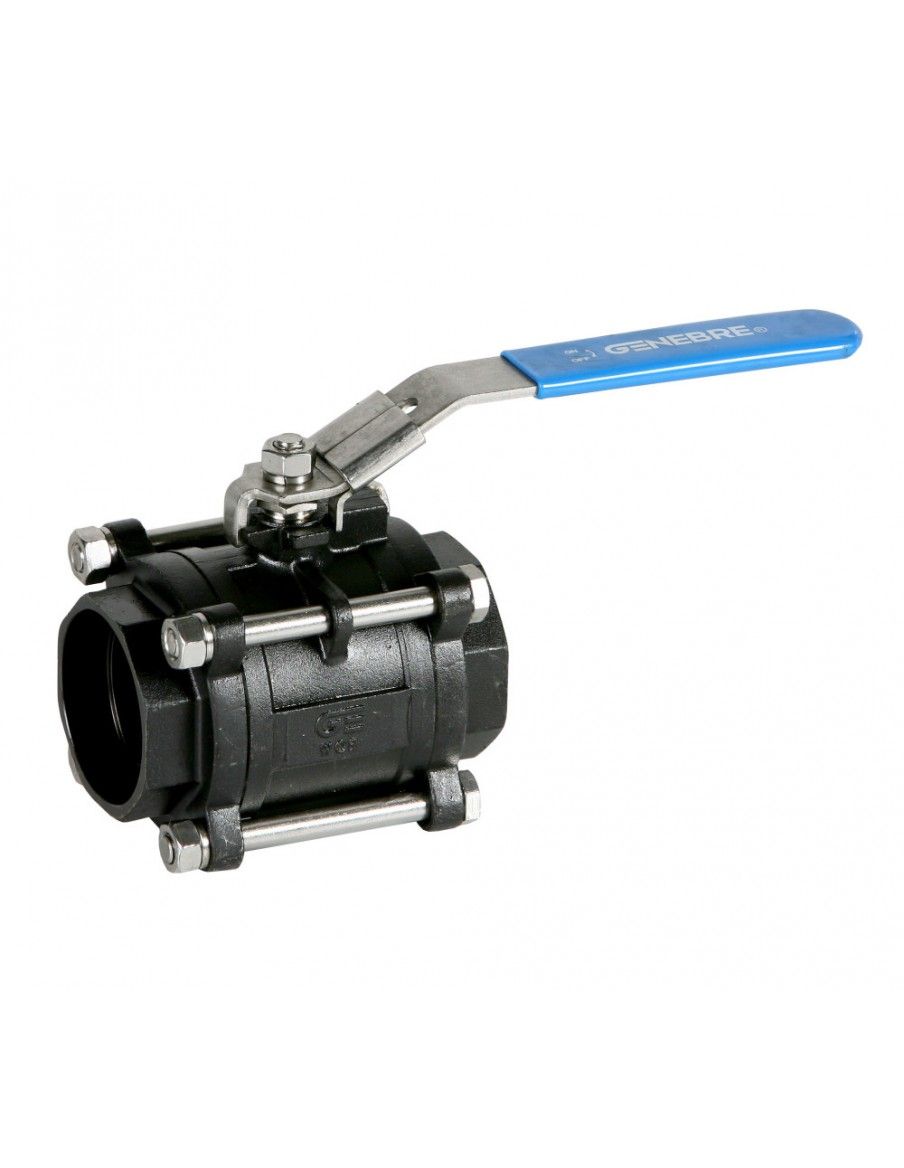

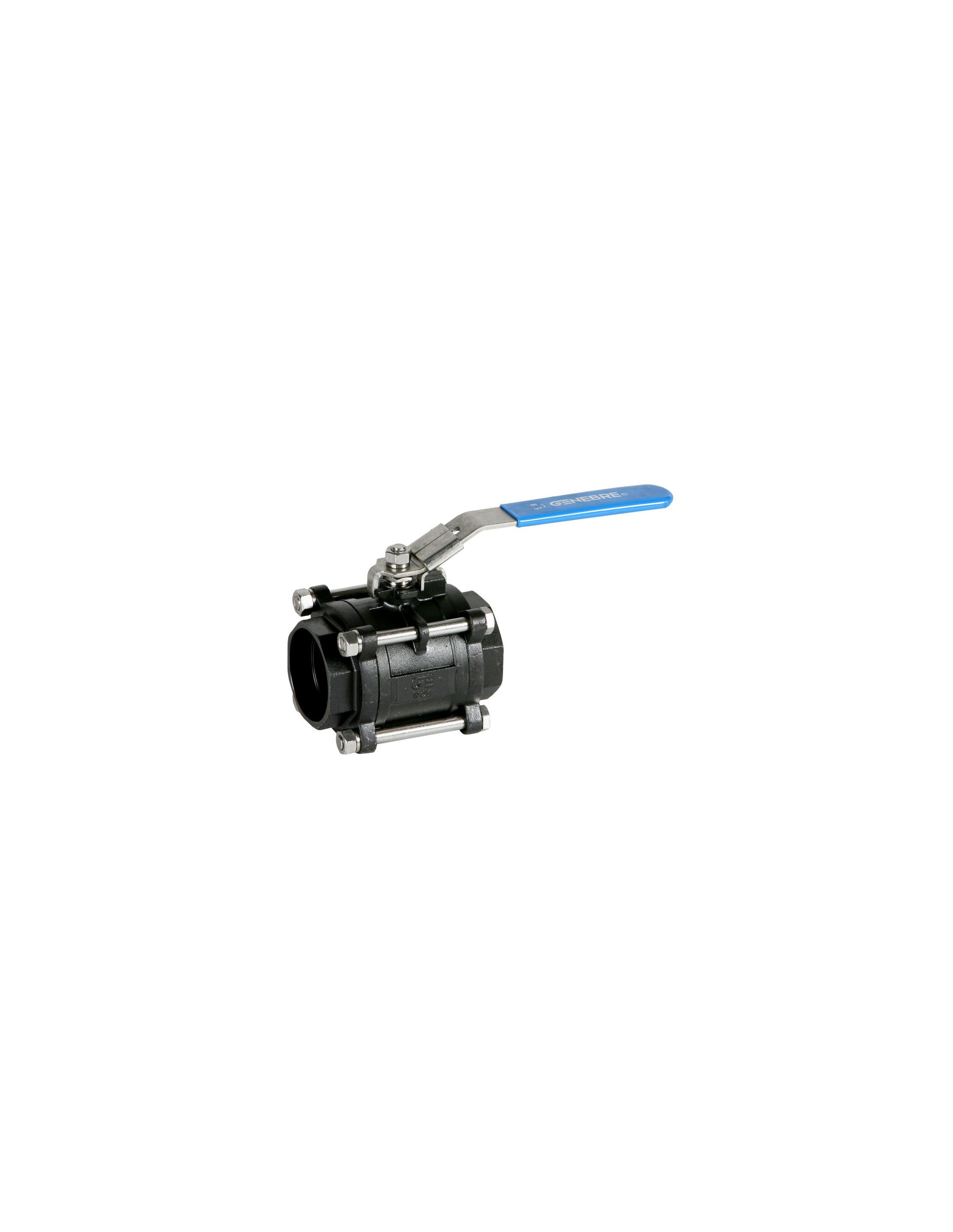

The Ball Valve with welded ends, model 2034S by Genebre, is a high-quality, three-piece full bore ball valve designed for efficient fluid control. It features socket weld connections conforming to ANSI B 16.11 standards, ensuring secure and reliable installation. This valve is ideal for applications requiring robust performance and durability, offering minimal pressure drop and excellent sealing capabilities.

Datasheet and documents

Description

Const. carbon steel “WCB” (investment casting). Ball and stem: stainless steel 316. Seats: PTFE + 15% GF. 1000 wog. Temp. -25ºC +180ºC. Manually operated by handle with locking system.

Reference: 2034S

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2034S 023PCS FULL BORE BALL VALVE SW 1/4"10.27112/72
2034S 033PCS FULL BORE BALL VALVE SW 3/8"10.14412/72
2034S 043PCS FULL BORE BALL VALVE SW 1/2"10.3519/54
2034S 053PCS FULL BORE BALL VALVE SW 3/4"10.6016/36
2034S 063PCS FULL BORE BALL VALVE SW 1"10.8014/24
2034S 073PCS FULL BORE BALL VALVE SW 1 1/4"11.4292/12
2034S 083PCS FULL BORE BALL VALVE SW 1 1/2"11.7414/8
2034S 093PCS FULL BORE BALL VALVE SW 2"13.0573/6
2034S 103PCS FULL BORE BALL VALVE SW 2 1/2"16.3221/4
2034S 113PCS FULL BORE BALL VALVE SW 3"19.0721/2
2034S 123PCS FULL BORE BALL VALVE SW 4"119.4351/1
