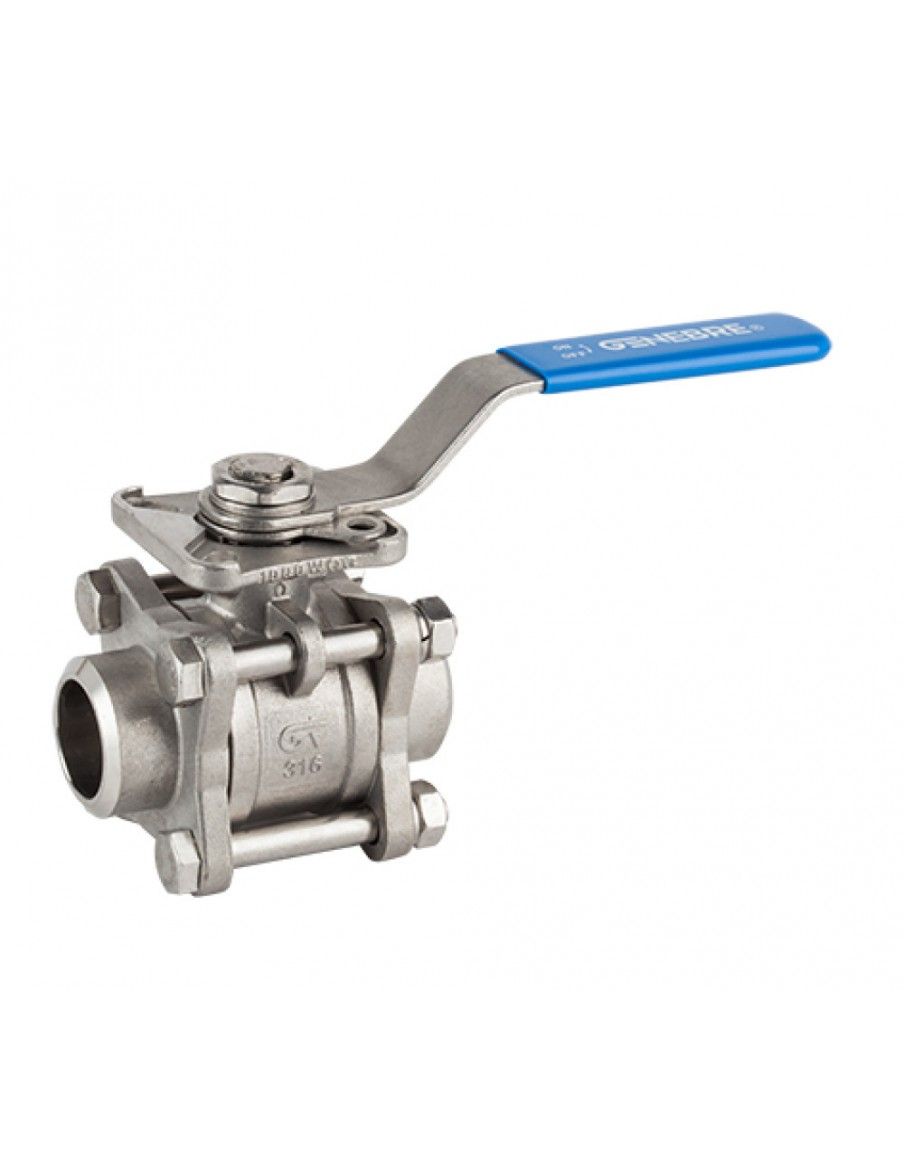

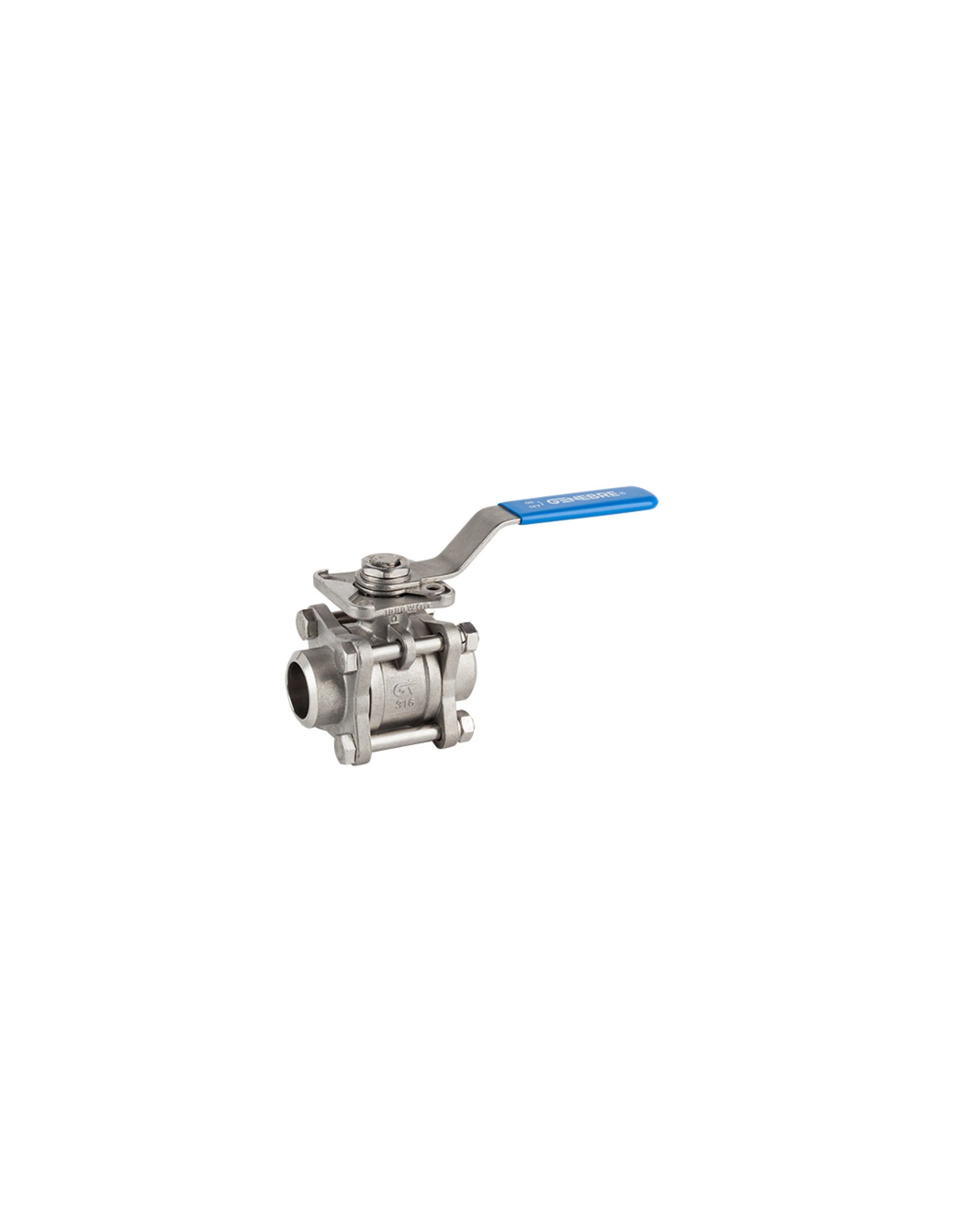

The Ball Valve with welded ends from Genebre is a three-piece, full bore design, ideal for ensuring maximum flow efficiency. It features butt weld connections conforming to ANSI B 16.25 standards, ensuring a secure and reliable fit for high-pressure applications. This valve is designed for durability and precision, making it suitable for a wide range of industrial applications.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 63
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Const.: stainless steel CF8M (316) investment casting. Seats and seats: PTFE +15% GF o’ring stem: viton PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211 with locking system.

1000 WOG -13ºF + 356ºF

Reference: 2026

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2026 023PCS FULL BORE B. V. 1/4"10.3758/64
2026 033PCS FULL BORE B.V. 3/8"10.3658/64
2026 043PCS FULL BORE B. V. 1/2"10.4266/54
2026 053PCS FULL BORE B. V. 3/4"10.7943/27
2026 063PCS FULL BORE B. V. 1"10.9972/20
2026 073PCS FULL BORE B.V. 1 1/4"11.8691/8
2026 083PCS FULL BORE B. V. 1 1/2"12.4394/8
2026 093PCS FULL BORE B. V. 2"13.482/6
2026 103PCS FULL BORE B. V. 2 1/2"18.6931/2
2026 113PCS FULL BORE B. V. 3"112.4491/1
2026 123PCS FULL BORE B. V. 4"119.4631/1

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY
