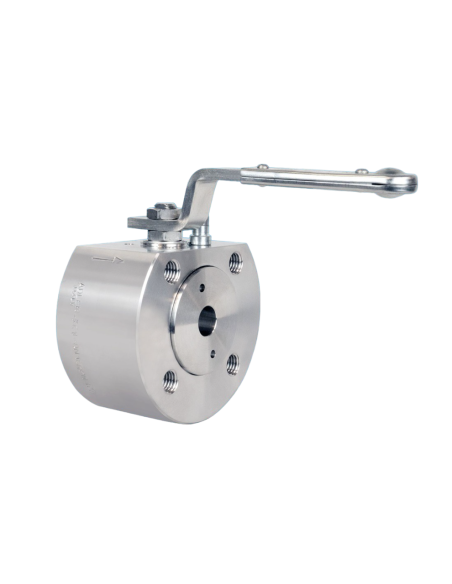

The Ball Valve Wafer - FC1 by ADLER is a high-performance, full bore valve designed for various industrial applications. Constructed from round bar, it adheres to multiple international standards including EN 12516.2, ASME B16.34, and ISO 14313. Available in sizes DN 10 to DN 40, it is offered in carbon steel, stainless steel, and special steel, with pressure ratings of PN 63 to 160 and ANSI 600 to 1500. The valve features double seals at the body/insert junction and a chevron ring on the stem for enhanced sealing and durability. Optional features include fire-safe and cryogenic executions, compliance with several EU directives, and certifications for safety and fugitive emissions. Standard features include an anti blow-out proof stem, antistatic device, and 100% air testing under water. Additional accessories such as PTFE seats, stem extensions, and various actuators are available upon request.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 63
  • PN 100
  • PN 160
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve “wafer type”, full bore, manufactured from round bar, construction in according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN 1759-1; ASME B16.5; ANSI B1.1; ISO 14313.

Available size from DN 10 to DN 40 in carbon steel, in stainless steel and special steel

Rating PN 63 – 100 – 160 / ANSI 600 / ANSI 900  / ANSI 1500.

Double seals on body/insert junction

Chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution BS6755 API 607/6FA (patent n° 00219617)

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX14/34/UE directive

– degrease according to ISO 23208 oxige service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
