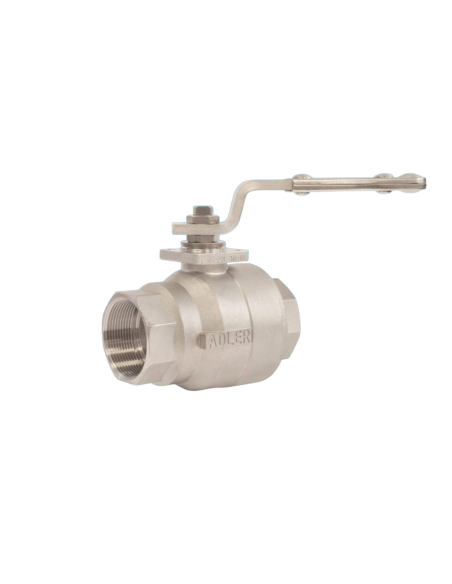

The Ball Valve Threaded - FP2 by ADLER is a robust, two-piece, full bore valve crafted from cast stainless steel, adhering to standards such as EN 12516-2, ISO 14313, ANSI B1.1, and DIN 3202 M3. Available in sizes ranging from ¼” to 2”, it supports a pressure rating of PN 40 to 100. The valve features ISO 7RP (GAS) and ASME B1.20.1 (NPT) threading, a chevron ring on the stem, and offers optional enhancements like an o-ring on the stem, fire-safe execution, and compliance with directives such as PED 14/68/UE and ATEX 14/34/UE. It is also certified for S.I.L. 3 safety systems and fugitive emission class “A” ISO 15848. Standard features include an anti blow-out proof stem, antistatic device, and top flange ISO 5211, with all valves undergoing 100% air testing under water at 100 psi. Optional accessories include PTFE seats, special alloys, stem and cryogenic extensions, various handle and actuator options, and more.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
Material (Options)
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 40
  • PN 63
  • PN 100
Seat (Options)
  • PTFE + Fiber Glass

Datasheet and documents

Description

Threaded ball valve 2 piece, full bore, manufactured from casted, construction in according to EN 12516-2; ISO 14313; ANSI B1.1; DIN 3202 M3.

Available size from ¼” to 2” in stainless steel.

Rating PN 40 ÷ 100.

Thread available ISO 7RP (GAS); ASME B1.20.1 (NPT).

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– according to  PED 14/68/UE directive

– according to  ATEX 14/34/UE directive

– degreased according to ISO23208 for oxigen service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

antistatic device BS 5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

special alloy (i.e. hastelloy-titanium-monel etc.)

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

pneumatic/electro-pneumatic positioner

special alloy (i.e. hastelloy-titanium-monel etc.)

Certificates

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
