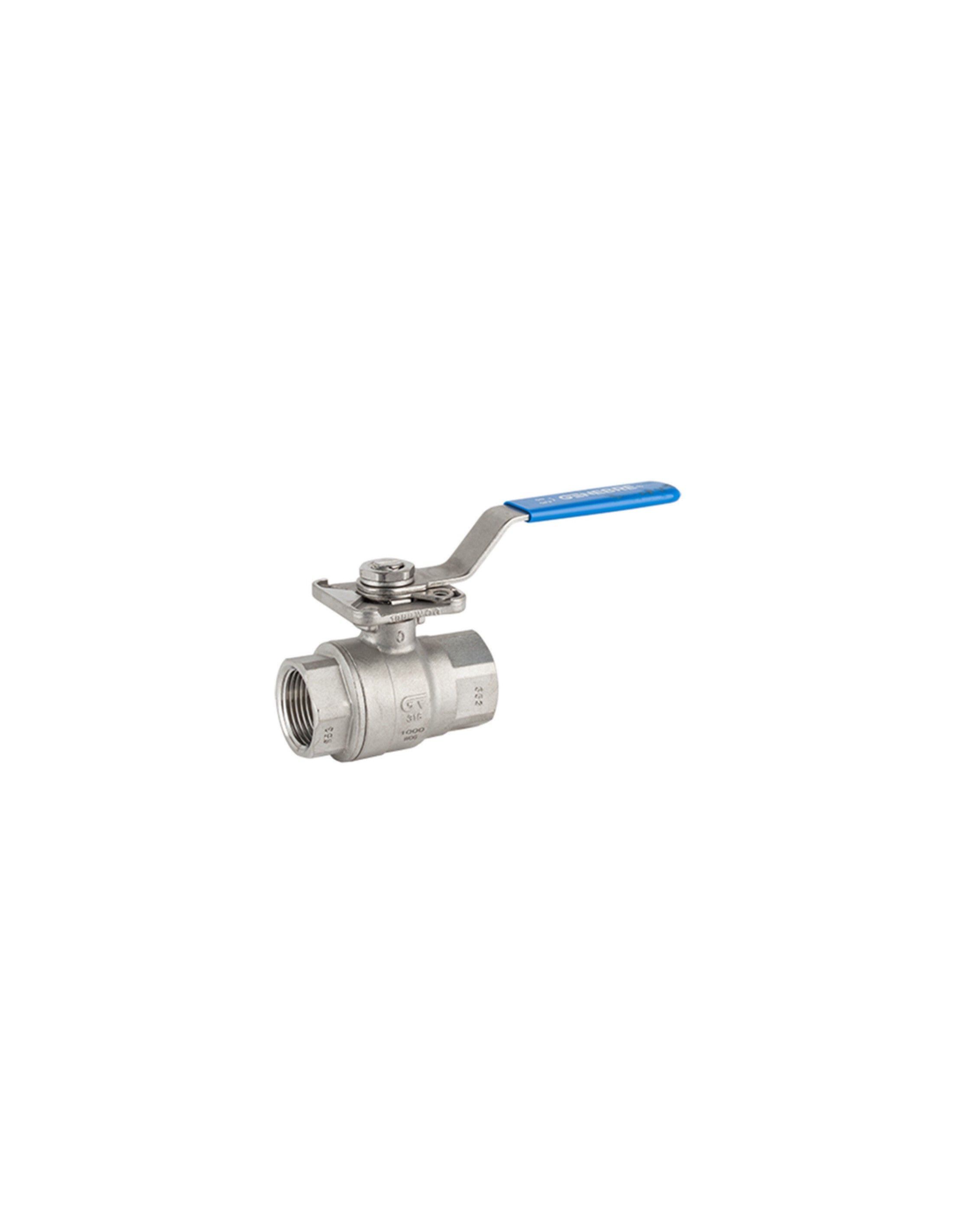

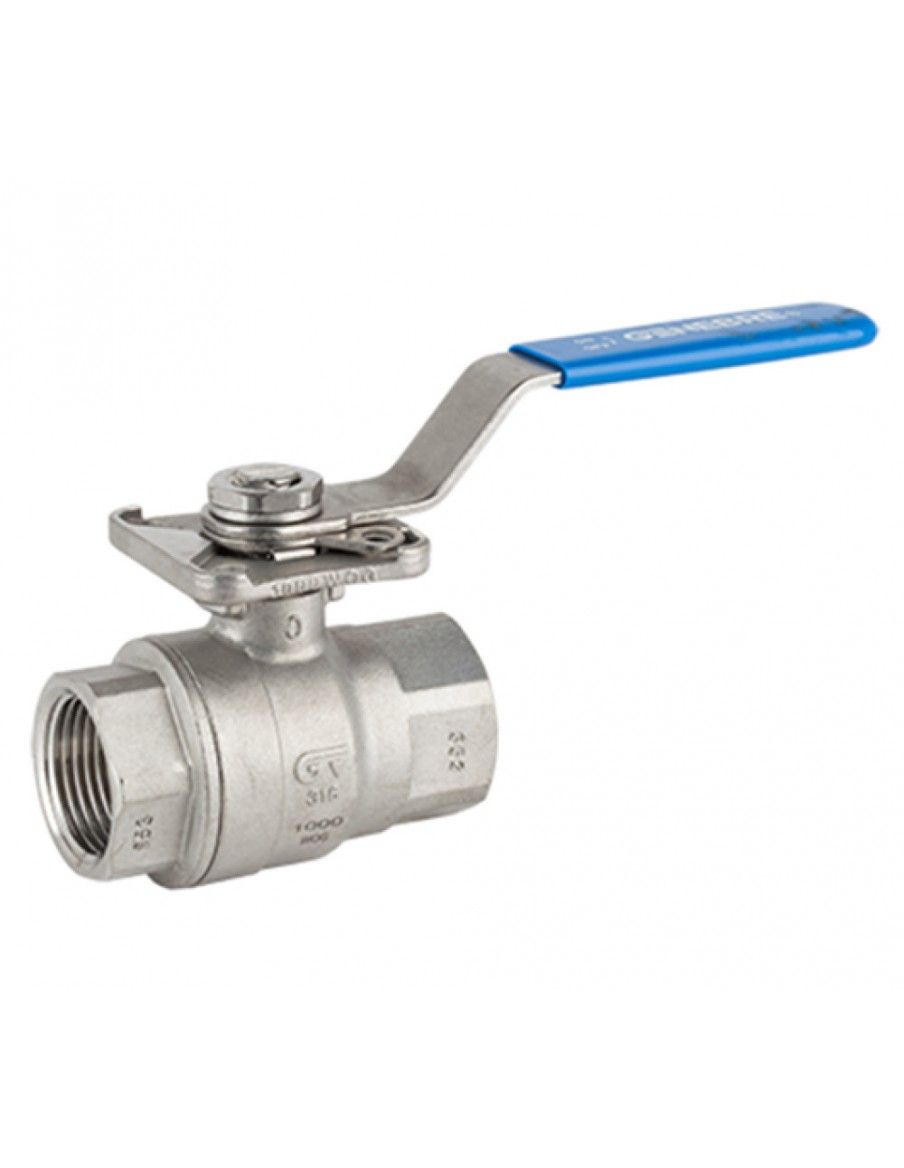

The Ball Valve with threaded ends from Genebre, model 2015, is a high-quality, two-piece full bore valve designed for efficient fluid control. It features a robust construction suitable for various applications, ensuring minimal pressure drop and maximum flow capacity. The valve's threaded ends allow for easy installation and secure connections, making it an ideal choice for both industrial and domestic use. Its full bore design ensures optimal performance by allowing unrestricted flow through the valve.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 63
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Const. AISI 316 seats and seals PTFE + GF gas threaded ends ISO 7-1 (EN 10226-1). O’ring stem: viton. PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211with locking system.

Reference: 2015

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2015 022PCS FULL BORE BALL V. 1/4"10.38/96
2015 032PCS FULL BORE BALL V. 3/8"10.2888/96
2015 042PCS FULL BORE BALL V. 1/2"10.3276/54
2015 052PCS FULL BORE BALL V. 3/4"10.5723/36
2015 062PCS FULL BORE BALL V. 1"10.7332/24
2015 072PCS FULL BORE BALL V. 1 1/4"11.3598/16
2015 082PCS FULL BORE BALL V. 1 1/2"11.9036/12
2015 092PCS FULL BORE BALL V. 2"12.8493/6

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY

calidad1.png AENOR - Homologación y Marcado N de AENOR para la línea de válvulas de gas.
OLIVER RODÉS Water Quality - Certificados de agua potable, confirmando el cumplimiento de los criterios sanitarios de la calidad del agua para el conusmo humano RD 140/2003 de 07 de febrero (legislación española) y Directiva (UE) 2020/2184 del Parlamento Europeo y del Consejo de 16 de diciembre de 2020, relativa a la calidad de las aguas destinadas al consumo humano por el Laboratorio Oliver Rodés.
HOMOLOGACIÓN CE - Homologación CE y otras específicas para mercados como Bielorrusia, Chile, Polonia, Rusia, Ucrania, Singapur y Arabia Saudí.
NORMA UNE-EN-ISO 9001 - Este sistema está certificado de acuerdo a la norma UNE-EN-ISO 9001: 2015, por parte del prestigioso organismo certificador alemán TÜV Rheinland..

CERTIFICADO ISO 9001

CERTIFICADO ISO 14001

CERTIFICADO CE

CERTIFICADO HIGIENICO RUSIA

CERTIFICADO TÉCNICO BIELORRUSIA REF.2830

CERTIFICADO TÉCNICO BIELORRUSIA

CERTIFICADO TÉCNICO UCRANIA

CERTIFICADO POLONIA
