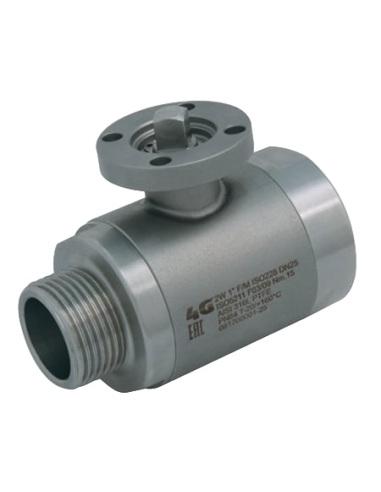

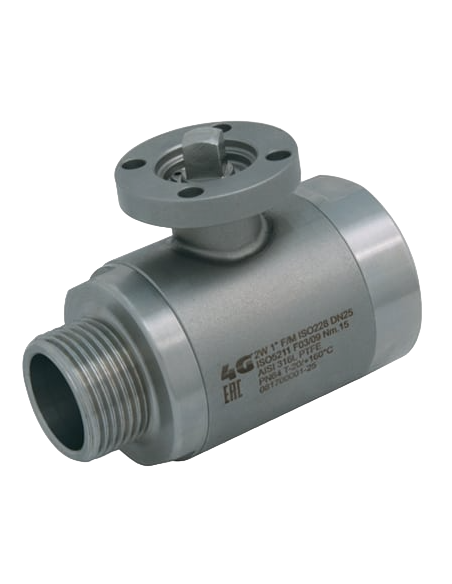

The Ball Valve STANDARD SEALS - ISO 228 F/M - 253009 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features a drive mechanism compatible with ISO 5211 and DIN 3337 flanges for actuator mounting. The valve connects via ISO 228 female/male threads and offers full flow capacity. Constructed from durable AISI 316L (1.4404) stainless steel, it is available in sizes ranging from 1/2” to 2”. The valve is equipped with modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. Its outer surface is sandblasted for a refined finish, and screws for actuator mounting are included. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 64
  • PN 100
  • PN 160
  • PN 200
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: ISO 228 female/male thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/2” to 2”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Sandblasted

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
