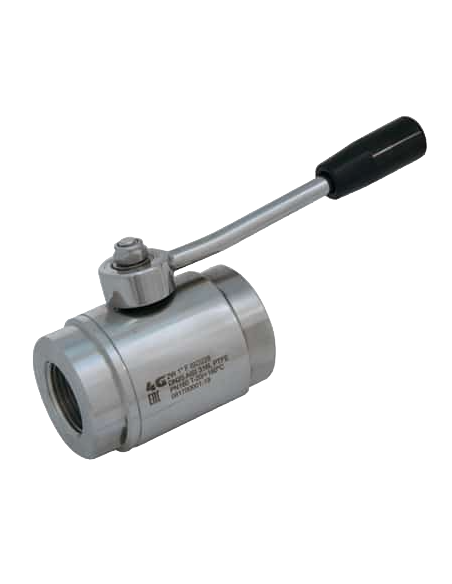

The Ball Valve STANDARD SEALS - ISO 228 F/F - 190101 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an inox lever drive and ISO 228 female/female threaded connections, ensuring compatibility and ease of installation. The valve offers full flow and is constructed from durable Aisi 316L (1.4404) stainless steel, available in sizes ranging from 1/4” to 1”. It is equipped with modified virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +170°C. The valve boasts a glazed outer finish for enhanced durability. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass or inox, extending the temperature range up to +200°C. Additionally, it meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 160
  • PN 200
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: ISO 228 female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 1”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Glazed

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with inox -20°C+200°C
