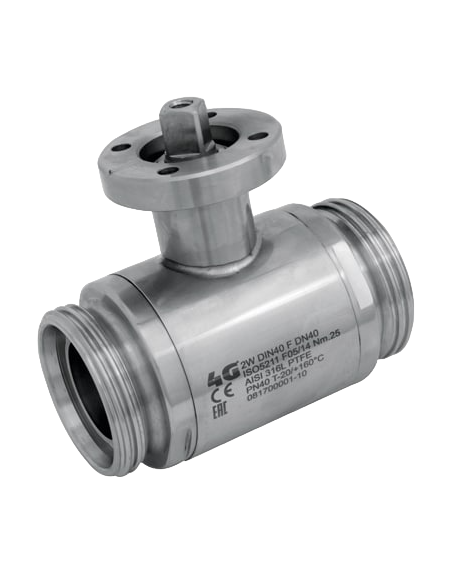

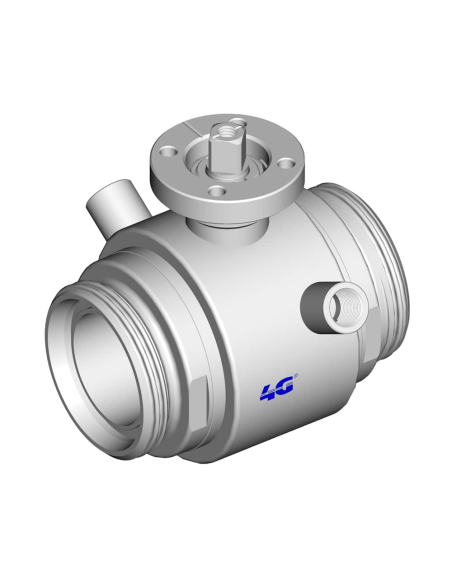

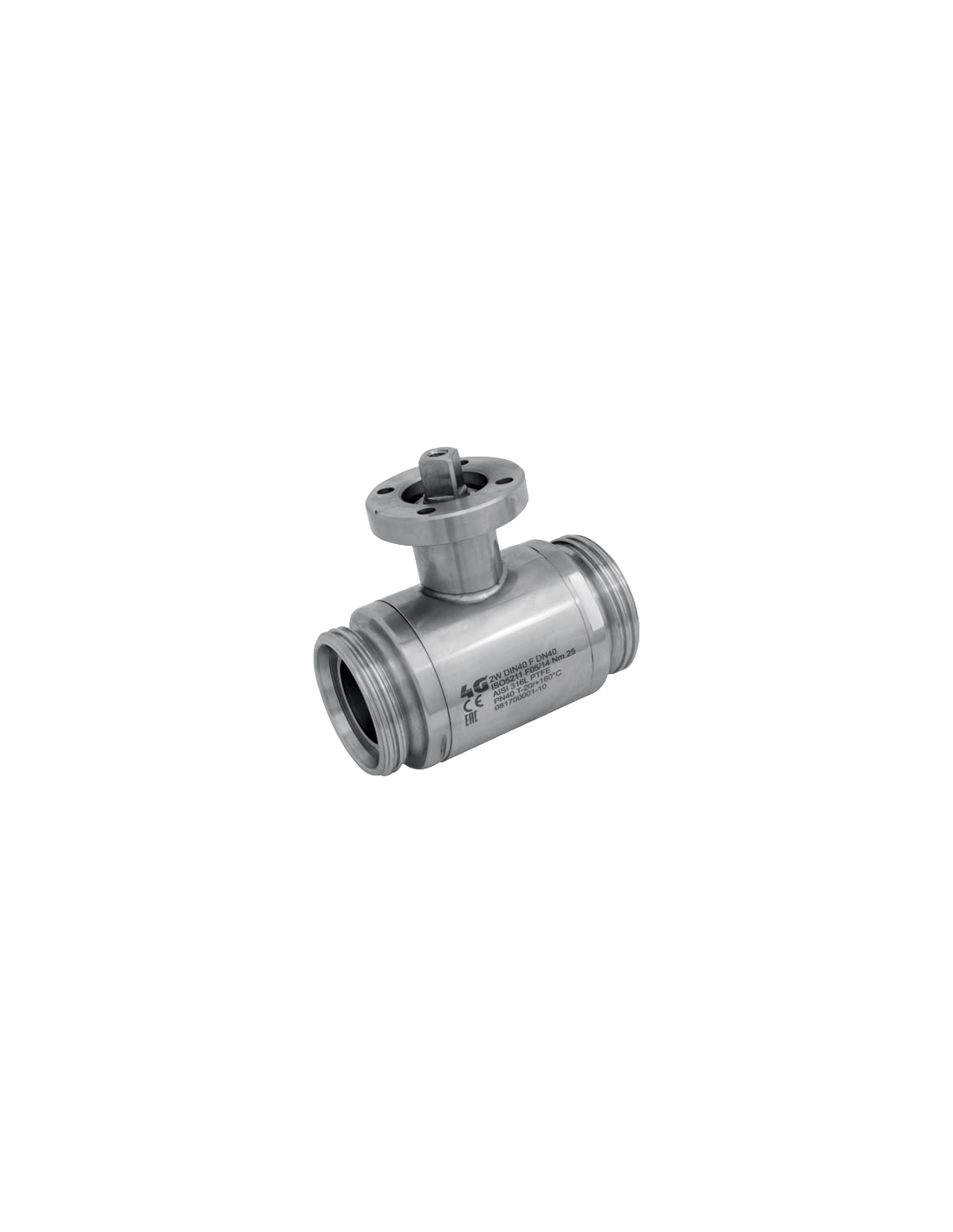

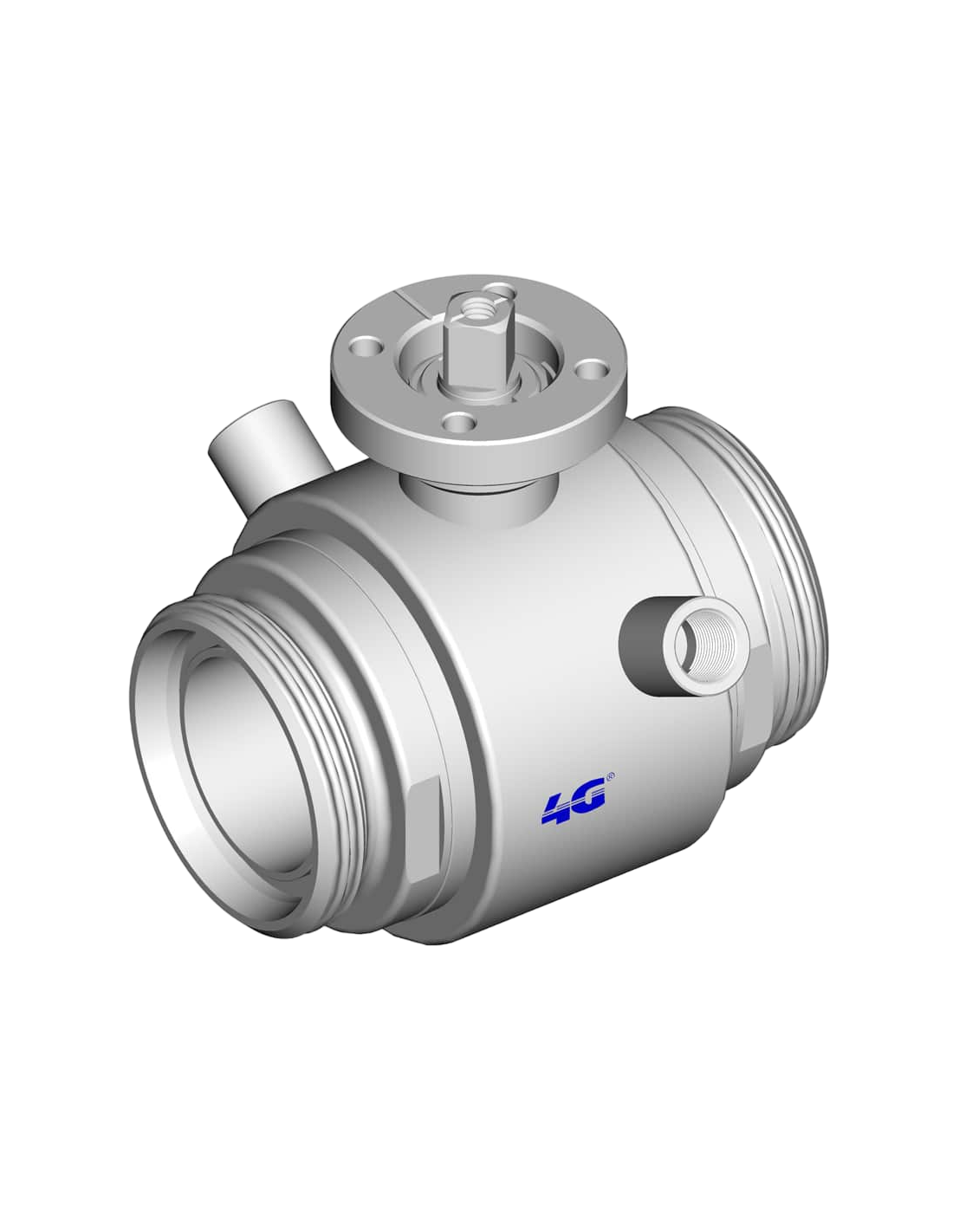

The Ball Valve STANDARD SEALS - DIN 11851 F/F - 103025 by 4G Ghidini is a versatile two-way ball valve designed for efficient fluid control. It features a drive compatible with ISO 5211 and DIN 3337 flanges for easy actuator mounting. The valve has a full flow design and is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, ensuring durability and corrosion resistance. Available in sizes ranging from DN10 to DN100, it connects via DIN 11851 female/female fittings. The valve operates within a temperature range of -20°C to +170°C and includes modified virgin P.T.F.E. seals for reliable performance. The polished outer finish enhances its appearance and hygiene. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements. Screws for actuator mounting are included, and the valve complies with M.O.C.A. CE 1935/2004 regulations.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

Two-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: DIN 11851 female/female

Flow: full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN25 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
