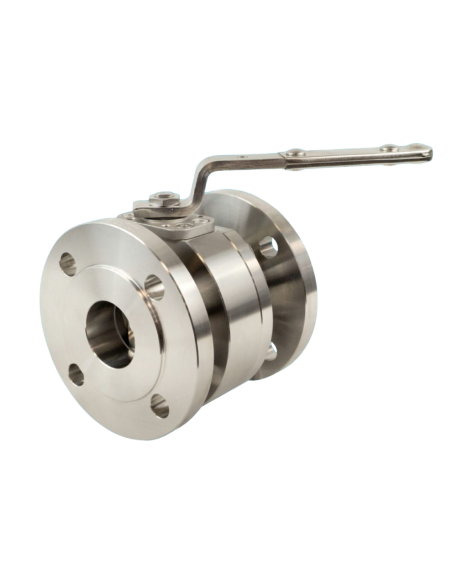

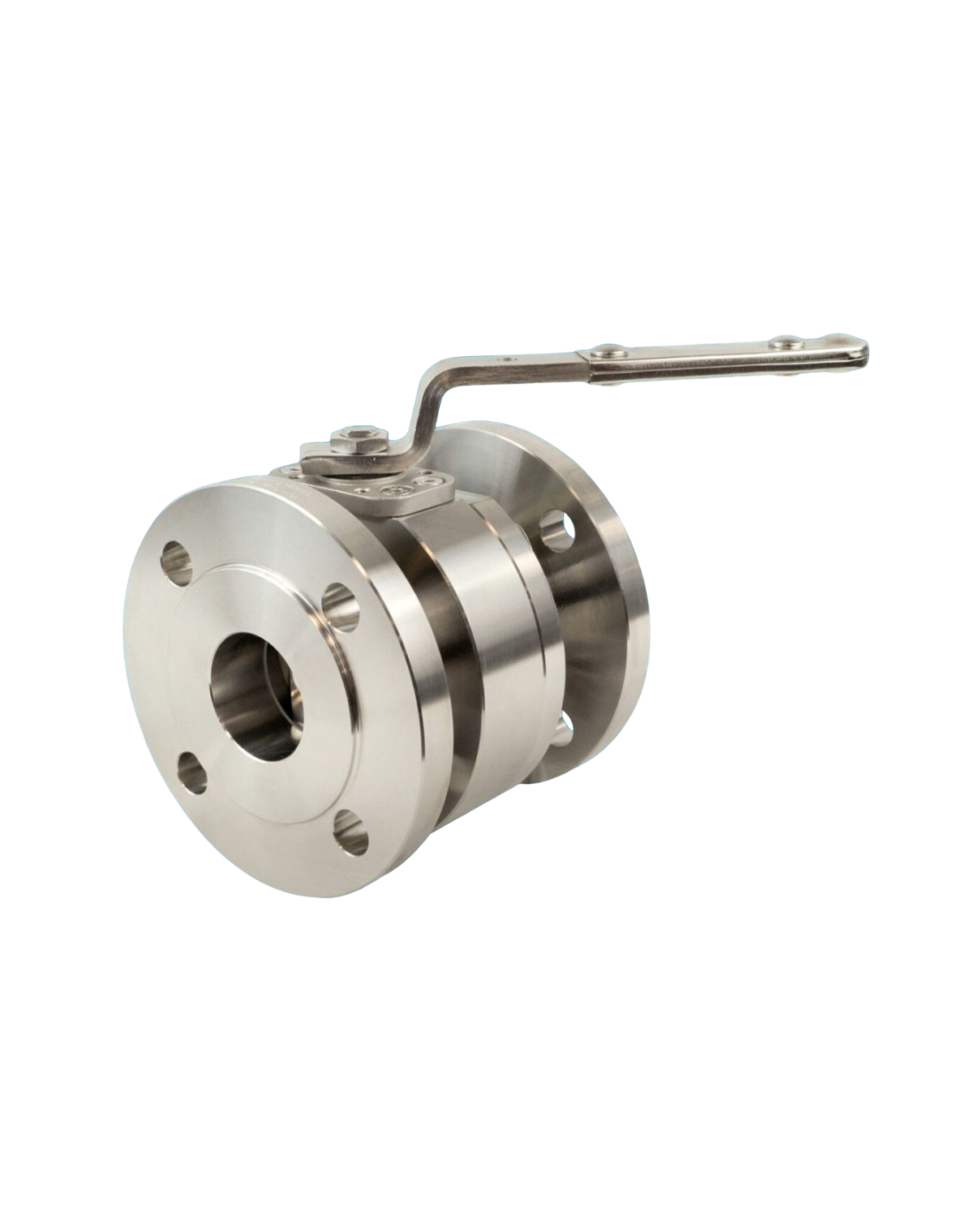

The Ball Valve Split Body - FM2 by ADLER is a robust and versatile 2-piece full bore valve designed for a wide range of industrial applications. It is constructed from either round bar or casted materials, adhering to standards such as EN 12516.2, ASME B16.34, and ISO 14313. Available in sizes ranging from DN 15 to DN 300, the valve is offered in both carbon steel and stainless steel, with a pressure rating of PN 10 to 40. Key features include double seals on the body/end junction, a chevron ring on the stem, and an anti blow-out proof stem. The valve can be customized with options like fire-safe execution, cryogenic execution, and compliance with various directives such as PED, TPED, and ATEX. It is also certified for safety system S.I.L. 3 and fugitive emission class “A” ISO 15848. Standard production includes an antistatic device, top flange ISO 5211, and 100% air testing under water at 100 psi. Optional accessories include PTFE seats, stem extensions, various actuators, and manual gear boxes.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Ball valve 2 piece SPLIT BODY type full bore, manufactured from round bar or casted, construction in according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; ISO 14313, EN 558 (Basic series 27).

Available size from DN 15 to DN 300 in carbon steel and stainless steel.

Rating PN 10 ÷ 40.

Double seals on body/end junction (patent n°00216919)

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certifications

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
