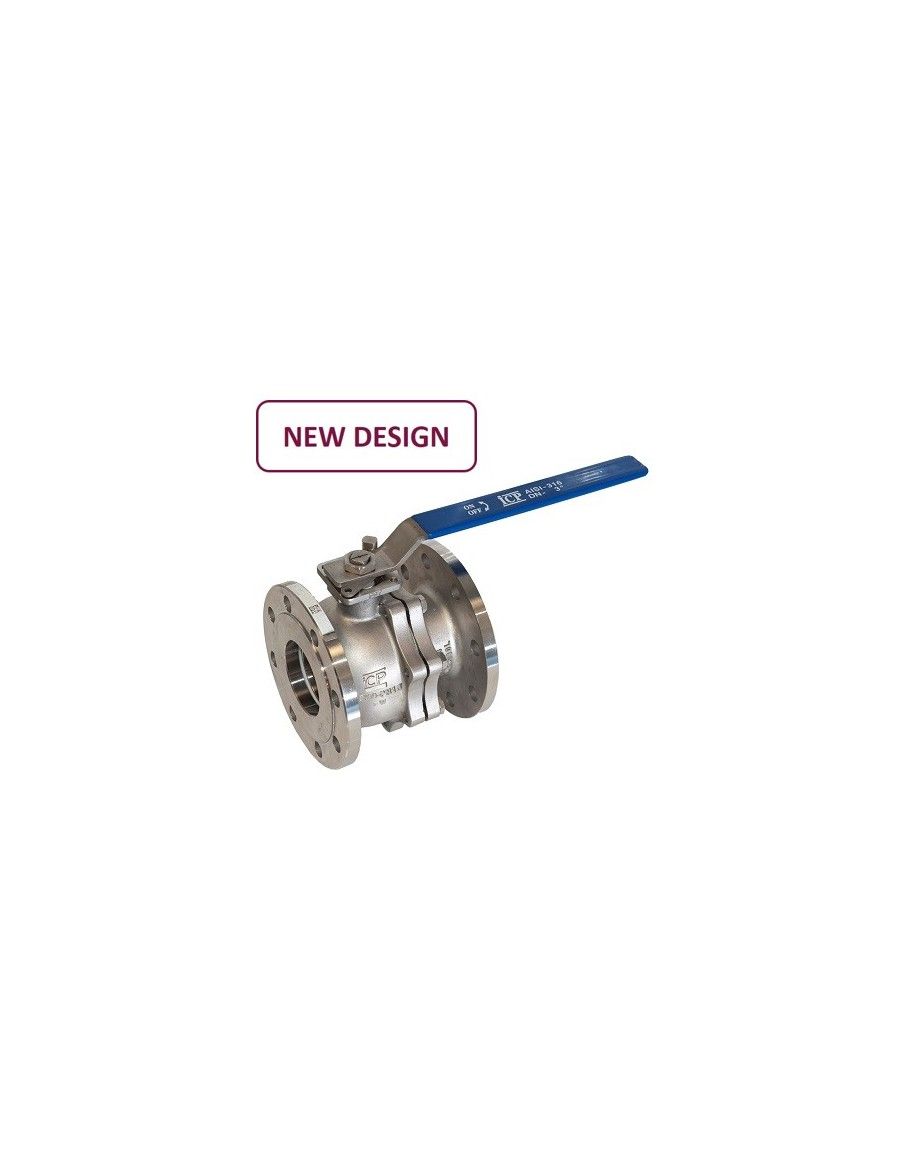

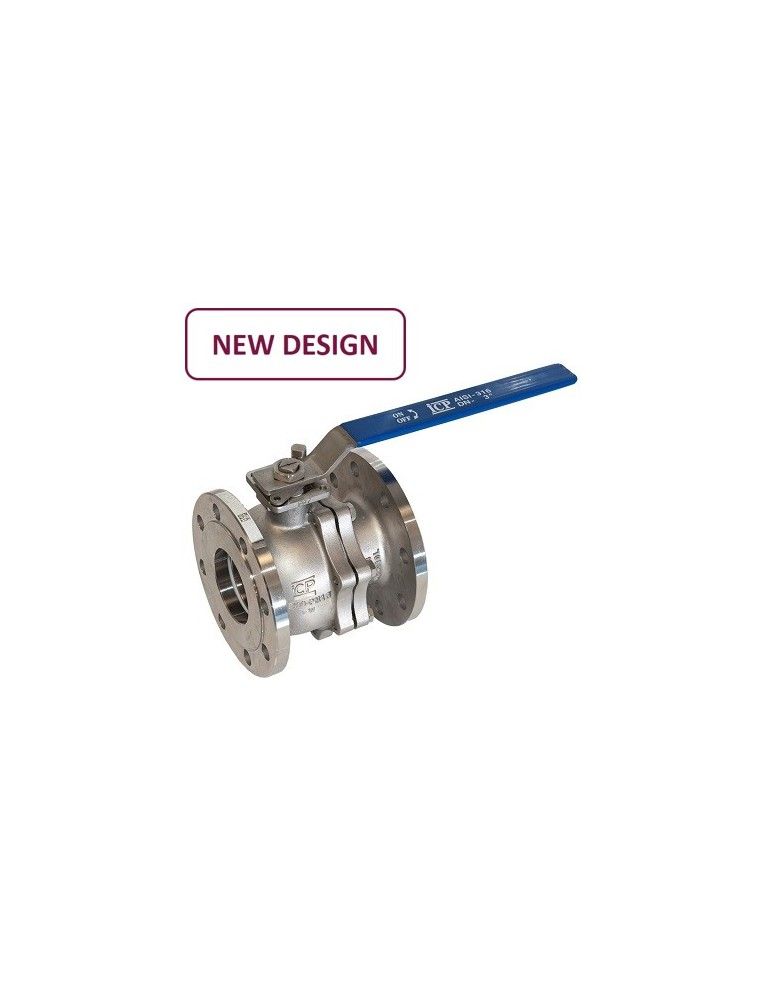

The Ball Valve PN16/40 - 154/156 by ICP Valves is a two-piece, full bore valve designed for high performance and reliability. It features flanges rated at PN40 for sizes DN15 to DN50 and PN16 for sizes DN50 to DN200. Constructed with a robust stainless steel (1.4408) body and an AISI-316 ball, it ensures durability and resistance to corrosion. The valve includes PTFE seats for enhanced sealing and an antistatic device for safety. It also comes with a locking device for secure operation. The valve is compatible with ISO 5211 connections, allowing for easy mounting of pneumatic or electrical actuators. It adheres to the face-to-face dimensions specified in EN 558-1 and is certified for CE and ATEX standards, ensuring compliance with European safety and quality regulations.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4408
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

Two pieces Ball Valves, Full Bore, Flanges PN40 (from DN15 to DN50) and PN16 (from DN50 to DN200).

Stainless Steel (1.4408) Body, AISI-316 Ball and PTFE seats. Antistatic Device. Locking Device.

The valve is equipped with ISO 5211 connection to mount pneumatic or electrical actuators.

The face-to-face of the valve is according with En 558-1.

The valves are certified CE and ATEX.
