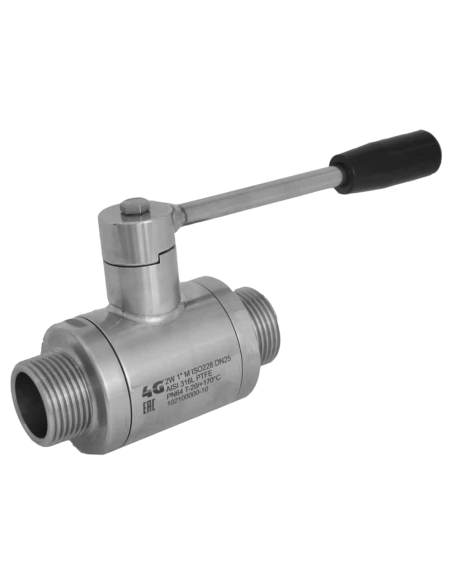

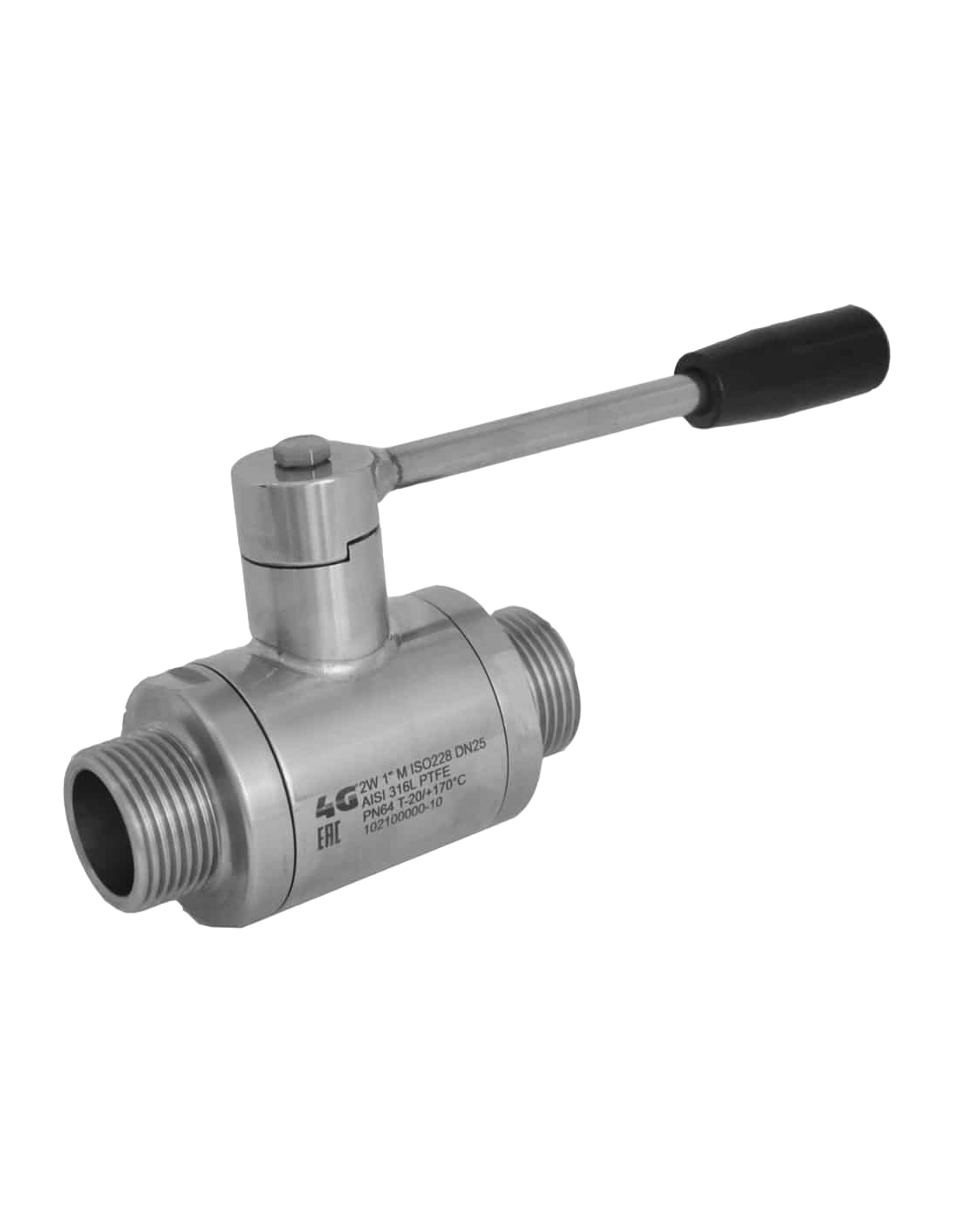

The Ball Valve ISO 228 M/M - 100117 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an Inox lever drive and ISO 228 male/male connections, ensuring compatibility and ease of installation. The valve offers full flow capacity and is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, providing durability and resistance to corrosion. Available in sizes ranging from 1/4” to 4”, it is equipped with modified virgin P.T.F.E. seals for reliable sealing performance. The valve operates within a temperature range of -20°C to +170°C and has a polished outer finish for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific applications, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene, catering to different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228 M/M
Material (Options)
  • S.S. 304L
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE + Fiber Glass
  • PTFE + Carbographite

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: ISO 228 male/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished



On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
