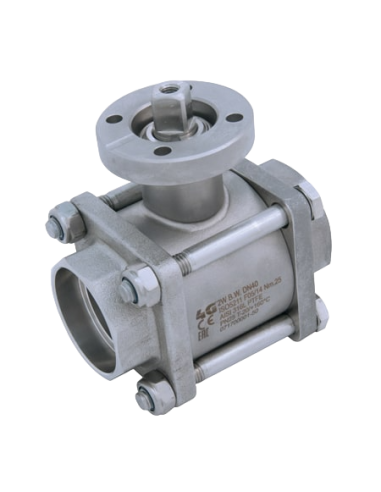

The Ball Valve INTEGRAL SEALS - SOCKET WELDING - 533040 by 4G Ghidini is a two-way, three-piece ball valve designed for reliable flow control. It features an "Integral Seal" design and is equipped with an ISO 5211 – DIN 3337 flange for actuator mounting. The valve supports socket-welding connections and offers full flow capabilities. Constructed from AISI 316L (1.4404) stainless steel, it is available in sizes ranging from DN8 to DN100. The seals are made from virgin P.T.F.E., ensuring durability and performance within an operating temperature range of -20°C to +160°C. The valve has a sandblasted outer finish and includes screws for actuator mounting. Optional features include an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. CE 1935/2004 certification for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • Socket Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces “Integral Seal”

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: Socket-welding

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN8 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Sandblasted

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
