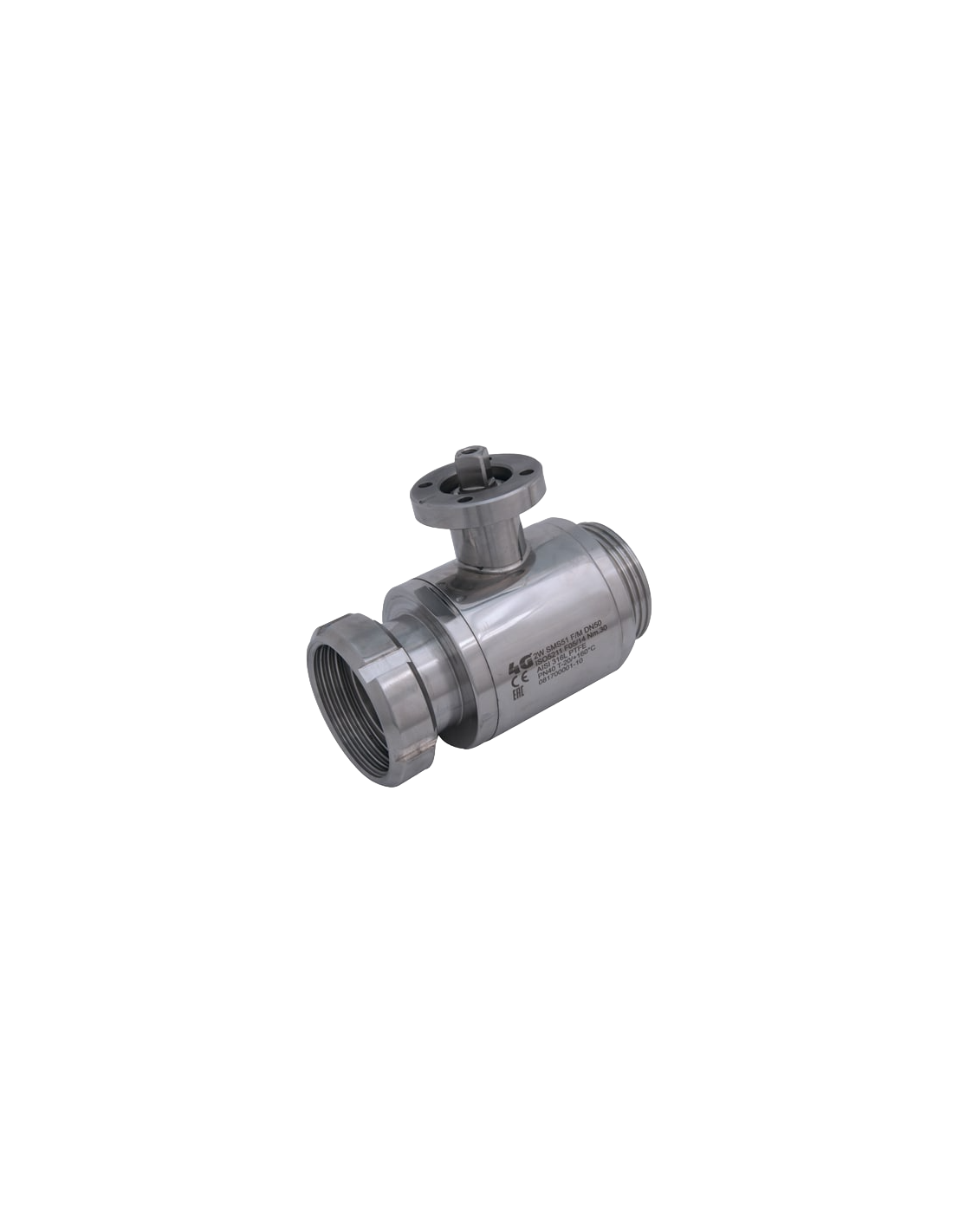

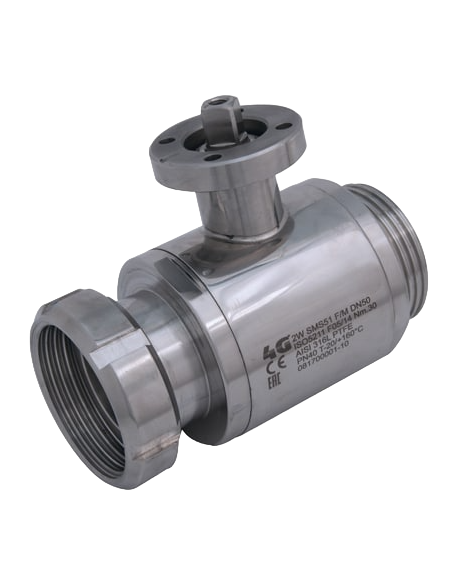

The Ball Valve INTEGRAL SEALS - SMS F/M - 133045 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator mounting and SMS female/male connections, ensuring compatibility with various systems. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it offers durability and resistance to corrosion. The valve supports full flow and is available in sizes ranging from DN20 to DN100. It is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C. The polished outer finish enhances its appearance and cleanliness. Screws for mounting the actuator are included. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, extending the temperature range to -20°C to +170°C. The valve also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: SMS female/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
