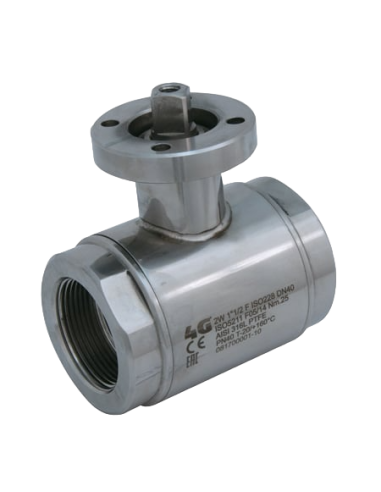

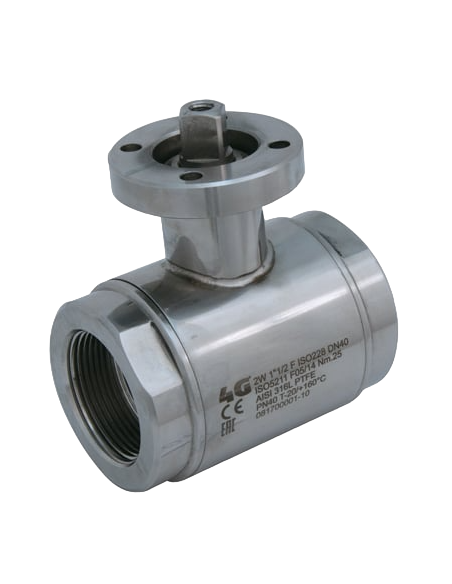

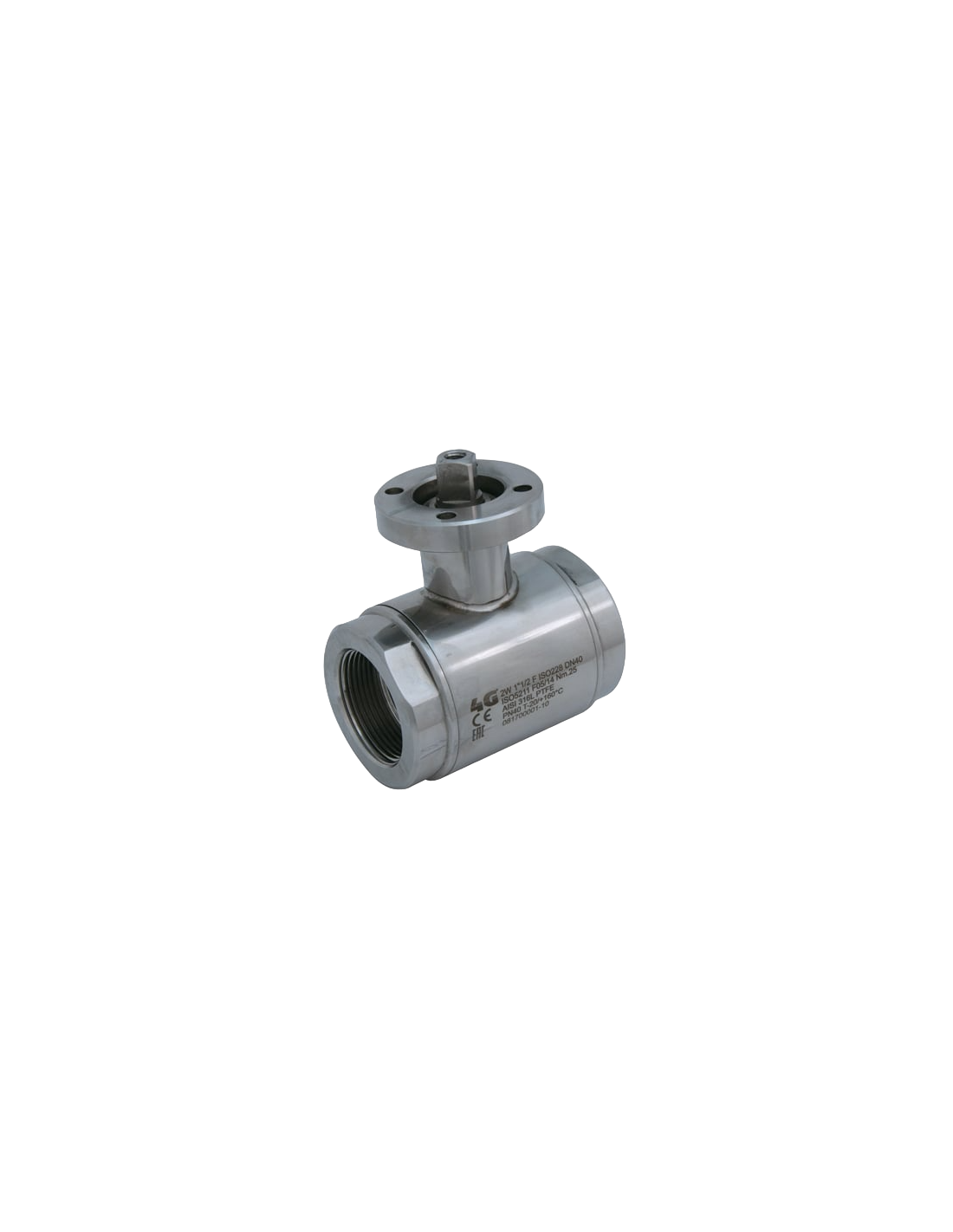

The Ball Valve INTEGRAL SEALS - NPT F/F - 133004 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an Inox lever drive and NPT female/female threaded connections, ensuring secure and reliable installation. Constructed from high-quality Aisi 316L (1.4404) stainless steel, this valve offers durability and resistance to corrosion. It supports full flow and is available in sizes ranging from 1/4” to 4”. The valve is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C. The polished outer finish enhances its aesthetic appeal and ease of cleaning. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, extending the temperature range to -20°C to +170°C. Additionally, it meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection: NPT female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: From 1/4” to 4”

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
