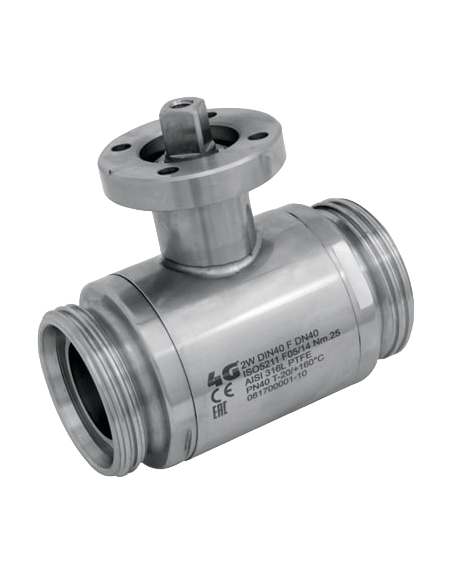

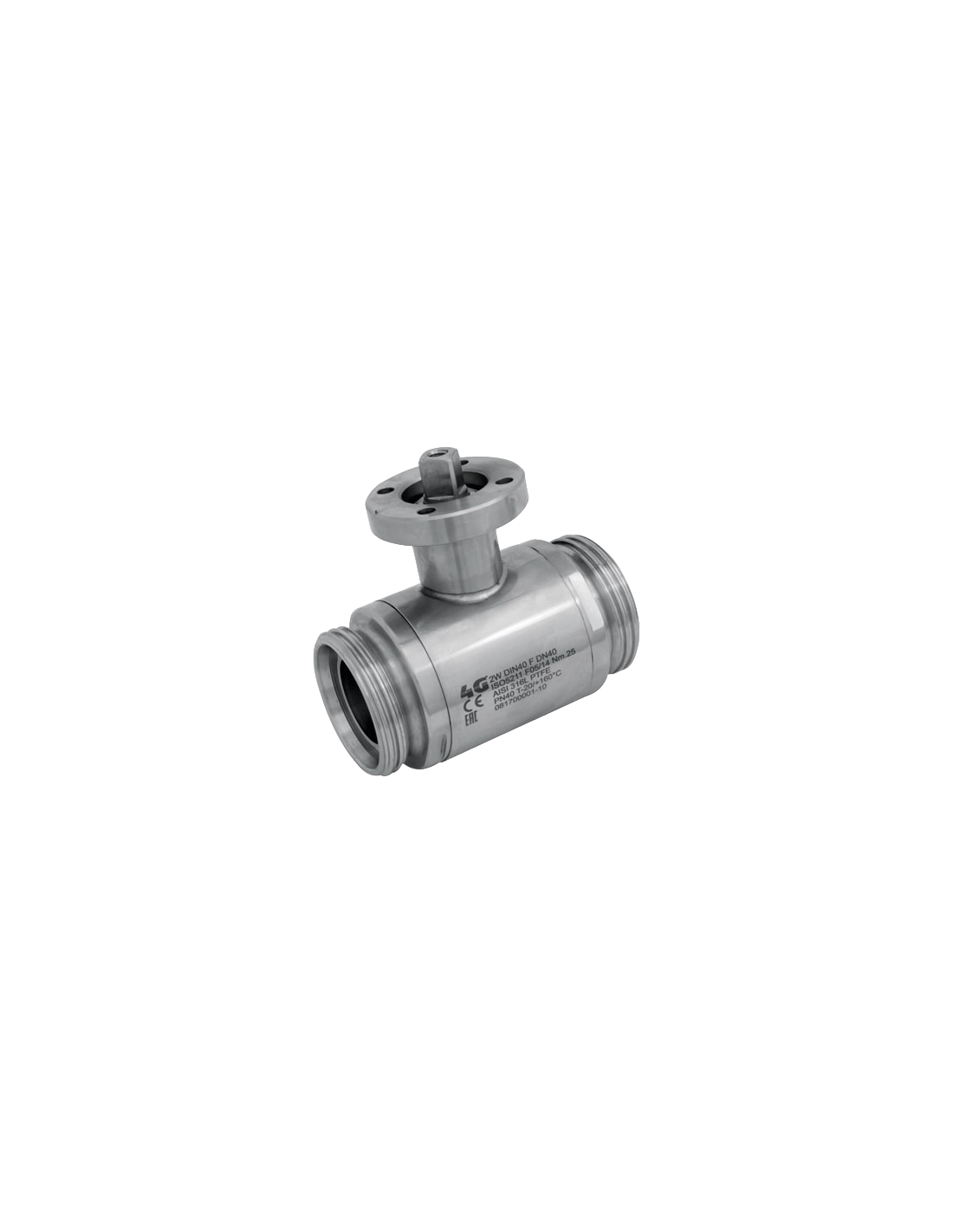

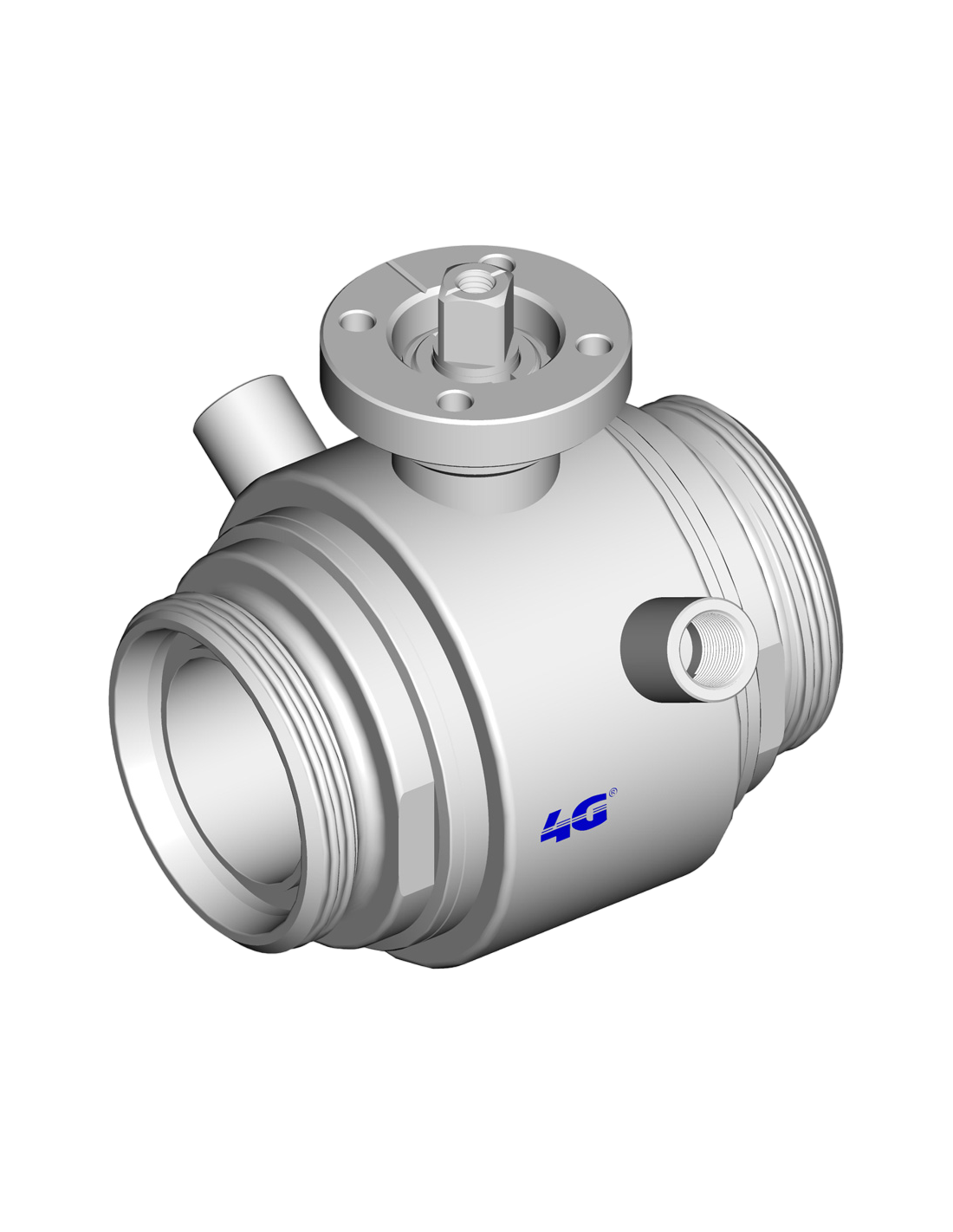

The Ball Valve INTEGRAL SEALS - DIN 11851 F/F - 133025 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator drive and DIN 11851 female/female connections, ensuring compatibility with various systems. The valve is constructed from high-quality Aisi 316L (1.4404) stainless steel, offering durability and resistance to corrosion. It supports full flow and is available in sizes ranging from DN10 to DN100. The seals are made from virgin P.T.F.E., suitable for operating temperatures between -20°C and +160°C. The valve has a polished outer finish and includes screws for mounting an actuator. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass for extended temperature range up to +170°C. It also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: DIN 11851 female/female

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN25 to DN100

Seals: virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
