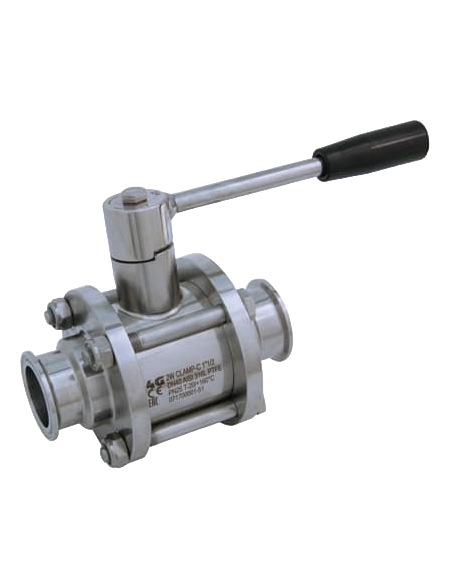

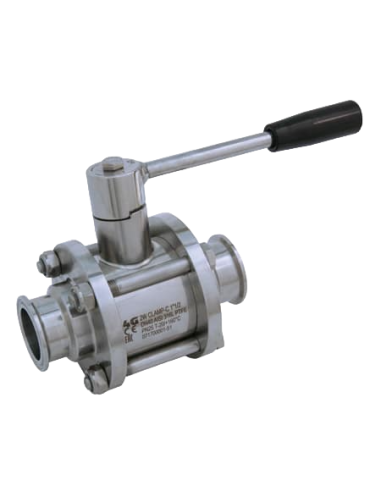

The Ball Valve FOR BS PIPE - 540130 by 4G Ghidini is a two-way, three-piece "Integral Seal" ball valve designed for use with BS/OD (ASTM A270) tubes. It features an inox lever drive and a CLAMP connection compliant with DIN 32676 TAB.4 REIHE C standards. The valve supports both full and reduced flow and is constructed from Aisi 316L (1.4404) stainless steel, with sizes ranging from 1/2″ to 4″. It is equipped with virgin P.T.F.E. seals and operates within a temperature range of -20°C to +160°C. The valve has a polished outer finish and offers optional features such as an antistatic device with ATEX certification (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and compliance with M.O.C.A. CE 1935/2004.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces “Integral Seal”

Drive: Inox lever

Connection: CLAMP normative DIN 32676 TAB.4 REIHE C

For TUBE according to normative BS/OD (ASTM A270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from 1/2″ to 4″

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
