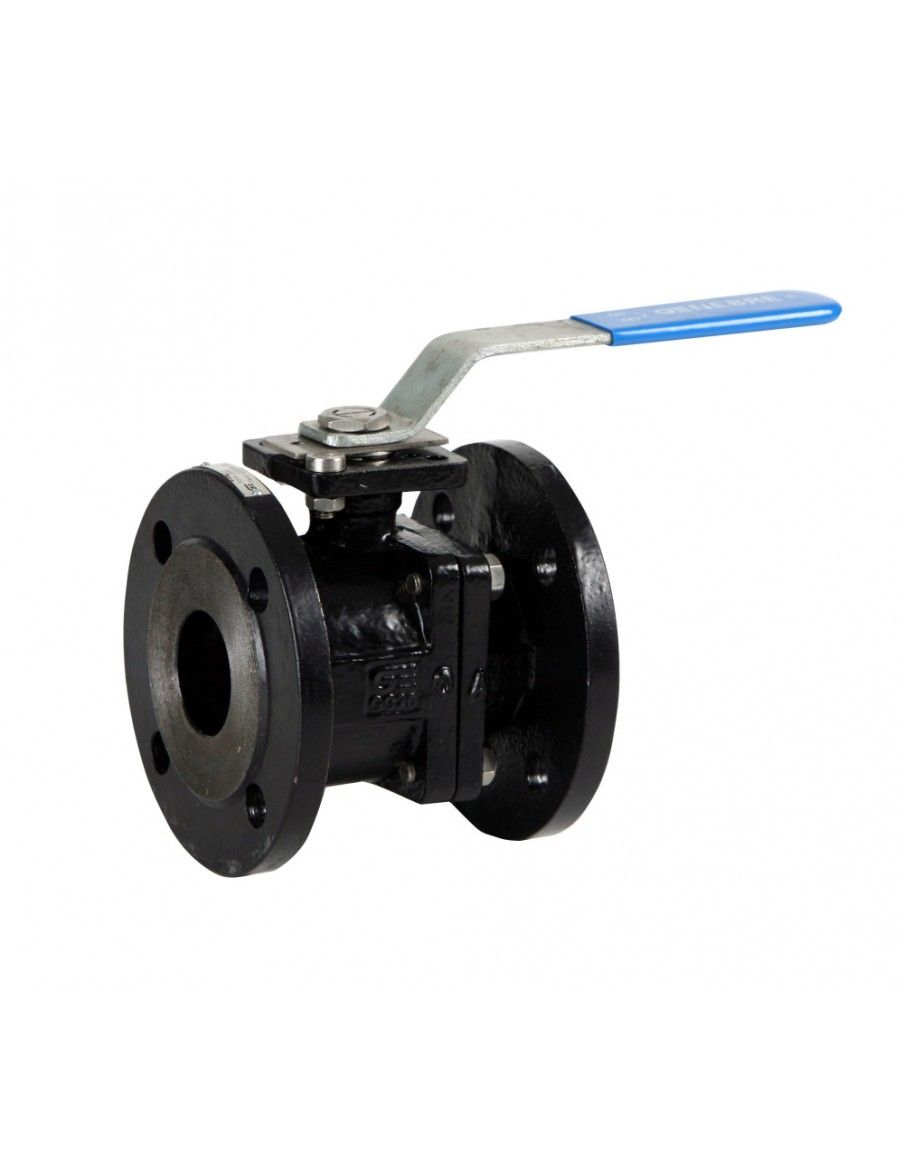

The Ball Valve with flanged ends from Genebre is a high-quality, 2-piece full bore valve designed for efficient fluid control. It features flanges conforming to DIN PN 16 standards, ensuring reliable performance and compatibility with various piping systems. The full bore design allows for maximum flow capacity, making it ideal for applications requiring minimal pressure drop. This valve is suitable for a wide range of industrial applications, offering durability and ease of maintenance.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-18U-LT
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Body: ductile iron GGG-40. Ball and stem: AISI 304.

Seats: PTFE + 15% GF. Stem o’ring: viton.

Max. pressure: 16 kg/cm2. Temp. -30ºC +180ºC.

Manually operated by handle with locking system.

L: S/DIN 3202 F-4.

Reference: 2525

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2525 042PC FULL BORE B.V. FLANGE 1/2"12.3381/10
2525 052PC FULL BORE B.V. FLANGE 3/4"12.8891/8
2525 062PC FULL BORE B.V. FLANGE 1"13.9631/6
2525 072PC FULL BORE B.V.FLANG 1 1/4"15.4331/3
2525 082PC FULL BORE B.V.FLANG 1 1/2"17.1971/2
2525 092PC FULL BORE B.V. FLANGED 2"19.11/2
2525 102PC FULL BORE B.V.FLANG 2 1/2"113.3931/1
2525 112PC FULL BORE B.V. FLANGED 3"118.1541/1
2525 122PC FULL BORE B.V. FLANGED 4"125.4471/1
2525 132PC FULL BORE BALL VALVE FLANGES DIN PN-16 5"135.3631/1
2525 142PC FULL BORE BALL VALVE FLANGES DIN PN-16 6"149.7831/1
2525 162PC FULL B.BALL VALVE FLANGES DIN PN-16 8"194.8331/1
