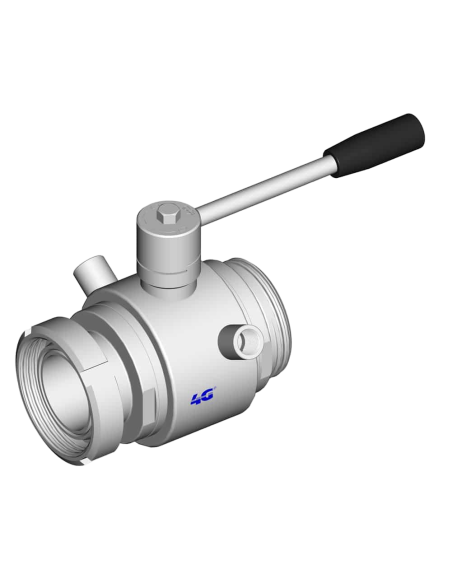

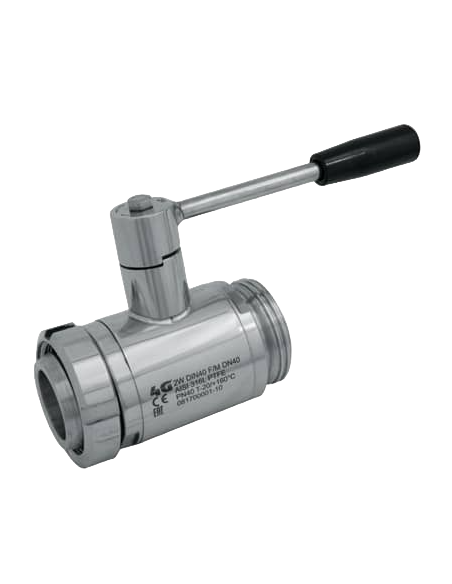

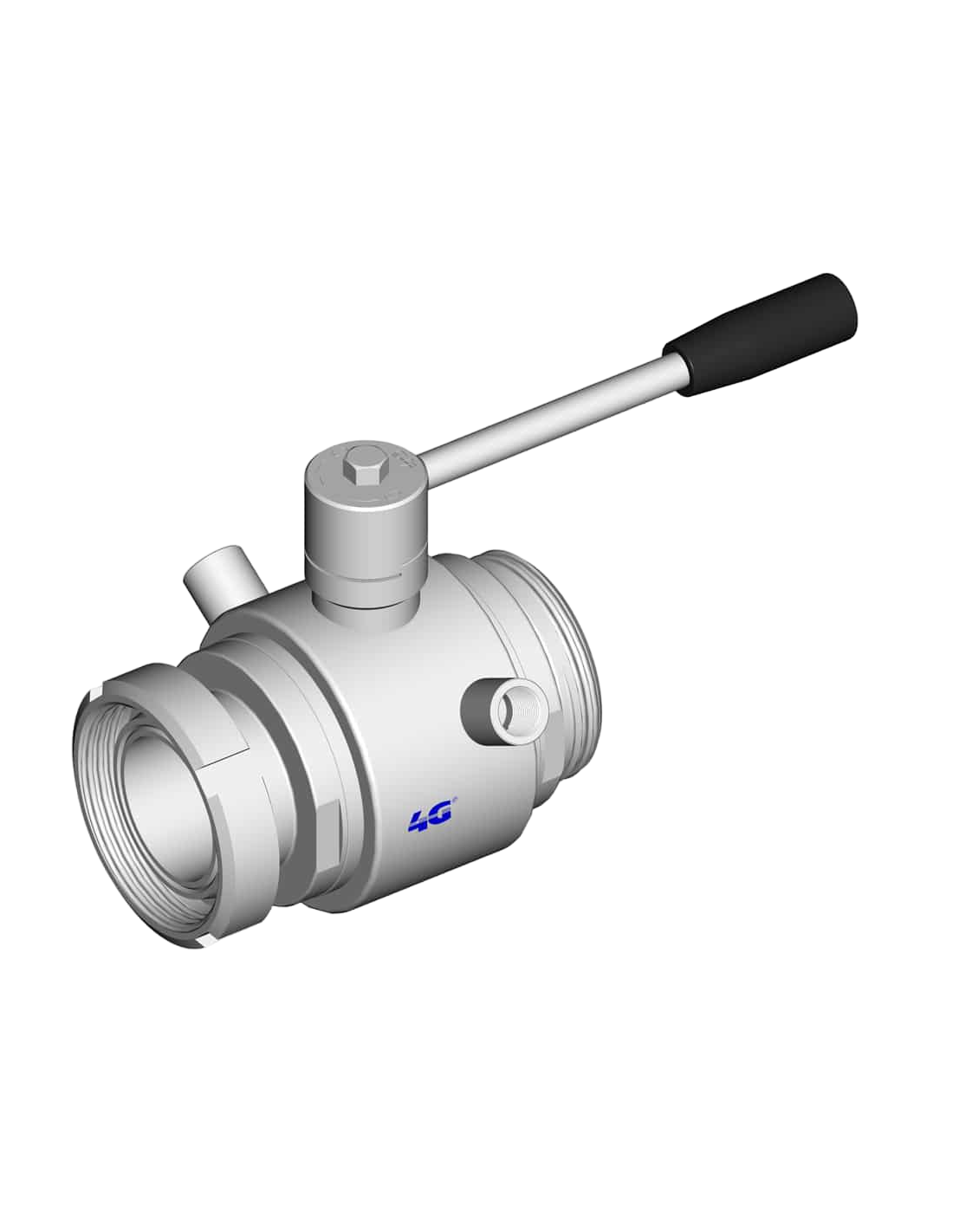

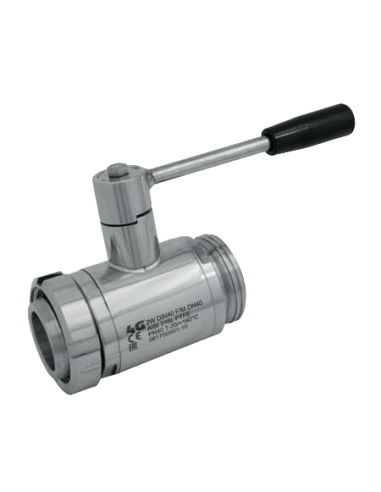

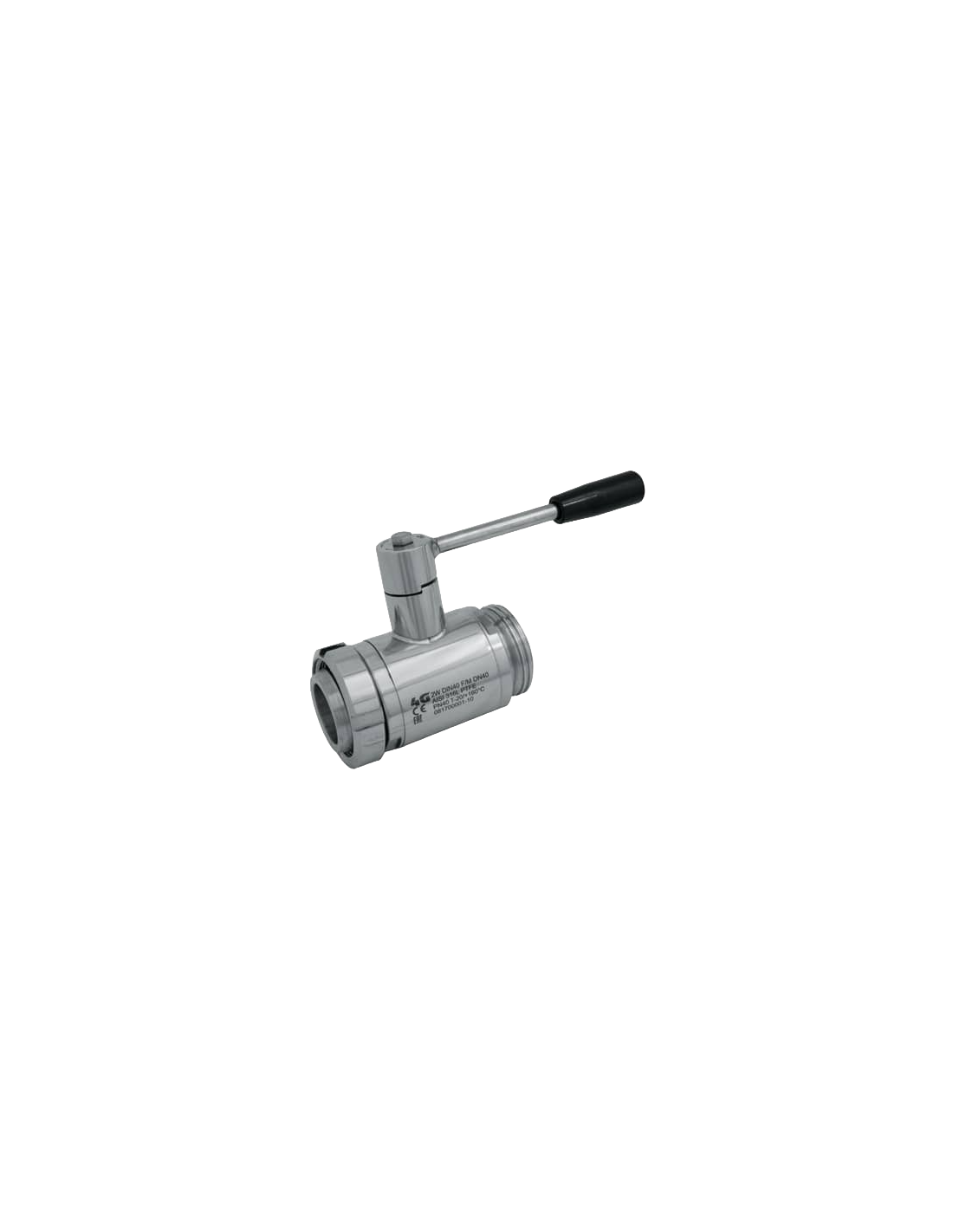

The Ball Valve DIN 11851 F/M - 100126 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an inox lever for operation and connects via DIN 11851 female/male fittings. The valve supports full flow and is constructed from high-quality materials, including Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel. Available in sizes ranging from DN10 to DN100, it is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. The valve boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and various seal materials for different temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851 F/M
Material (Options)
  • S.S. 304L
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE + Fiber Glass
  • PTFE + Carbographite

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: DIN 11851 female/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
