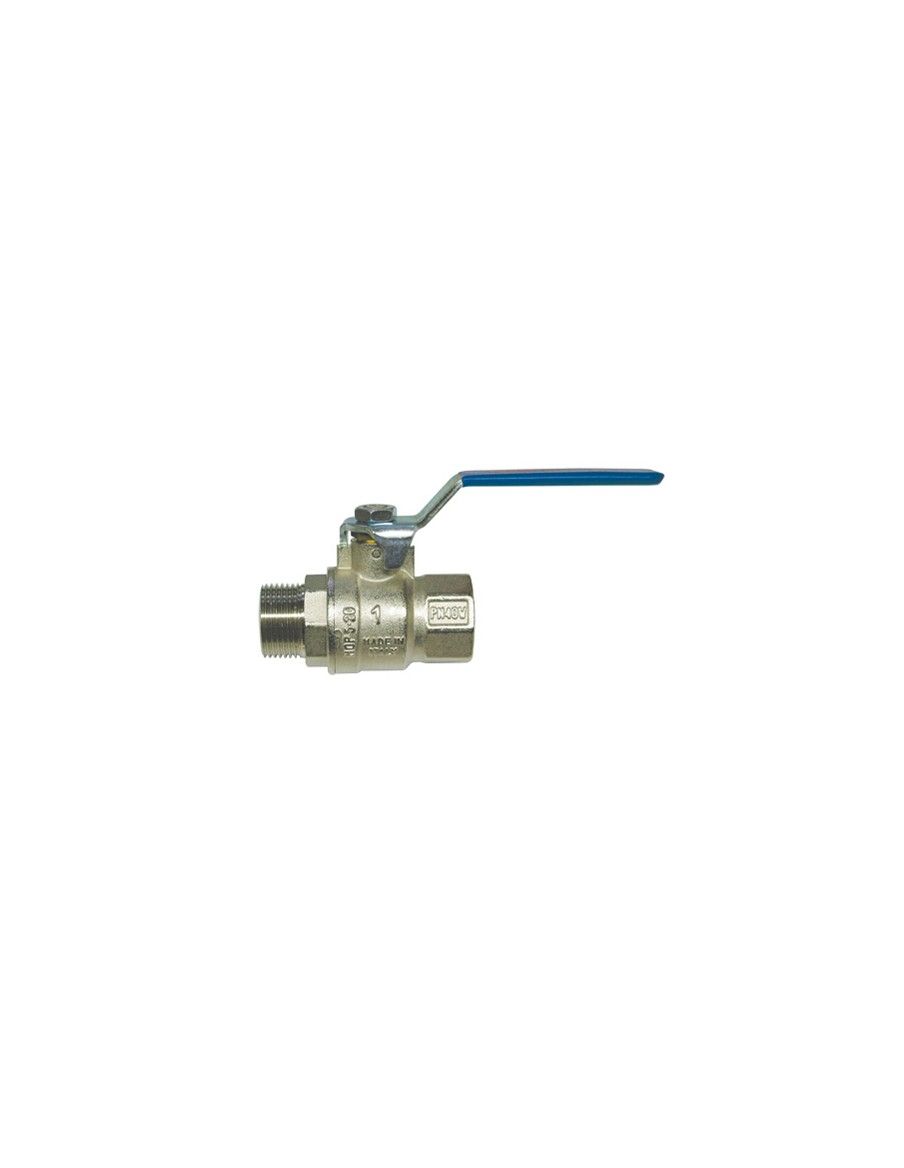

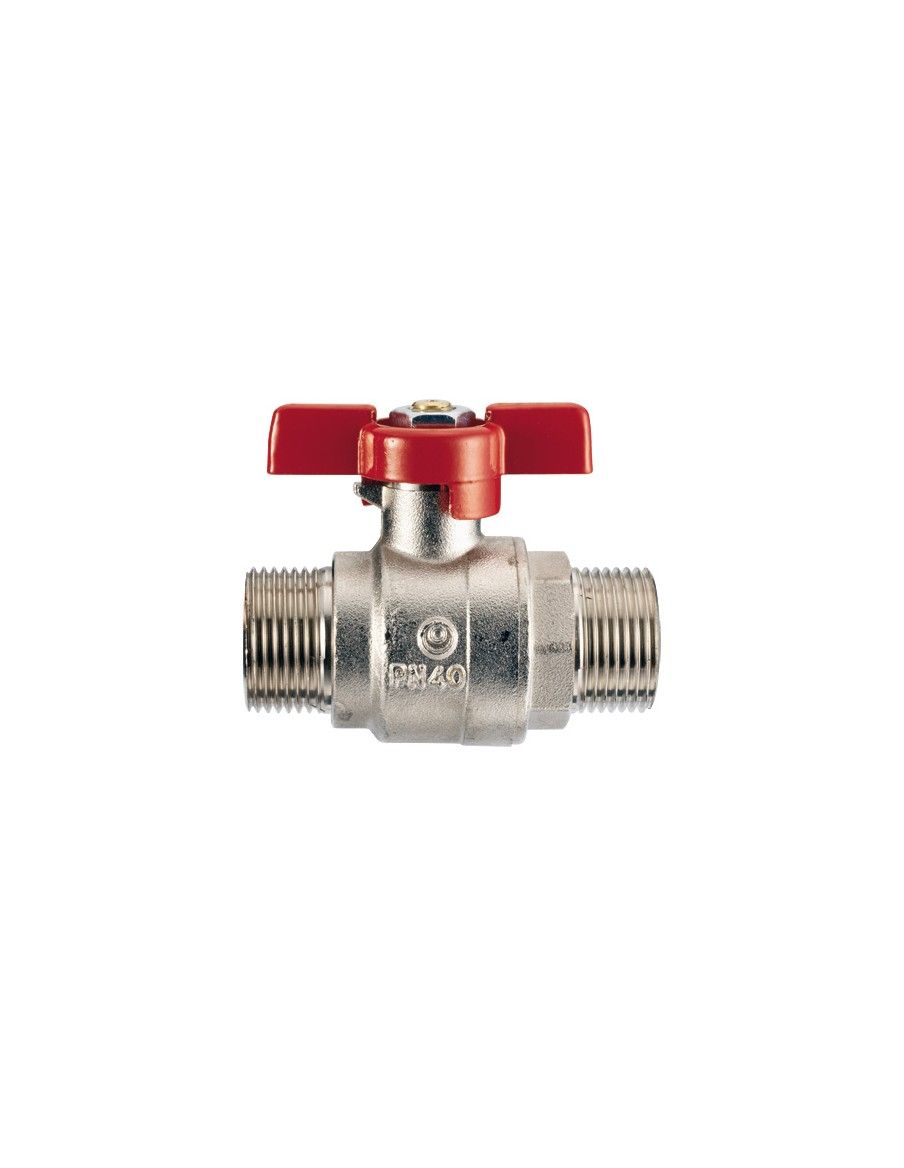

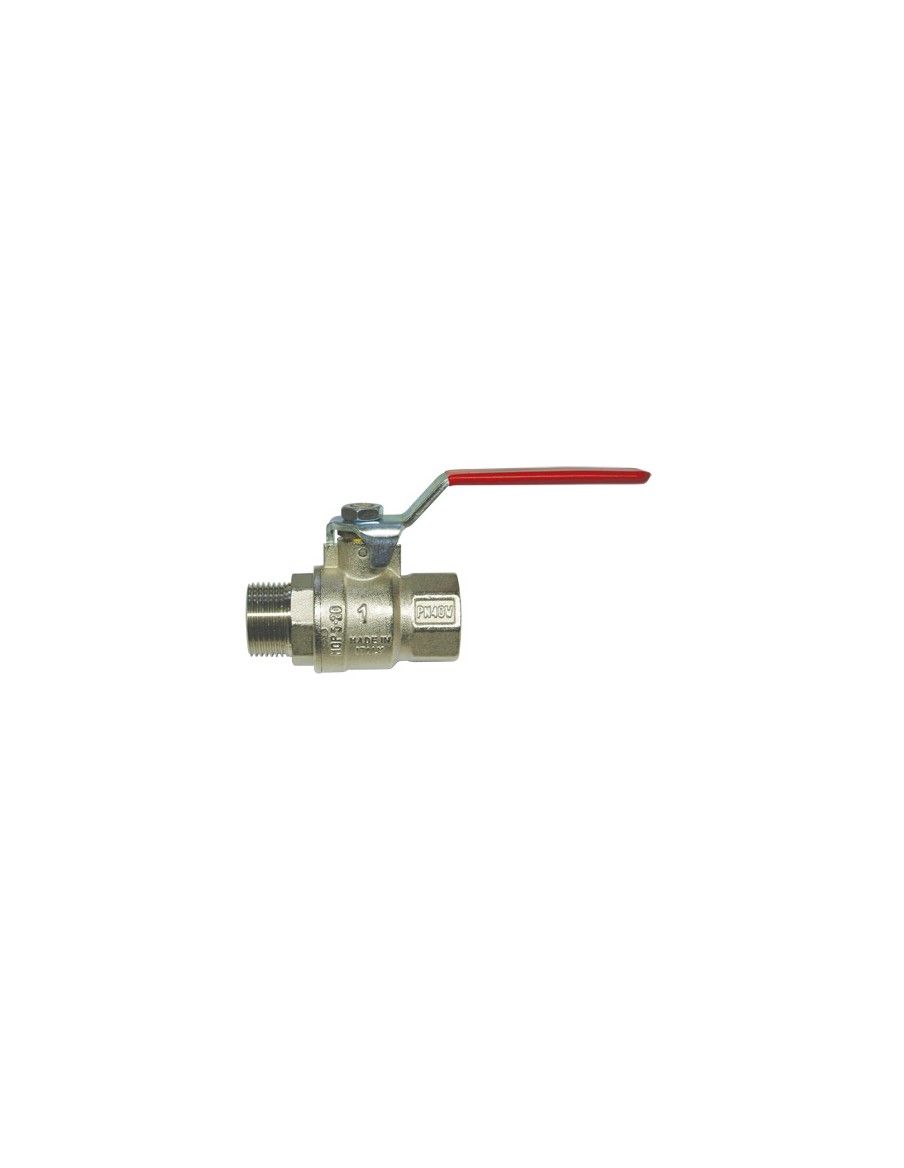

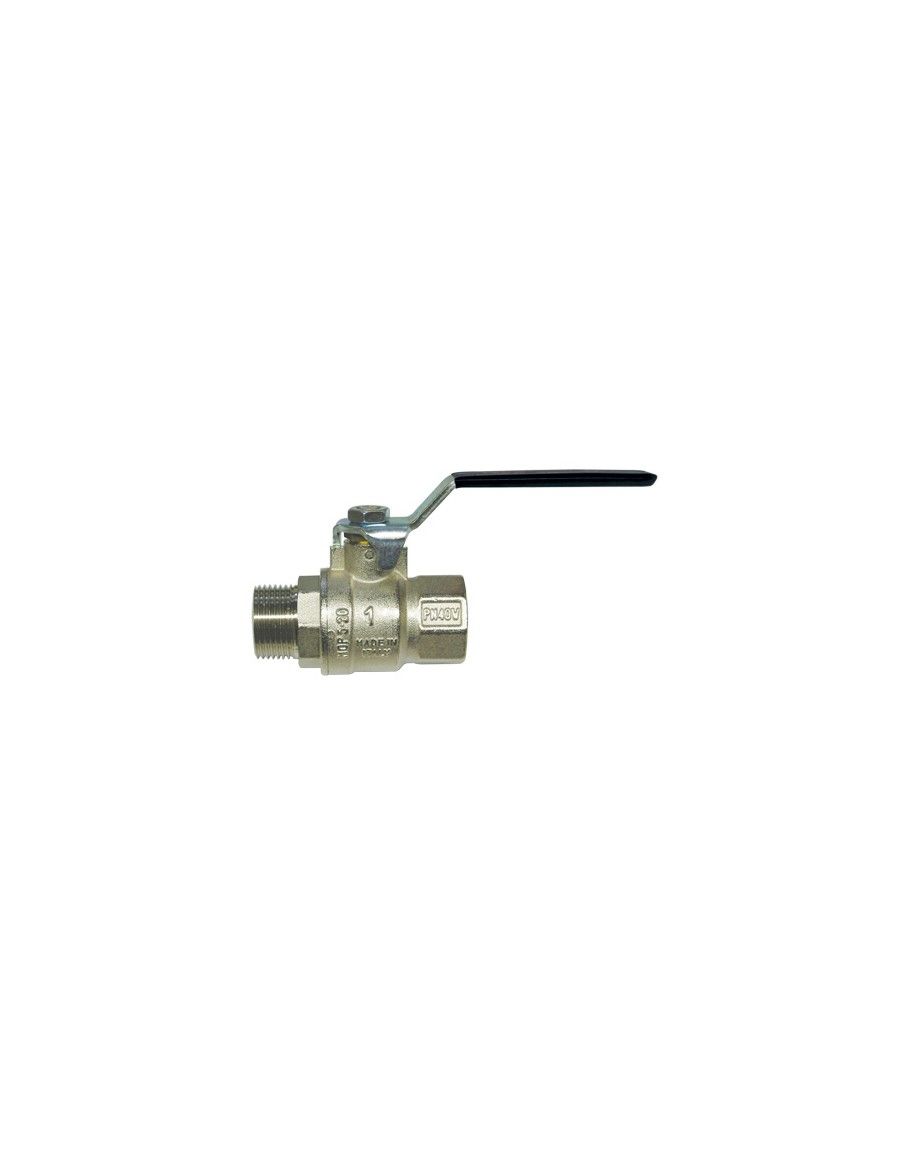

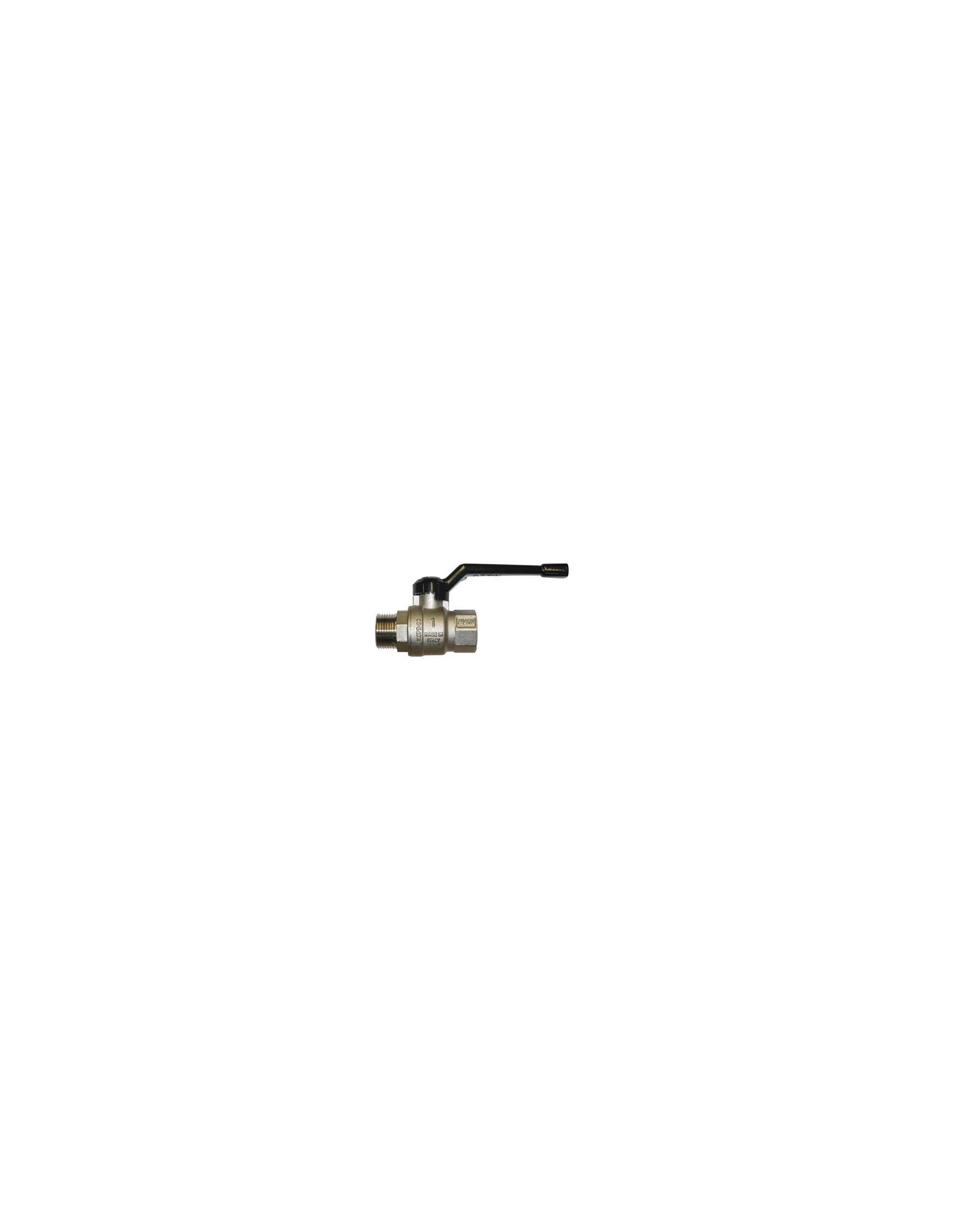

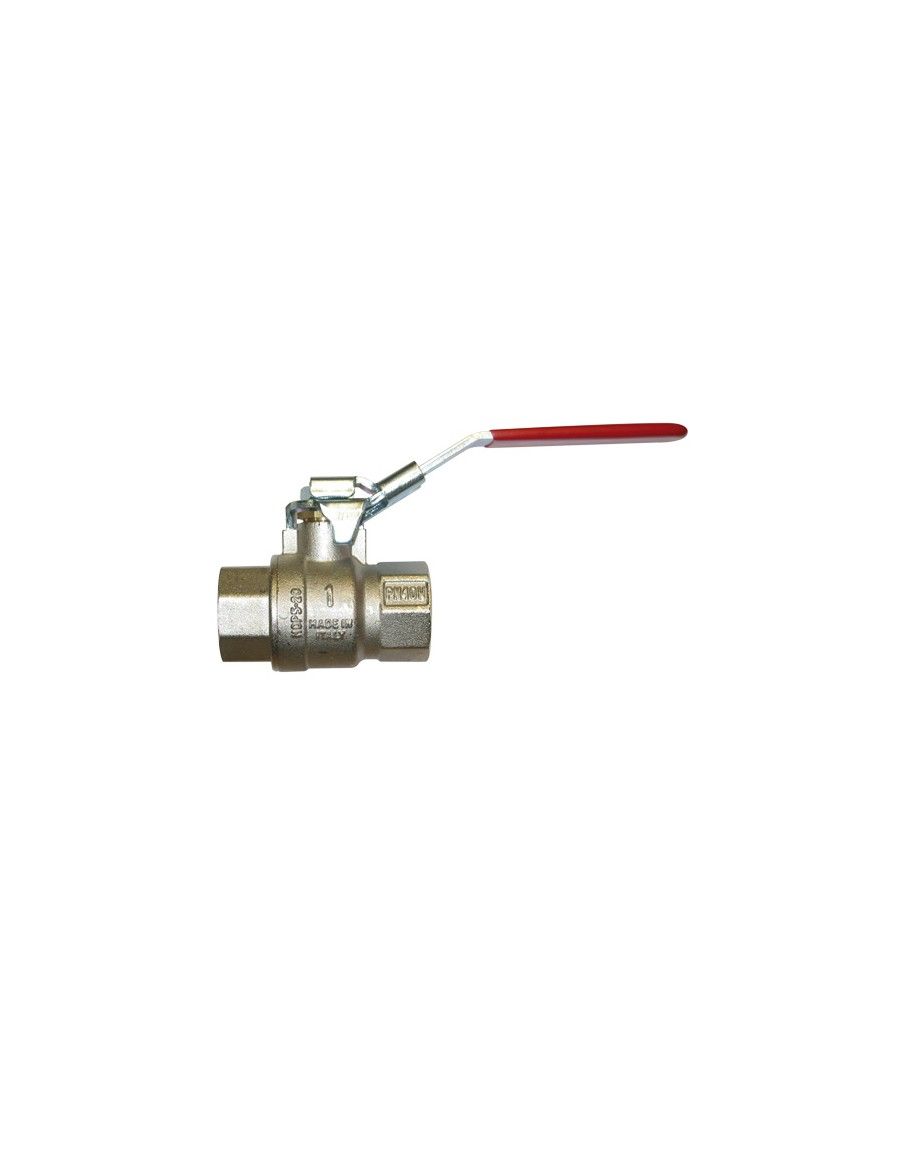

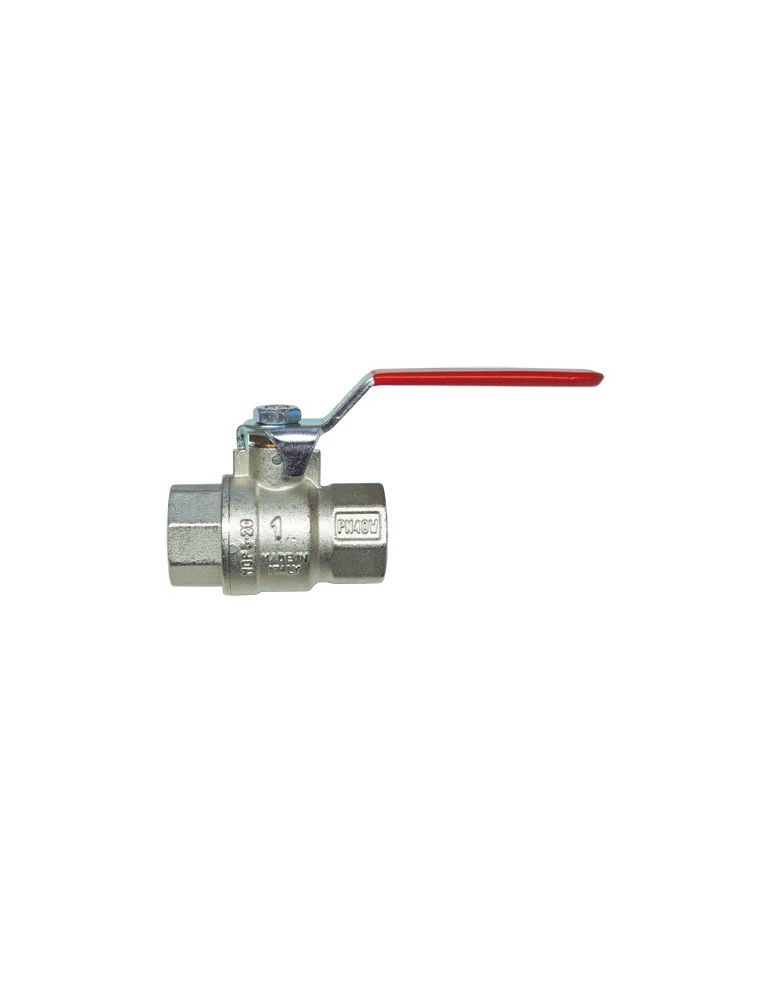

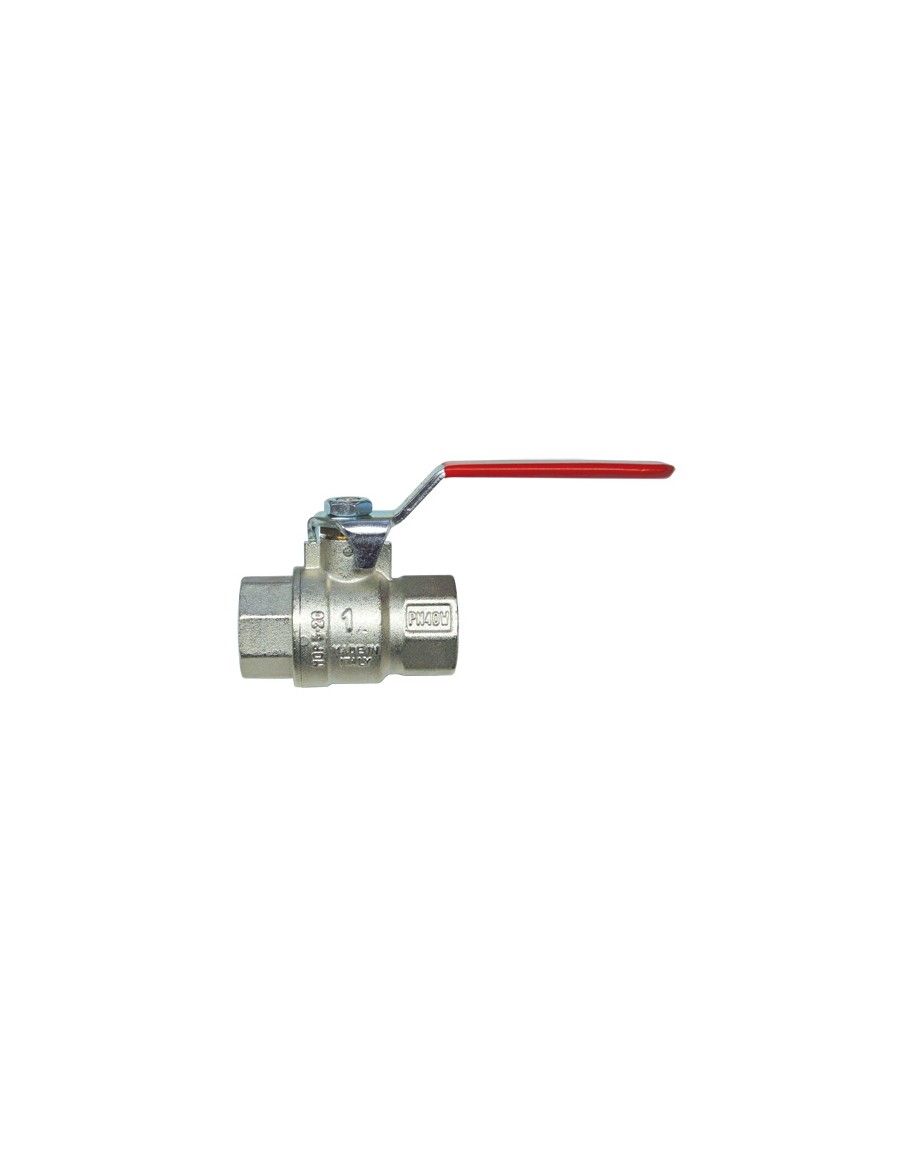

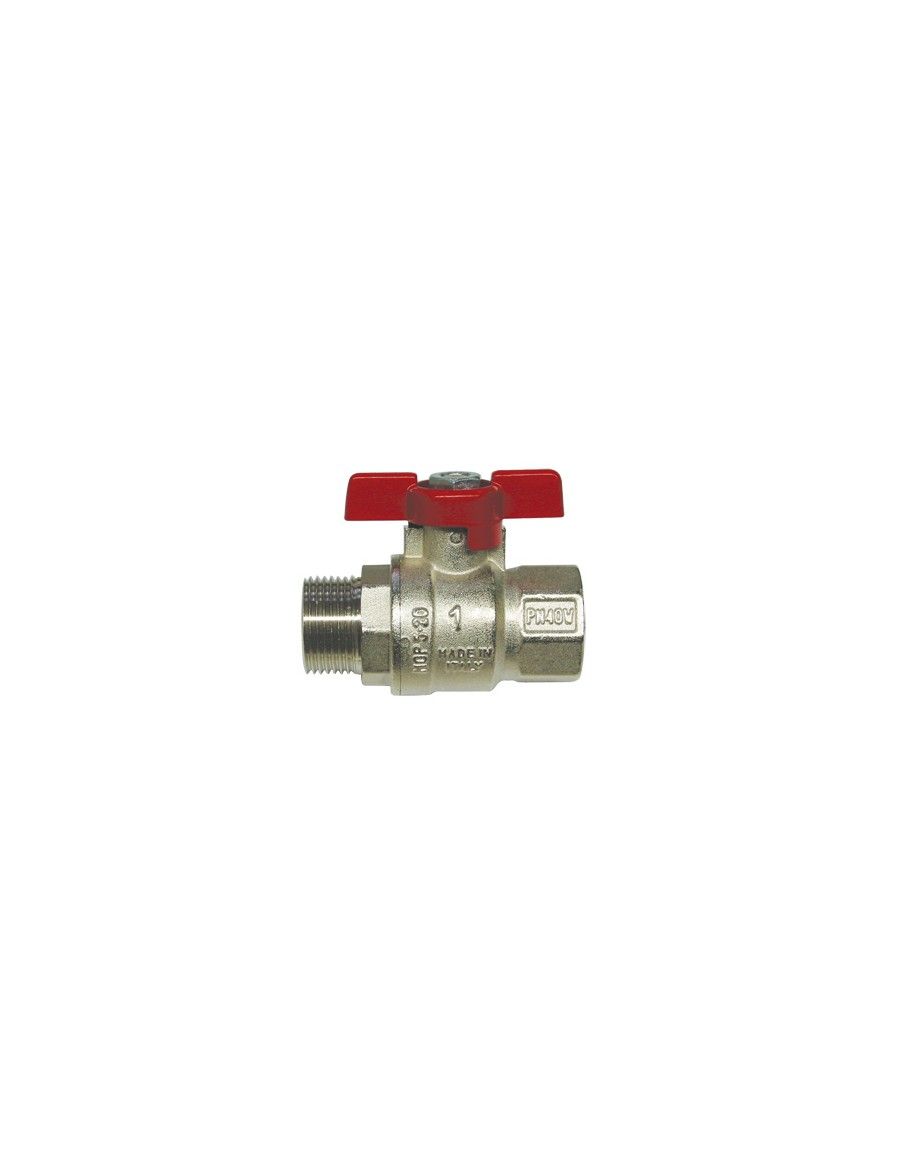

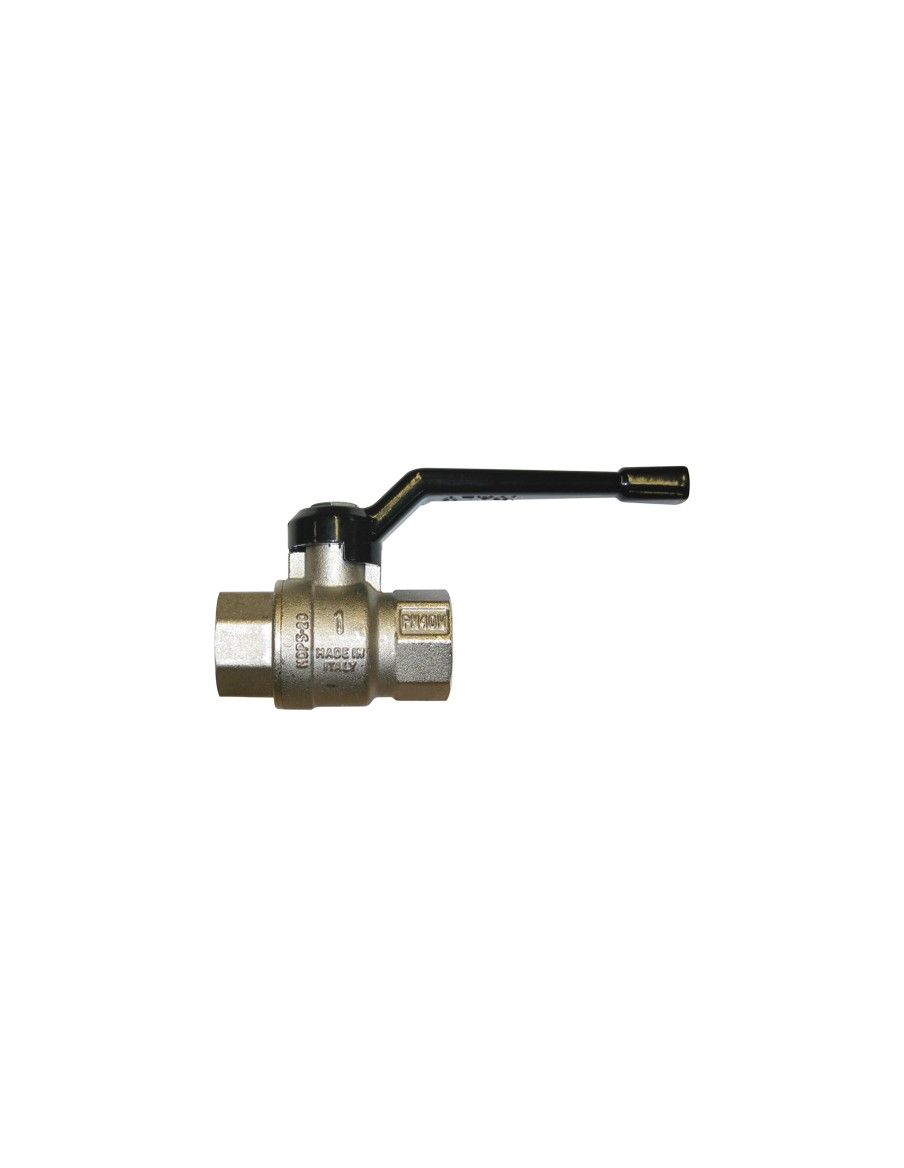

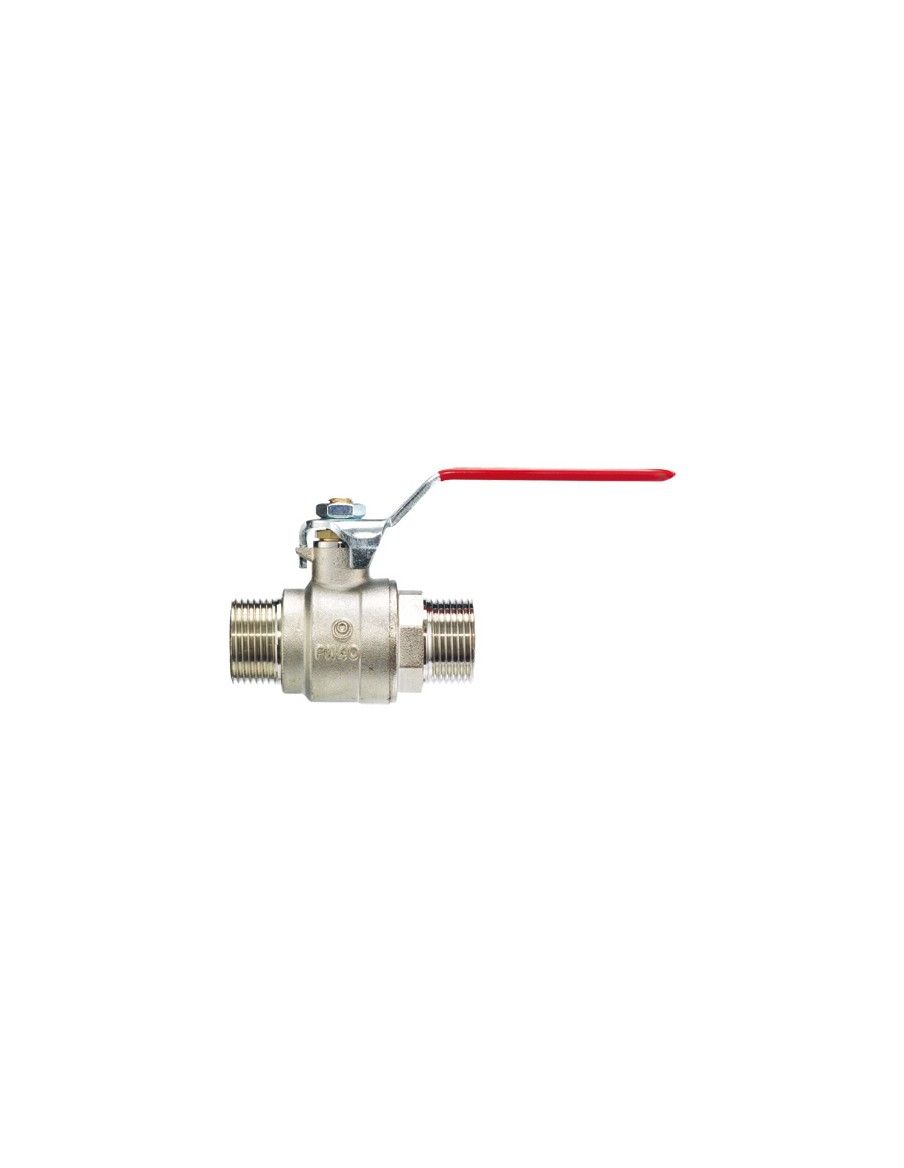

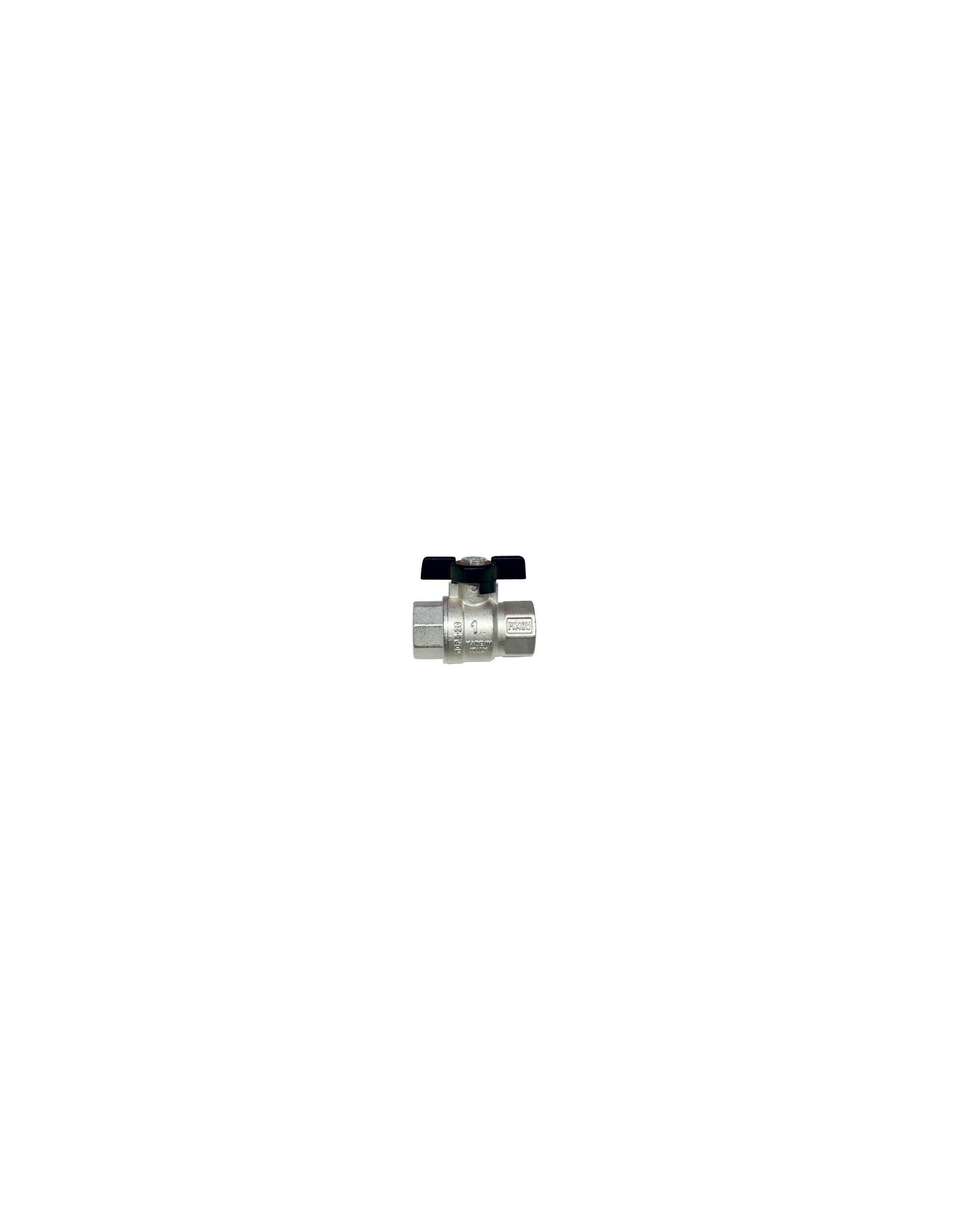

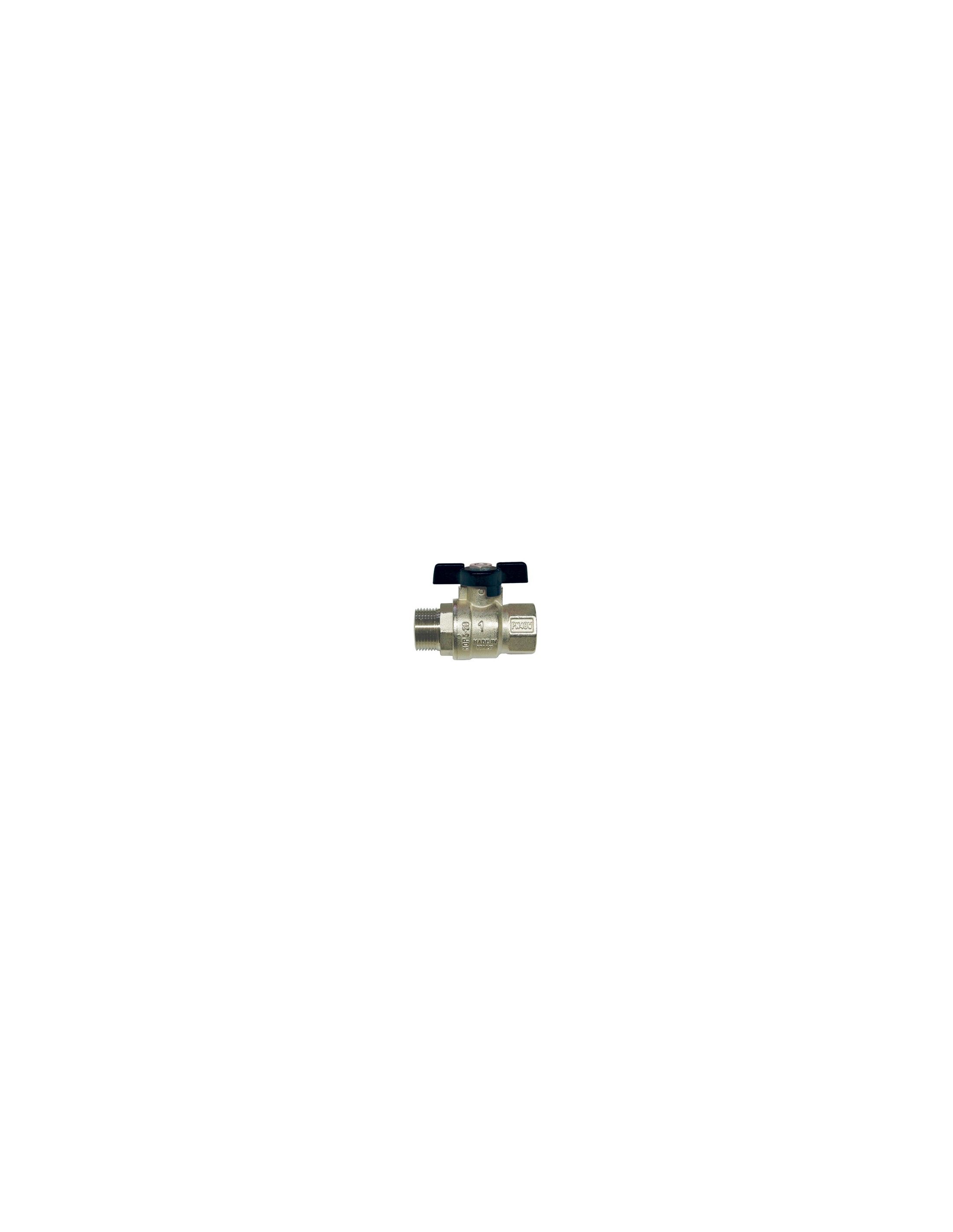

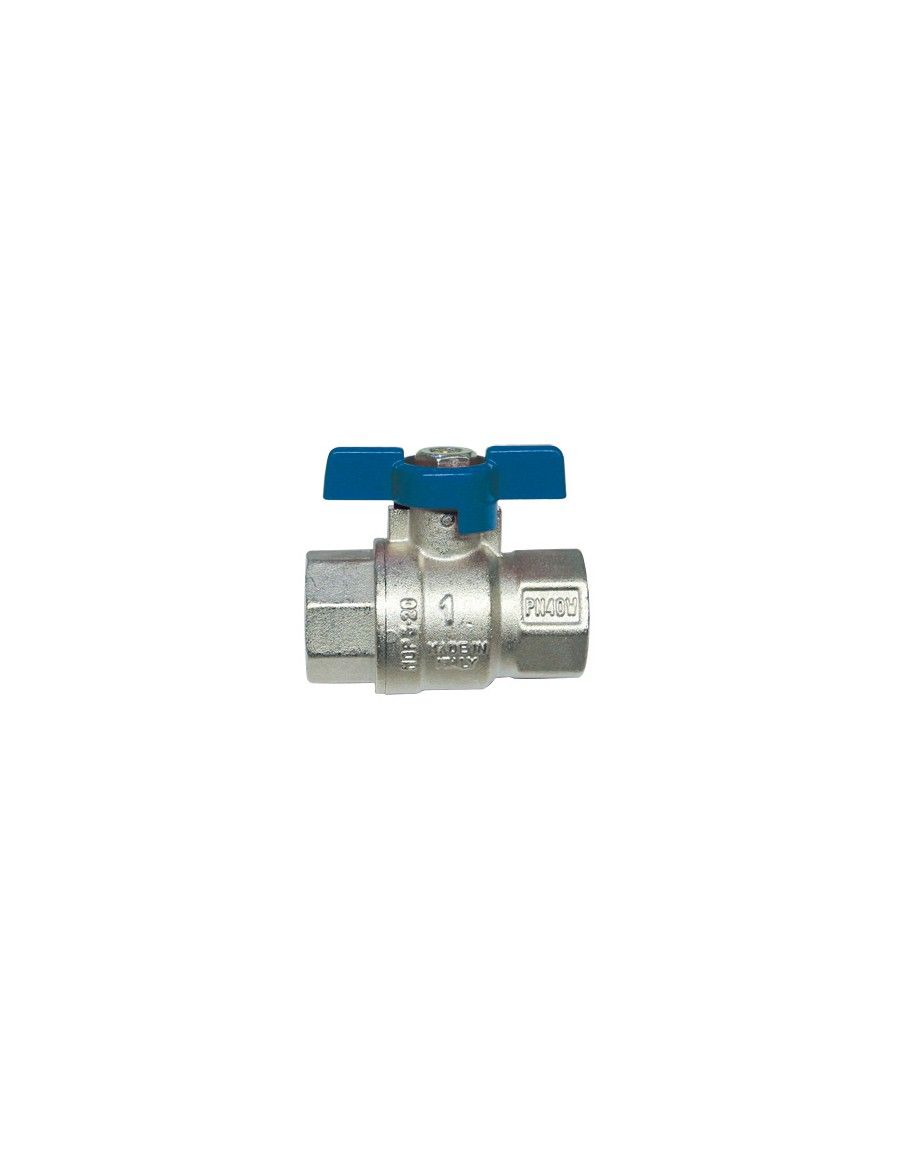

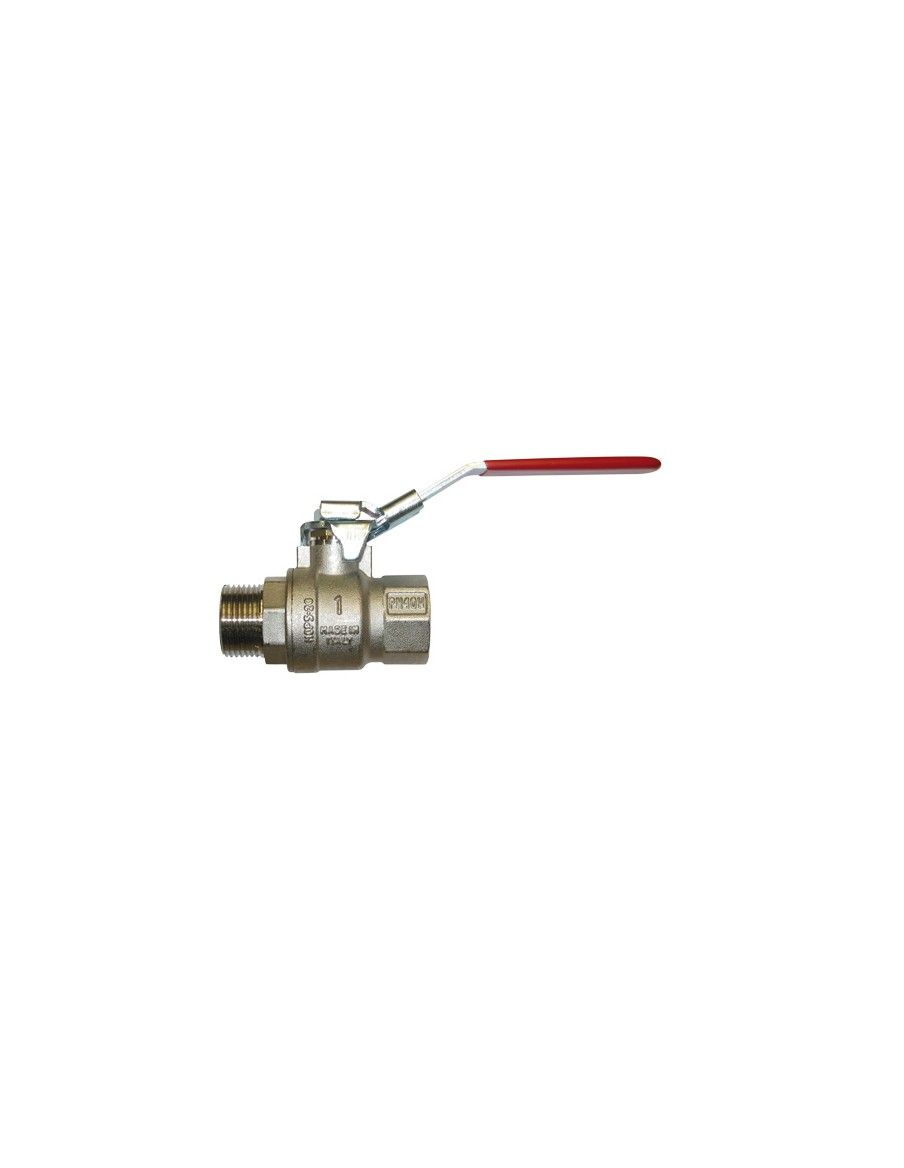

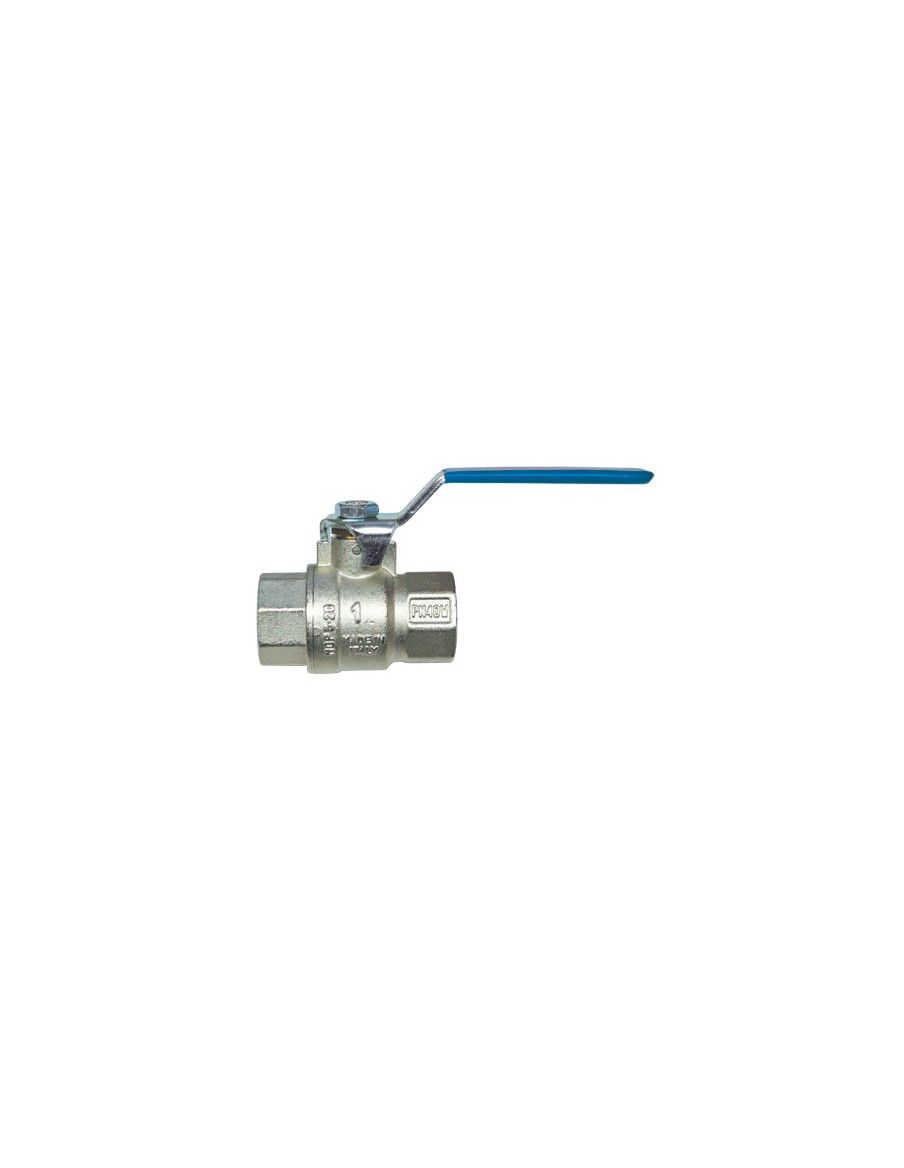

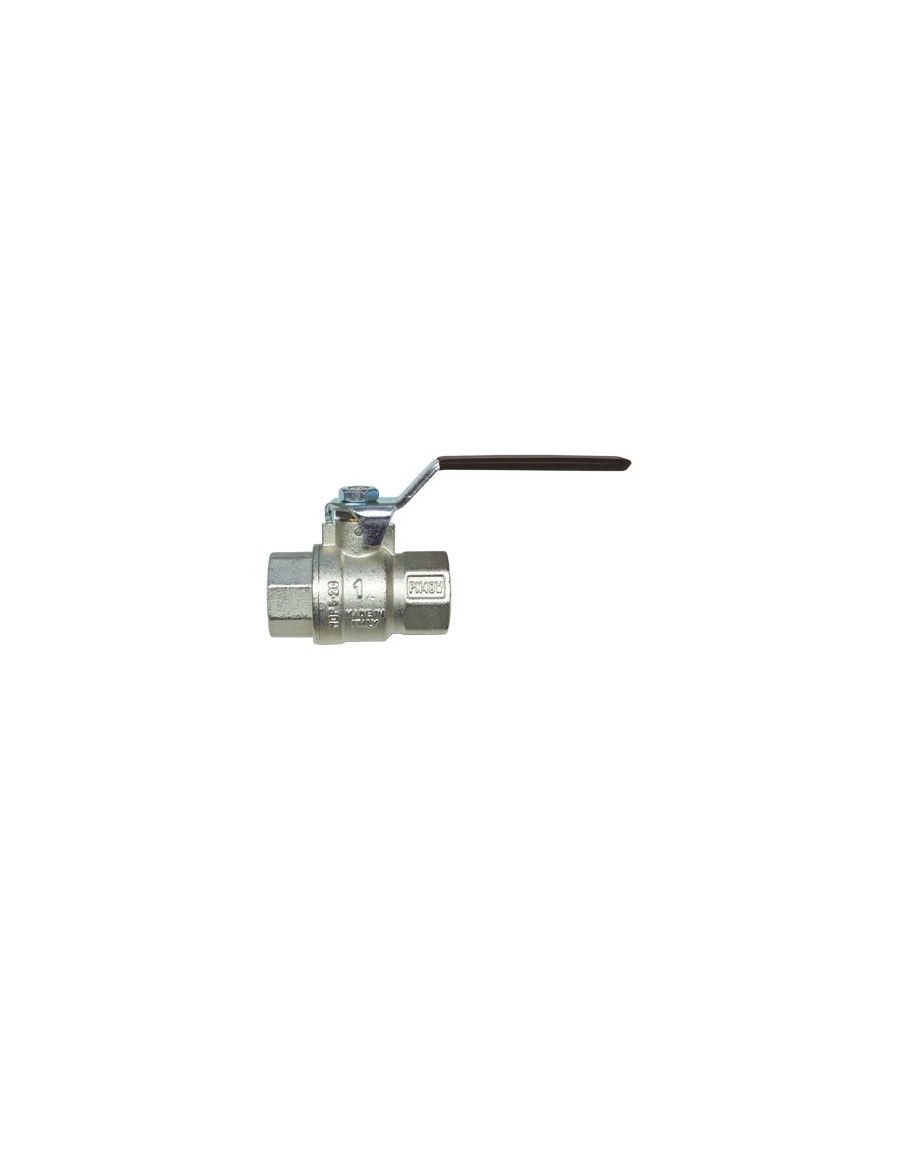

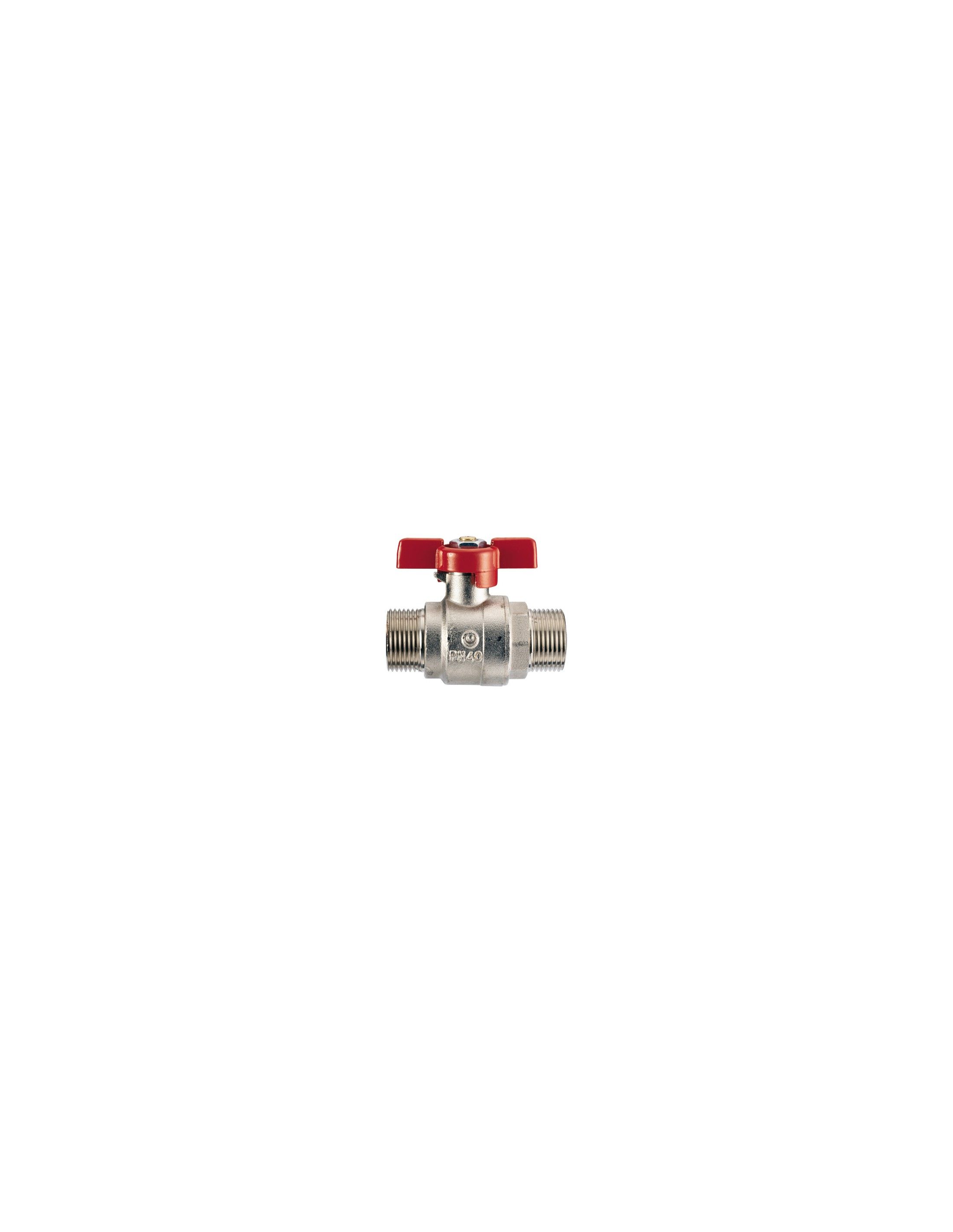

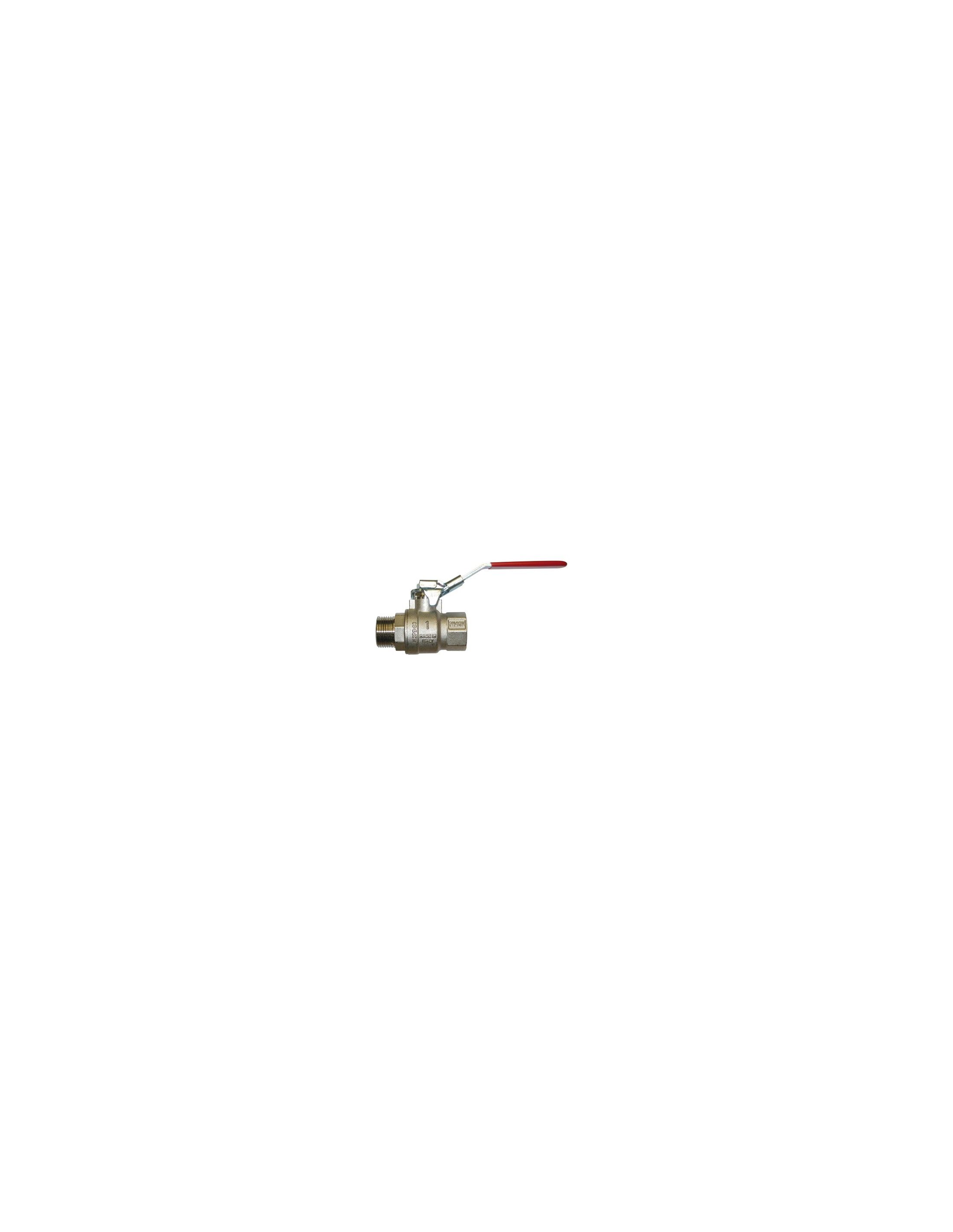

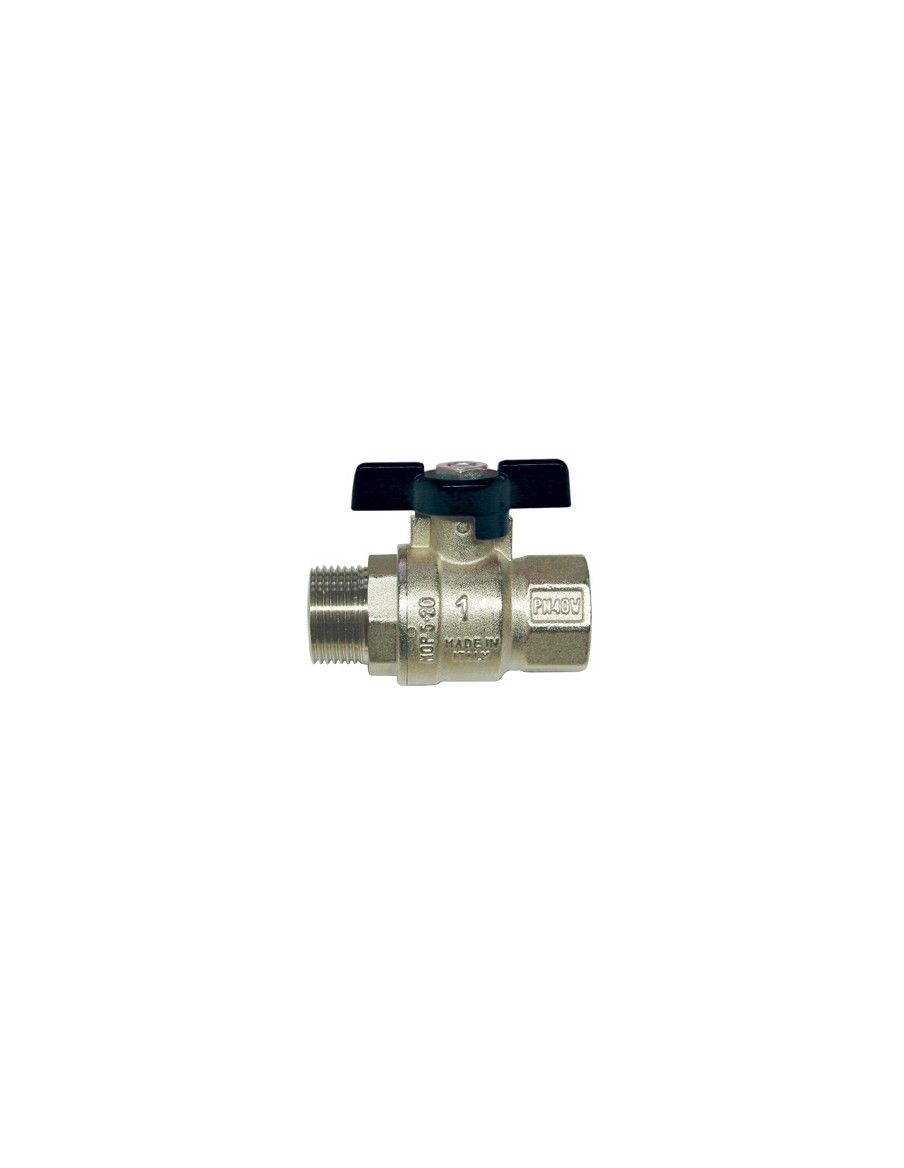

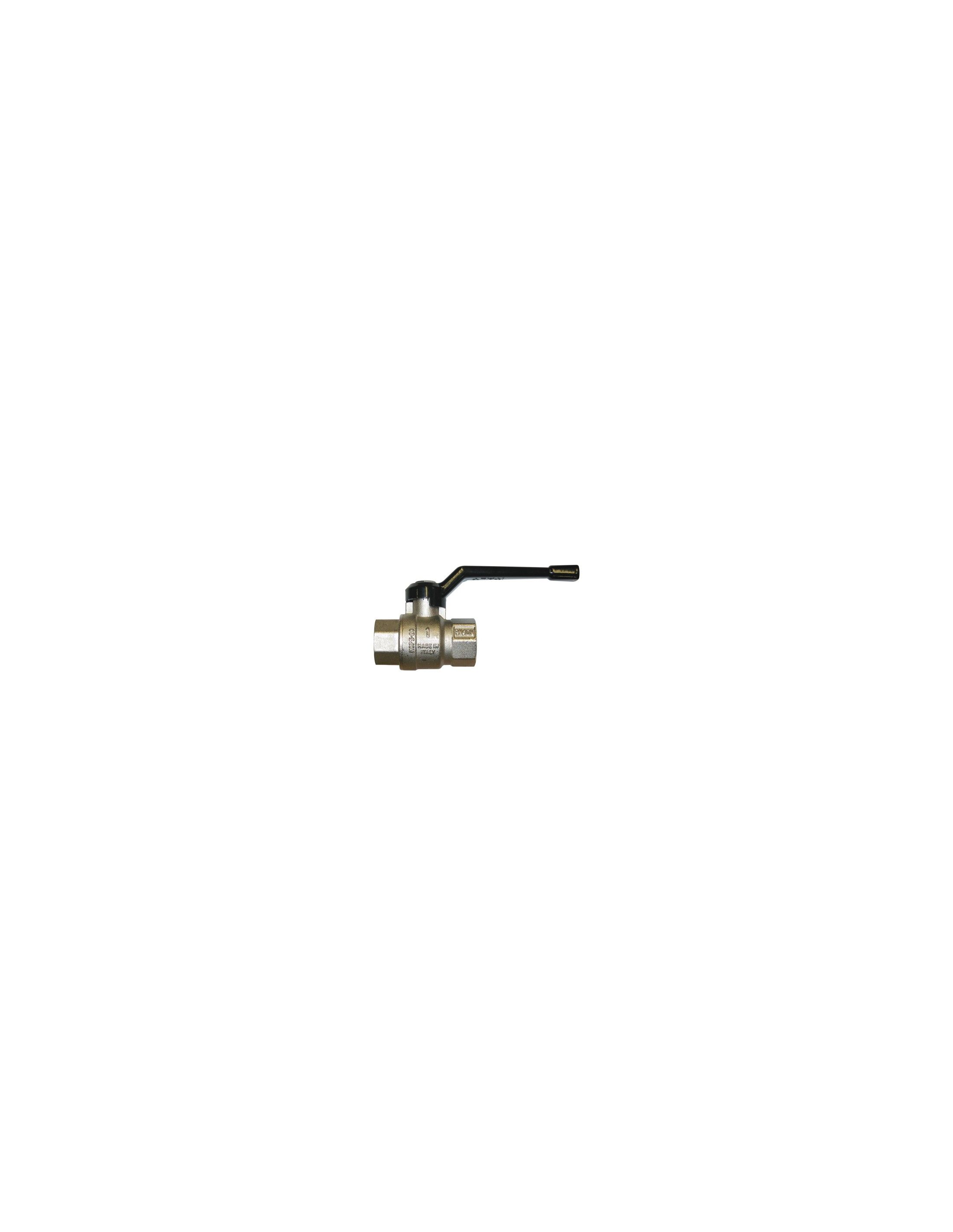

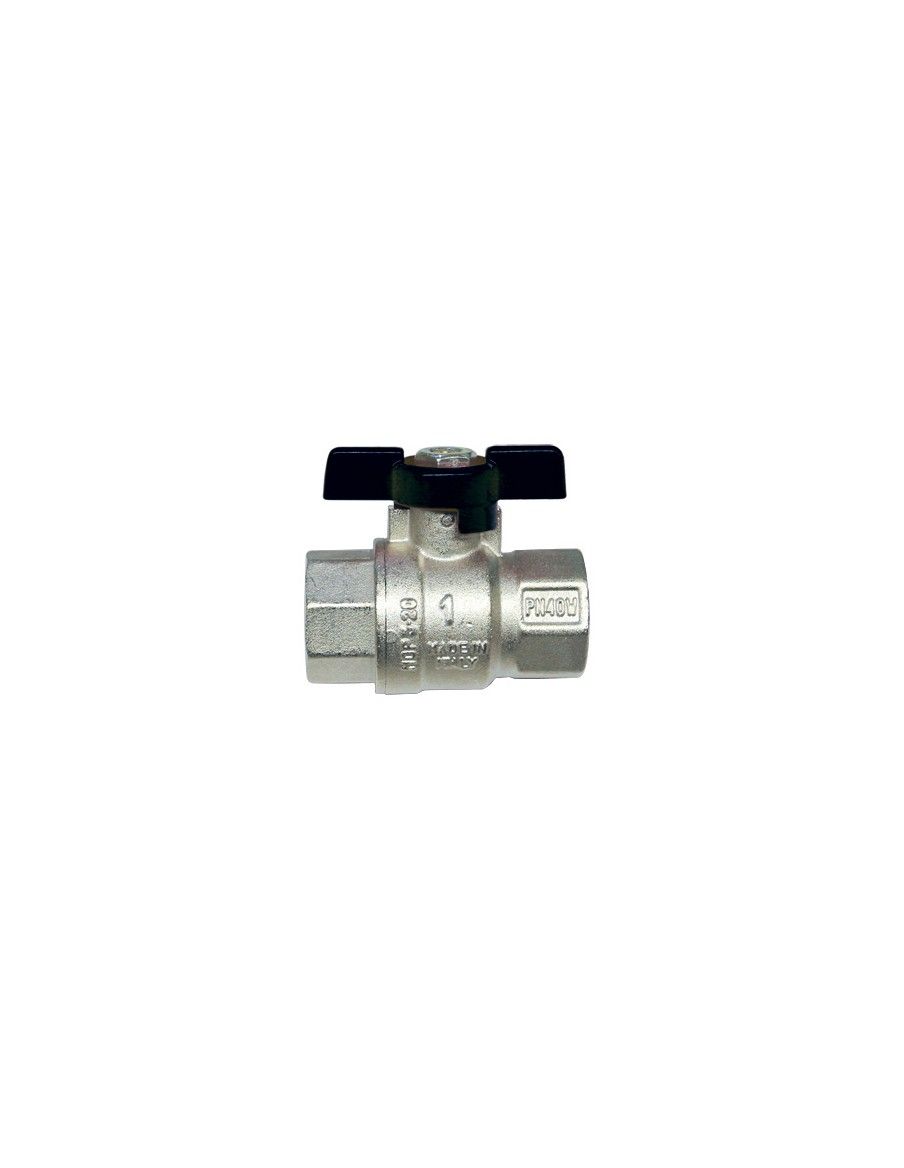

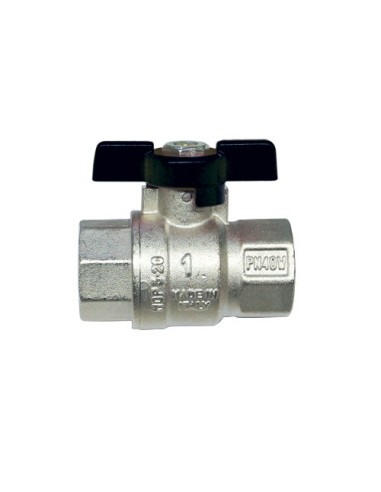

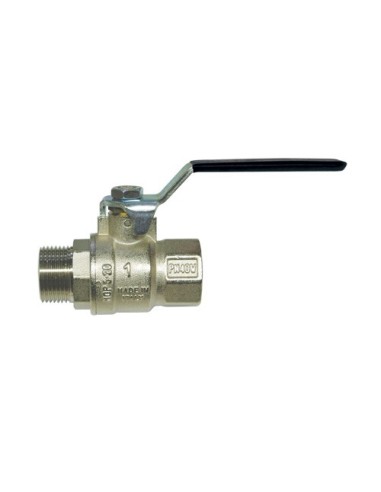

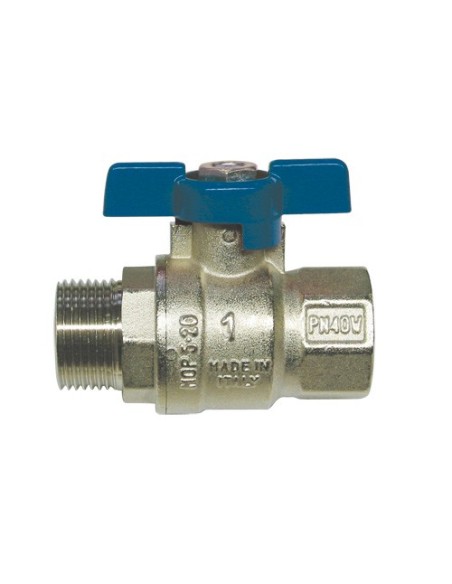

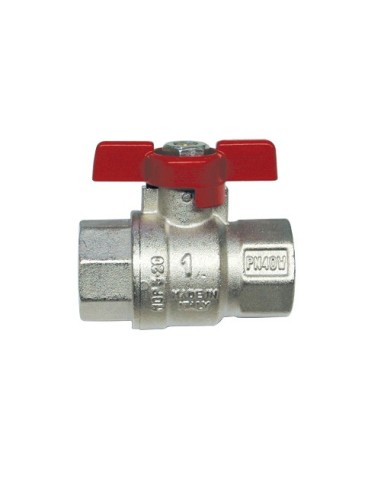

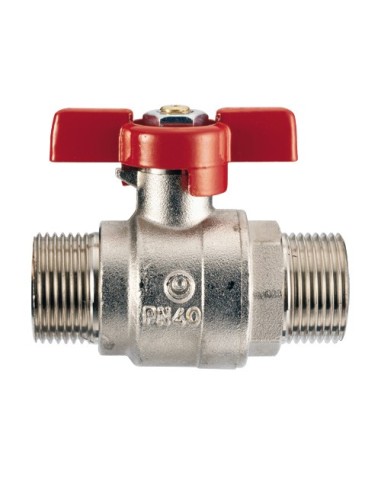

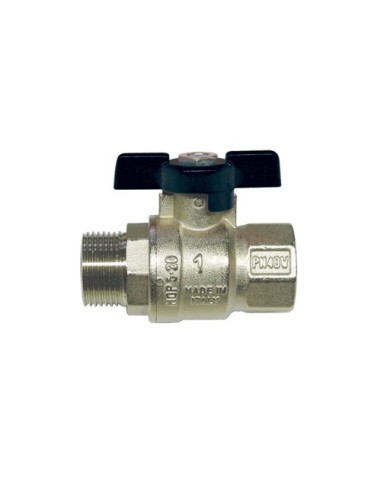

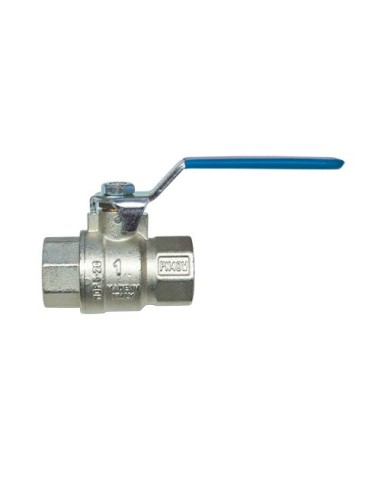

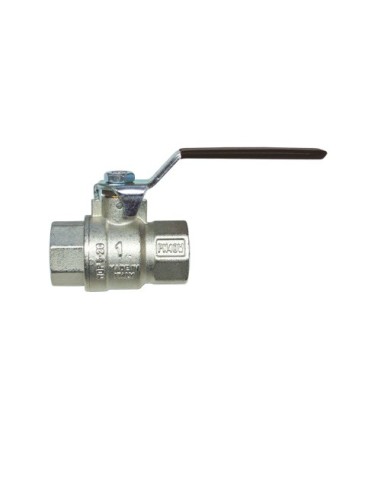

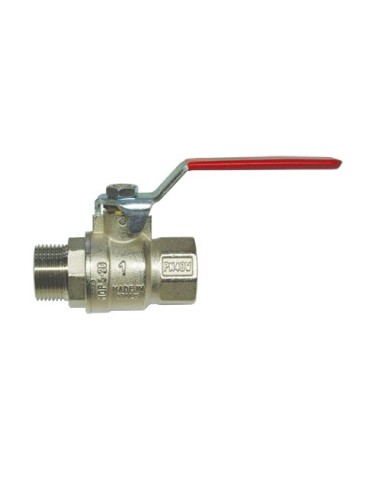

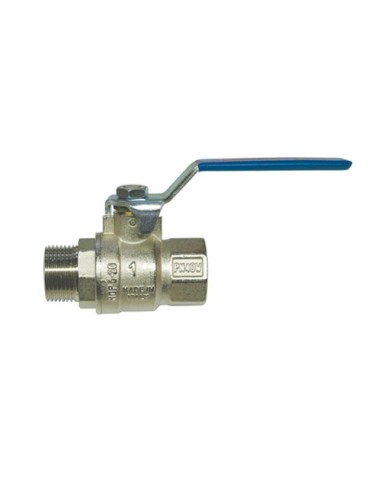

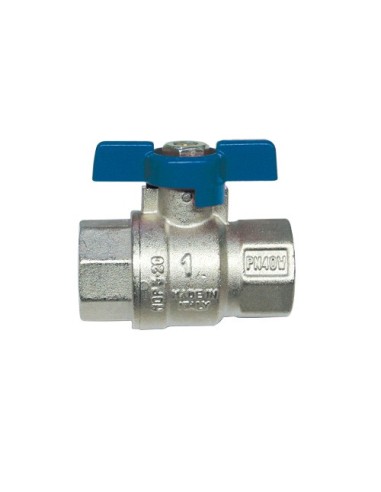

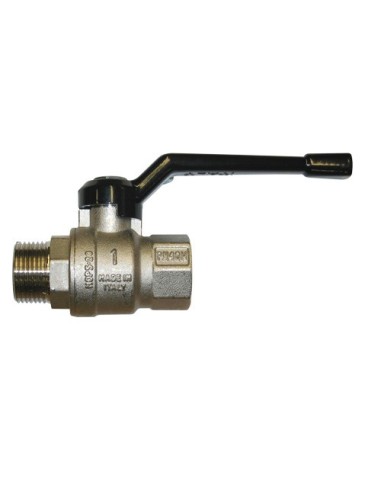

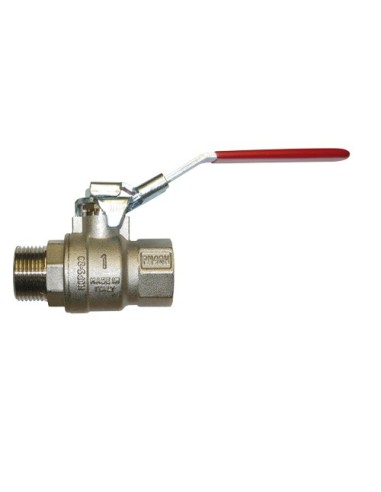

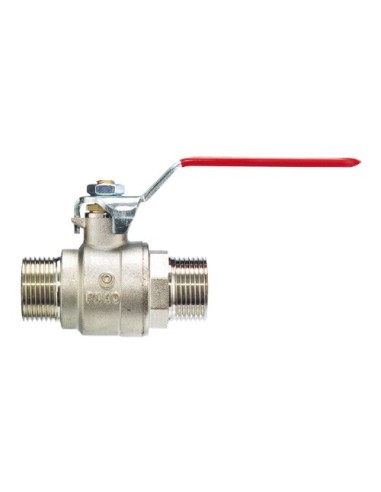

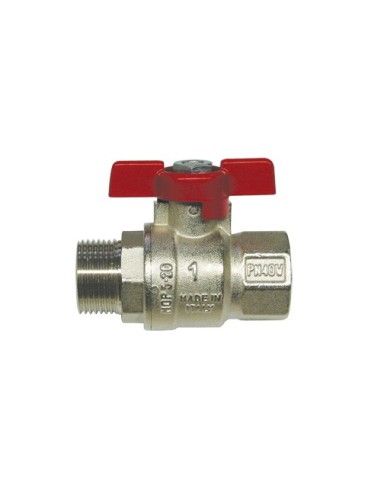

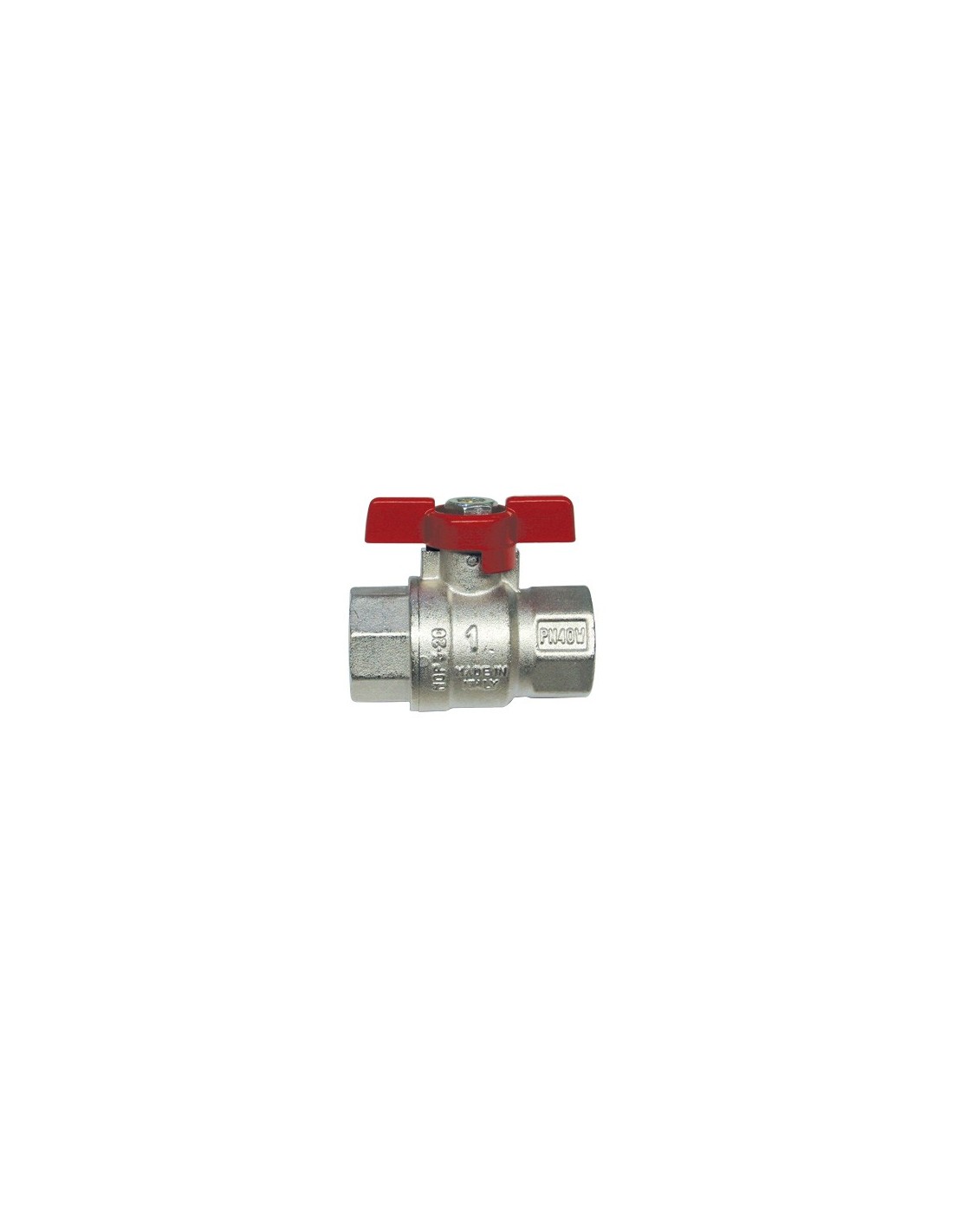

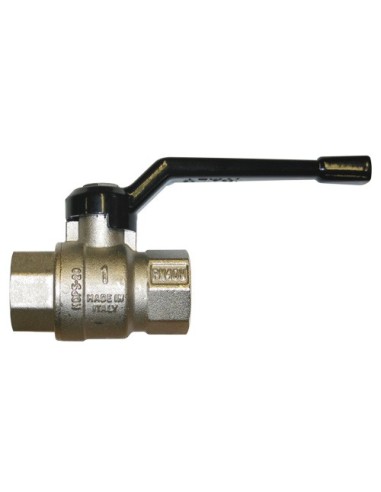

The Ball Valve series 45/46/47/52 by ICP Valves features a full bore design with various thread end configurations: F/F (IVR 45), M/F (IVR 46), M/M (IVR 47), and F/F (IVR 52). These valves are suitable for handling Class 1 dangerous liquids (non-gaseous) in compliance with the PED Directive 2014/68/EU, as well as for use in hydrothermal systems and compressed air applications.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • Brass CW 617N
Pressure Rating (Options)
  • PN 25
  • PN 32
  • PN 50
Seat (Options)
  • PTFE

Datasheet and documents

Description

Full bore ball valve. F/F (IVR 45) - M/F (IVR 46) - M/M (IVR 47) - F/F (IVR 52) thread ends. Applications: Class 1 dangerous liquids (non-gaseous) – according to the PED Directive 2014/68/EU - , hydrothermal systems, pressed air.
