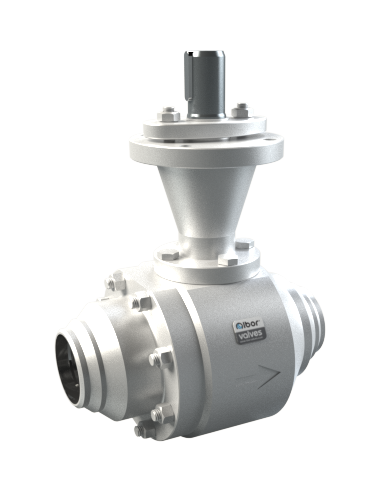

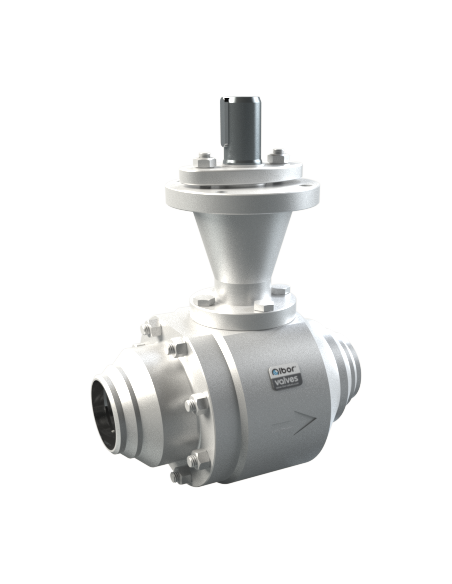

The Ball Valve - 32005 by Ibor Valves is designed with a self-relieving seat for cavity relief and is bidirectional, ensuring efficient flow control. It features a stem sealing injector and a locking device for enhanced security and reliability. Additional components include a drain plug, nipple & needle, and options for overlay on the seat area or all wetted parts, as well as a heating jacket for temperature control. The valve offers versatile connection options with flanged ends compliant with ASME B16.5, GOST 12815-80, and EN 1092.1 standards, and butt weld ends according to ASME B16.25. Integral nipples are also available for specific applications.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Bidirecctional

Stem

  • Stem sealing injector
  • Locking device

Others

  • Drain plug
  • Nipple & Needle
  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Butt Weld End: ASME B16.25

**integral nipples and available

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
