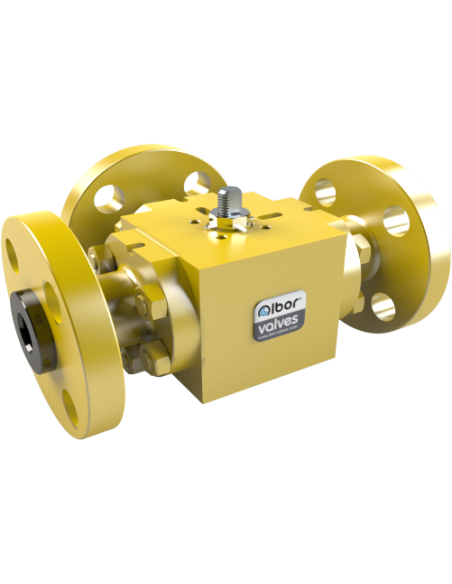

The Ball Valve - 24000 by Ibor Valves is a versatile and robust valve designed for various industrial applications. It features a stem or bonnet extension and is engineered to minimize fugitive emissions, ensuring environmental compliance. The valve includes a locking device for enhanced security. Additional features include a drain plug, an overlay on the seat area or all wetted parts for increased durability, and an optional heating or cooling jacket for temperature control. The valve offers multiple connection options, including flanged ends (ASME B16.5 / GOST 12815-80 / EN 1092.1), socket weld ends (ASME B16.11), butt weld ends (ASME B16.25), and threaded ends (NPT: ASME B1.20.1, BSPP or BSPT: BS21), with integral nipples available for certain configurations.

Description

Stem

  • Stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts
  • Heating or cooling jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: Manufacture

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
