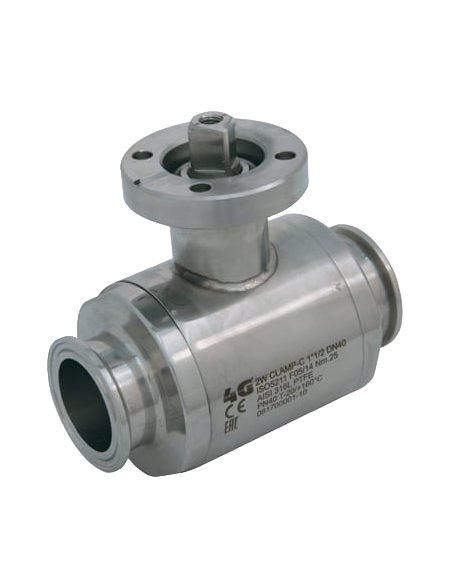

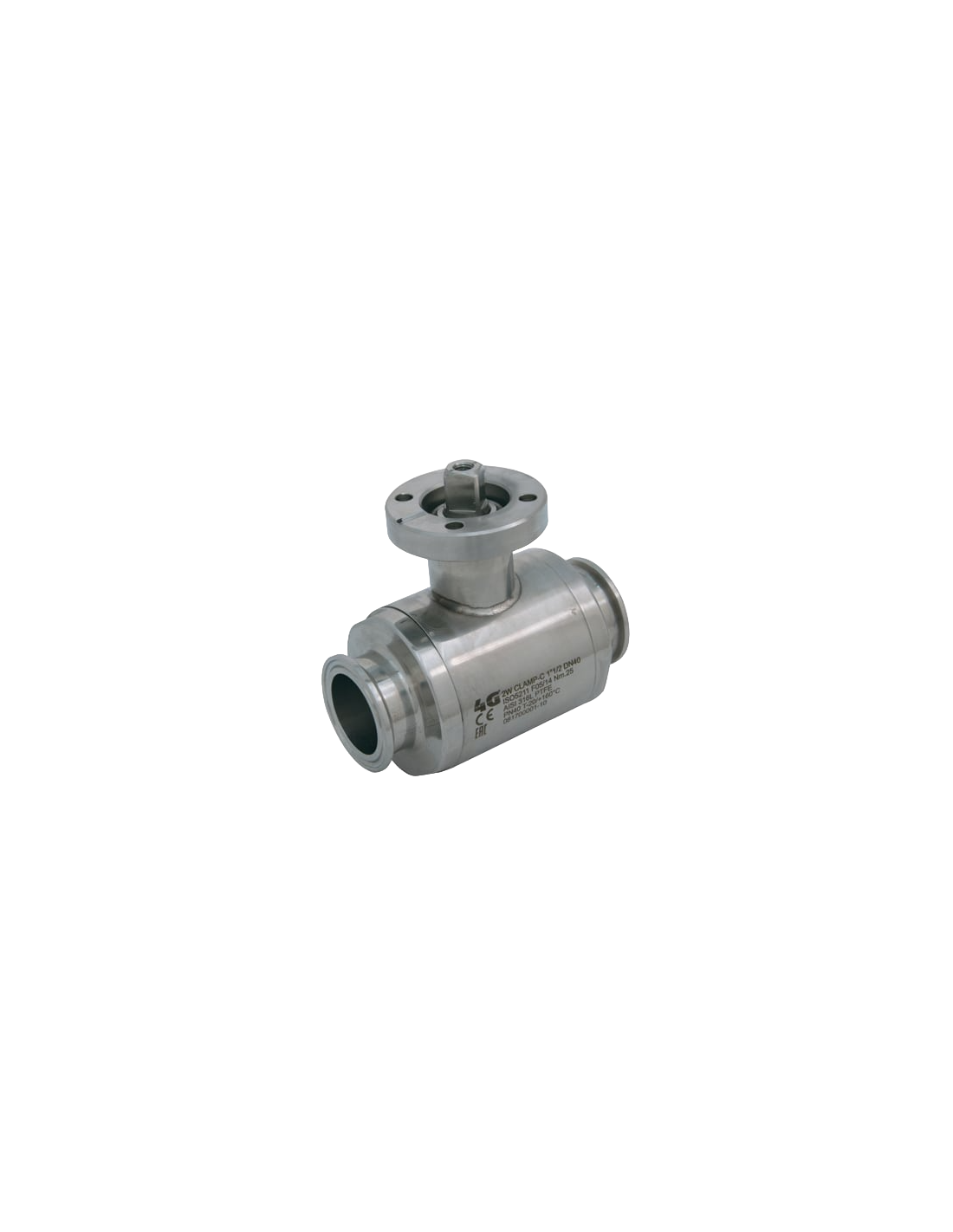

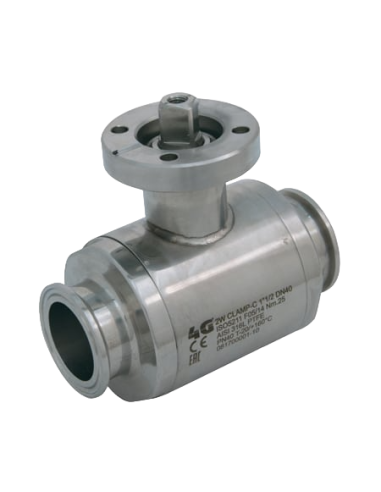

The Ball Valve - 133030 | 4G Ghidini is a two-way "Integral Seal" ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator drive and offers versatile connection options with CLAMP norms suitable for various tube standards (BS/OD, DIN 11850, ISO 1127). The valve supports both full and reduced flow and is constructed from durable Aisi 316L (1.4404) stainless steel. Available in sizes ranging from 1/2” to 4” (DN10 to DN100), it operates within a temperature range of -20°C to +160°C. The valve includes virgin P.T.F.E. seals, a polished outer finish, and screws for actuator mounting. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass for extended temperature tolerance up to +170°C.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
