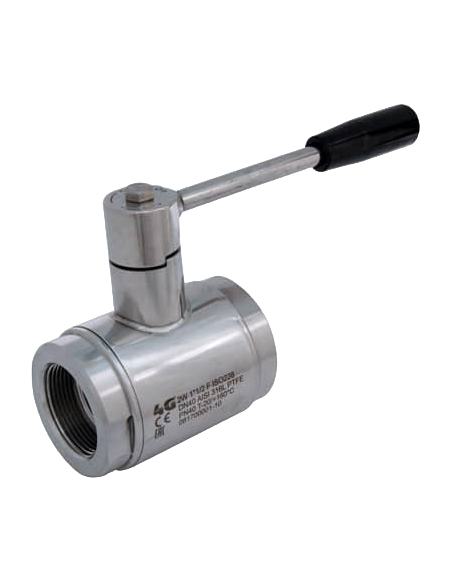

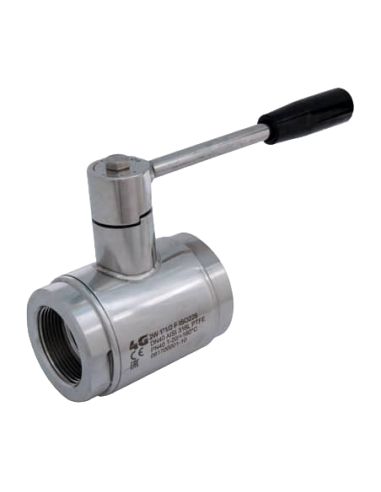

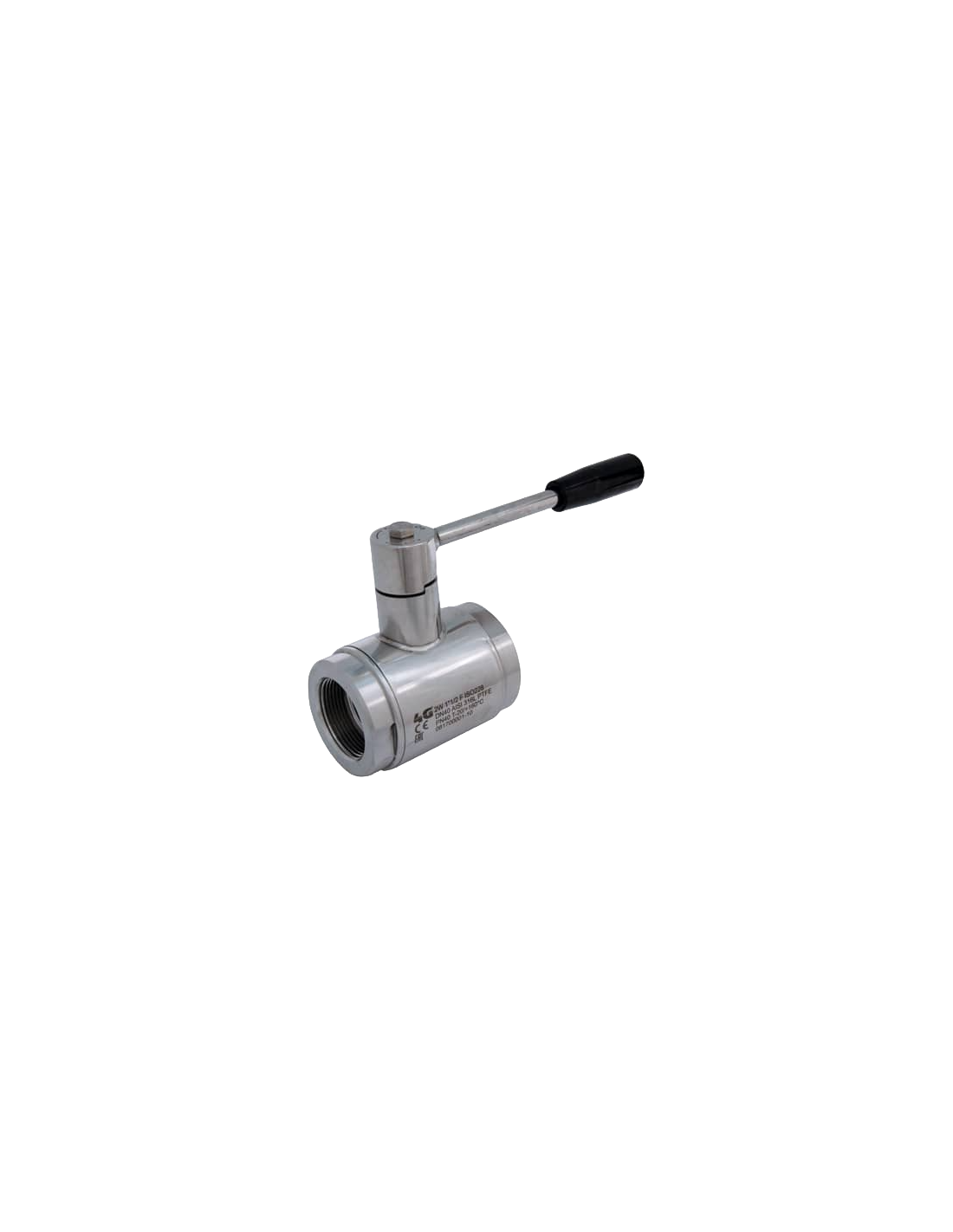

The Ball Valve INTEGRAL SEALS - ISO 228 F/F - 1301 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an inox lever for operation and connects via ISO 228 female/female threading. The valve offers full flow and is constructed from durable Aisi 316L (1.4404) stainless steel. Available in sizes ranging from 1/4” to 4”, it is equipped with virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +160°C. The valve has a polished outer finish and optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass for higher temperature resistance up to 170°C. It also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
TWO-way ball valve “Integral Seal”
Drive: Inox lever
Flow: Full
Material: Aisi 316L (1.4404)
Measure:
from 1/4” to 4”
from 1” to 4”
Seals: Virgin P.T.F.E.
Operating temperature: -20°C+160°C
Outer finish: Polished
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
