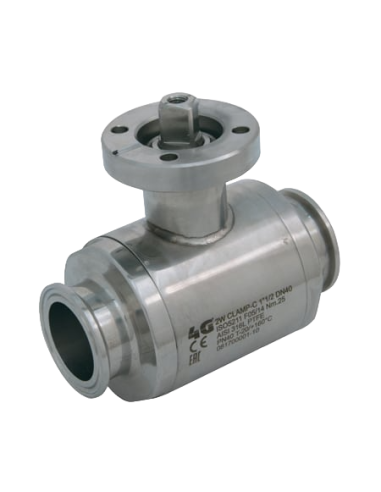

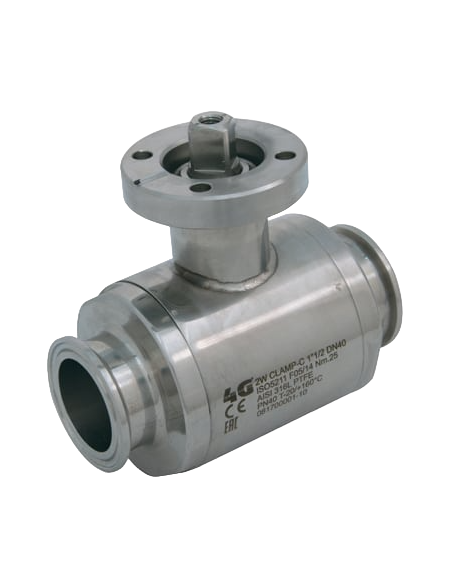

The Ball Valve - 103030 | 4G Ghidini is a versatile two-way ball valve designed for efficient fluid control. It features an ISO 5211 – DIN 3337 flange for actuator drive and offers multiple clamp connections compliant with DIN 32676 standards for various tube norms, including BS/OD, DIN 11850, and ISO 1127. The valve supports both full and reduced flow and is constructed from durable Aisi 316L (1.4404) stainless steel. Available in sizes ranging from 1/2” to 4” and DN10 to DN100, it operates effectively within a temperature range of -20°C to +170°C. The valve includes modified virgin P.T.F.E. seals and comes with polished outer finish and screws for actuator mounting. Optional features include an antistatic device with ATEX certification and various seal materials for different temperature requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)

  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850

  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
